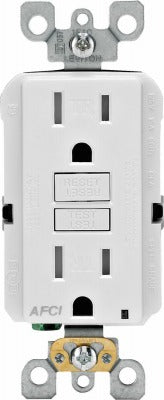

Leviton Mfg Co R42-AFTR1-0KW Afci Outlet Receptacle 15 Amp

Product Description

The LEVITON MFG CO R42-AFTR1-0KW is a 15-amp SmartLockPro tamper-resistant branch AFCI receptacle designed to protect against electrical fires caused by arc faults in branch circuit wiring. It detects a wide range of potentially hazardous arc faults, including damage in branch circuit wiring and extensions to branches, then interrupts power to prevent ignition. The polycarbonate body is rated at 1 horsepower and includes monochromatic test and reset buttons for straightforward field verification. This unit ships in a package of three, making it suited for multi-outlet rough-in work.

This receptacle is intended for residential and light commercial branch circuit installations where AFCI protection is required by the National Electrical Code. It is commonly installed in bedrooms, living rooms, hallways, and other areas where arc fault protection is mandated. The tamper-resistant shutters make it compliant with NEC requirements for locations accessible to children. Back and side wiring options with screws and a self-grounding clip allow flexible installation in standard electrical boxes.

Key Features

• Branch AFCI protection detects and interrupts arc faults in branch circuit wiring and extensions
• Tamper-resistant shutters block insertion of foreign objects, meeting NEC tamper-resistant requirements
• Monochromatic test and reset buttons for in-place circuit verification
• Back and side wiring with screws for flexible installation options
• Self-grounding clip simplifies grounding to metal electrical boxes
• Polycarbonate body rated at 1 horsepower for motor load applications

Compatibility

Designed as an OEM-style replacement or new-installation AFCI receptacle for standard 15-amp branch circuits in residential and light commercial electrical systems requiring arc fault circuit interrupter protection.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code and applicable local codes. De-energize the circuit at the breaker panel and verify with a non-contact voltage tester before wiring. Connect line and load conductors only to their designated terminals to preserve AFCI functionality. Do not use this device as a substitute for a panel-mounted AFCI breaker where code requires breaker-level protection.
