Leviton Mfg Co R30-05207-S10 Flush Dryer Outlet 30A

Product Description

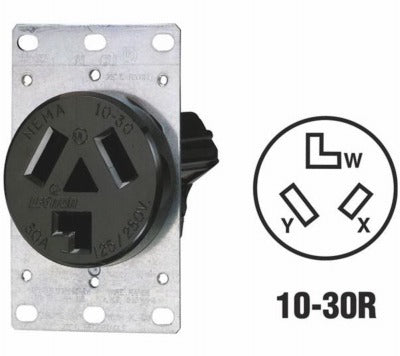

The LEVITON MFG CO R30-05207-S10 is a flush-mount dryer power outlet rated at 30 amps and 125/250 volts, configured as a NEMA 10-30R receptacle. It features a 3-pole, 3-wire, non-grounding design and accepts both aluminum and copper conductors up to 4 AWG. The outlet is built for direct installation into a standard 2-gang electrical box without requiring a mud ring, making it a clean, low-profile solution for residential laundry circuit terminations. UL listed for safety compliance. Licensed electricians handle installation as part of a dedicated dryer branch circuit.

This flush dryer outlet is suited for residential laundry room installations where a NEMA 10-30R receptacle is required to terminate a 30-amp, 240-volt dryer circuit. The 2-gang box-compatible, no-mud-ring design simplifies rough-in and finish work in new construction and retrofit applications alike. The black finish provides a neutral appearance on finished walls. Package quantity is 4 units per order.

Key Features

• NEMA 10-30R configuration: 3-pole, 3-wire, non-grounding
• Rated 30 amps at 125/250 volts for dedicated dryer circuits
• Accepts aluminum or copper conductors up to 4 AWG
• Installs directly into a 2-gang electrical box — no mud ring required
• 2.15-inch diameter flush-mount face
• UL listed

Compatibility

Designed as an OEM-style replacement or new-installation NEMA 10-30R dryer outlet for residential 30-amp, 240-volt dryer circuits requiring a 3-wire, non-grounding receptacle in a 2-gang box configuration.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off and lock out the branch circuit breaker before working on the outlet or wiring. Confirm conductor sizing meets the 30-amp circuit requirement and does not exceed 4 AWG maximum. The non-grounding NEMA 10-30R configuration is legacy-code compliant; consult local authority having jurisdiction for applicability on new installations.
