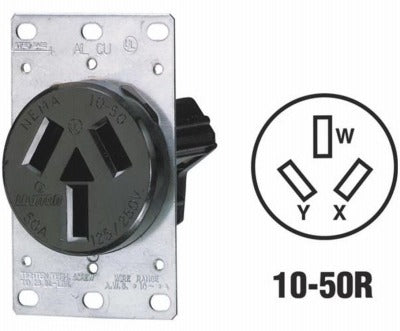

Leviton Mfg Co R30-05206-S10 Flush Range Outlet 50A

Product Description

The LEVITON MFG CO R30-05206-S10 is a flush-mount range power outlet rated at 50 amps, 125/250 volts, and configured as a 3-pole, 3-wire non-grounding receptacle conforming to NEMA 10-50R. The unit accepts both aluminum and copper conductors up to 4 AWG, making it compatible with a wide range of residential wiring installations. Its flush design seats directly into a standard 2-gang electrical box without requiring a mud ring, simplifying rough-in and reducing parts count. The receptacle measures 2.15 inches in diameter and is finished in black. It is UL listed and intended for installation by licensed electricians in residential kitchen circuits serving freestanding electric ranges.

This outlet is suited for residential applications where a dedicated 50-amp, 125/250-volt circuit supplies a freestanding electric range or similar large cooking appliance. The NEMA 10-50R configuration is a legacy 3-wire, non-grounding outlet type still found in older residential construction. Electricians replacing worn or failed range receptacles in pre-existing 3-wire installations will find this a direct-fit solution. The package quantity is 6 units, making it practical for service contractors handling multiple replacements or new construction projects requiring several outlets.

Key Features

• NEMA 10-50R configuration: 3-pole, 3-wire, non-grounding at 50 amps, 125/250 volts
• Accepts aluminum or copper conductors up to 4 AWG
• Flush design installs in a standard 2-gang electrical box with no mud ring required
• 2.15-inch diameter receptacle face in black finish
• UL listed for code-compliant installations
• Sold in a package of 6 units

Compatibility

Designed as an OEM-style replacement or new-construction receptacle for residential 50-amp, 125/250-volt electric range circuits wired to the NEMA 10-50R standard using 3-wire, non-grounding wiring methods in 2-gang electrical boxes.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit breaker supplying the range circuit before beginning any wiring work. Confirm that the existing wiring is 4 AWG or larger aluminum or copper conductors before connecting. Note that NEMA 10-50R is a non-grounding configuration; where current code requires a grounding receptacle, consult NEC requirements before replacing with this outlet type.
