Leviton Mfg Co R20-55054-P00 Surface Dryer Outlet 30A

Product Description

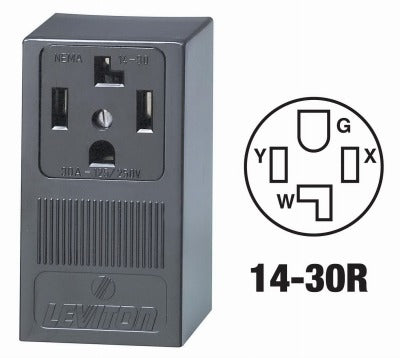

The LEVITON MFG CO R20-55054-P00 is a surface-mount dryer outlet designed for residential and light commercial laundry installations. This 3-pole, 4-wire grounding outlet operates at 30 amps and is rated for 125/250 volts, conforming to NEMA 14-30R configuration. The lay-in terminal design accepts conductors up to No. 4 gauge, and the outlet is listed for use with both copper and aluminum wiring. UL listed for safety compliance, this outlet is installed by licensed electricians following NEC requirements for dedicated laundry circuits. The black finish and 2.15-inch diameter make it a standard surface-mount fit in typical dryer hookup locations.

This outlet is suited for surface-mount installation in residential laundry rooms and similar light commercial settings where a dedicated 30-amp, 125/250-volt dryer circuit is required. The NEMA 14-30R configuration is the current standard 4-wire dryer receptacle, replacing older 3-wire NEMA 10-30 setups in compliance with modern NEC grounding requirements. It is appropriate for new construction and retrofit applications where the existing wiring includes a separate ground conductor. Package quantity is 6 units per pack.

Key Features

• 3-pole, 4-wire grounding configuration meets NEMA 14-30R standard
• Lay-in terminals accept conductors up to No. 4 gauge for easier termination
• Compatible with both copper and aluminum wiring
• Rated 30 amps at 125/250 volts for dedicated dryer circuits
• UL listed for safety assurance
• Surface-mount design with 2.15-inch diameter profile

Compatibility

Designed as an OEM-style replacement or new-installation surface dryer receptacle for NEMA 14-30R applications in residential and light commercial dryer circuits wired with copper or aluminum conductors up to No. 4 gauge.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off power at the circuit breaker and verify the circuit is de-energized with a voltage tester before beginning work. Confirm the branch circuit is a dedicated 30-amp, 4-wire circuit before connecting. Do not use this outlet to replace a 3-wire NEMA 10-30 receptacle without first verifying the circuit includes a separate equipment grounding conductor.
