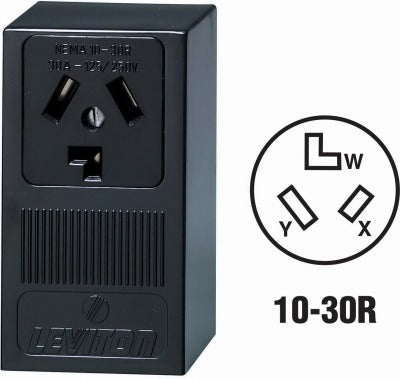

Leviton Mfg Co R20-05054-P00 Surface Dryer Outlet 30A

Product Description

The LEVITON MFG CO R20-05054-P00 is a surface-mount dryer power outlet rated at 30 amps and 125/250 volts, configured as a 3-pole, 3-wire, non-grounding receptacle in a NEMA 10-30R pattern. Finished in black with a 2.15-inch diameter face, it accepts both aluminum and copper conductors up to 4 AWG. This outlet is designed for direct installation into a standard 2-gang electrical box without the need for a mud ring, simplifying rough-in and trim-out for residential laundry circuits. It ships in a package of five units, making it practical for contractors handling multiple installations or stocking a service vehicle.

This outlet is used in residential laundry applications where a dedicated 30-amp dryer circuit terminates at a surface-mounted receptacle. It suits new construction and retrofit work where the electrical box is already in place and no extension ring is on hand. The 2-gang box compatibility and direct-mount design keep the installation straightforward. Licensed electricians handling residential service work, multi-unit housing builds, or appliance circuit installations are the primary installers of this device.

Key Features

• NEMA 10-30R configuration — standard 30-amp dryer receptacle pattern for residential laundry circuits
• Accepts aluminum or copper conductors up to 4 AWG
• Installs directly in a 2-gang electrical box — no mud ring required
• 3-pole, 3-wire, non-grounding design per legacy dryer circuit wiring
• UL listed for safety compliance
• Sold in a package of 5 units for contractor convenience

Compatibility

Designed as an OEM-style replacement or new-installation surface dryer outlet for residential 30-amp, 125/250-volt dryer circuits wired to a 2-gang electrical box.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the panel and verify zero voltage with a meter before handling any wiring. The NEMA 10-30R is a non-grounding configuration — confirm that the existing circuit wiring matches this 3-wire arrangement before installation. Do not use this outlet as a substitute for a grounding NEMA 14-30R receptacle on circuits that include an equipment ground conductor.
