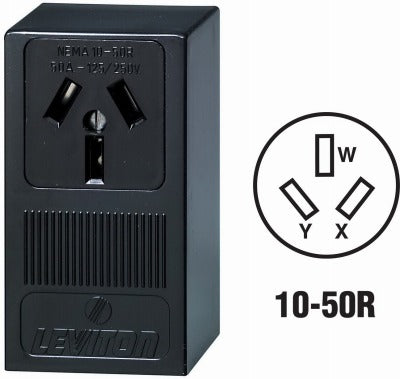

Leviton Mfg Co R20-05050-P00 Range Outlet 50A Nema 10-50R 5 Pack

Product Description

The LEVITON MFG CO R20-05050-P00 is a surface-mount range power outlet rated at 50 amps and 125/250 volts, configured as a 3-pole, 3-wire, non-grounding receptacle. It carries a NEMA 10-50R configuration and is designed to mount directly into a standard 2-gang electrical box without requiring a mud ring. The outlet accepts both aluminum and copper conductors up to 4 AWG, making it compatible with the heavy-gauge wiring typical in electric range circuits. It ships in a pack of 5 units and is UL listed. Black finish. Electricians install this outlet during new construction or service upgrades where a surface-mount range receptacle is required.

This outlet is suited for residential and light commercial electric range installations where a flush, surface-mounted connection point is needed at the appliance circuit. The 2-gang box compatibility simplifies rough-in and eliminates the need for additional box extenders or mud rings. The 4 AWG maximum conductor rating accommodates the ampacity requirements of standard 50-amp electric range branch circuits. Because this is a non-grounding configuration, installations must comply with applicable NEC provisions governing existing ungrounded circuits or new work where a 10-50R outlet is specifically required.

Key Features

• NEMA 10-50R configuration — 3-pole, 3-wire, non-grounding, 50A/125V/250V
• Accepts aluminum or copper conductors up to 4 AWG
• Installs directly in a standard 2-gang electrical box — no mud ring required
• 2.15-inch diameter receptacle face
• UL listed for safety compliance
• Sold in a pack of 5 units

Compatibility

Designed as an OEM-style replacement or new-installation surface range outlet for electric range branch circuits requiring a NEMA 10-50R receptacle in a 2-gang box configuration.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the panel and verify absence of voltage before beginning work. Torque all terminal connections per the manufacturer markings on the device. Non-grounding configurations must comply with NEC requirements for the specific installation scenario.
