Leviton Mfg Co R10-05374-S00 Flush Welder Outlet 50A 250V

Product Description

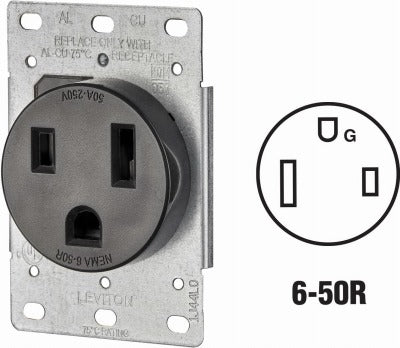

The LEVITON MFG CO R10-05374-S00 is a flush-mount grounding outlet rated at 50 amps and 250 volts, built specifically for welder applications. Configured as a 2-pole, 3-wire device with a NEMA 6-50R receptacle configuration, it accepts both aluminum and copper conductors up to a maximum of 4 AWG. The outlet measures 2.15 inches in diameter and is finished in black. UL listing confirms it meets the safety and performance requirements expected in commercial and light industrial electrical installations. Licensed electricians are the intended installer for this type of high-amperage receptacle.

This outlet is designed for flush-wall installation in settings where electric welding equipment is operated. Common applications include fabrication shops, auto body facilities, agricultural buildings, and commercial garages where 250-volt welding circuits are permanently wired. The NEMA 6-50R configuration is the standard receptacle interface for 50-amp welder plugs, making this a direct-fit solution for dedicated welder circuits in both new construction and retrofit projects.

Key Features

• NEMA 6-50R configuration rated at 50 amps and 250 volts for dedicated welder circuits
• 2-pole, 3-wire grounding design for safe high-current operation
• Accepts aluminum or copper conductors up to 4 AWG maximum
• Flush-mount profile for clean, in-wall installation
• UL listed for compliance with electrical safety standards
• Black finish, 2.15 inches in diameter

Compatibility

Designed as a standard NEMA 6-50R flush welder outlet compatible with 50-amp, 250-volt welder plugs and dedicated branch circuits wired with conductors up to 4 AWG aluminum or copper.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Shut off and lock out the circuit breaker serving the welder branch circuit before beginning any wiring work. Verify that the branch circuit conductor gauge and breaker rating are matched to the 50-amp, 250-volt rating of this outlet before energizing. Do not connect conductors larger than 4 AWG to the terminal lugs.
