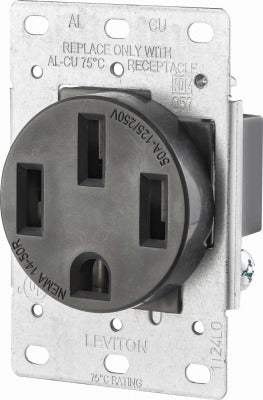

Leviton Mfg Co R10-00279-S00 Flush Range Outlet 50A Nema 14-50R

Product Description

The LEVITON MFG CO R10-00279-S00 is a flush-mount range outlet designed for 3-pole, 4-wire grounding circuits used in residential and light commercial cooking appliance installations. Rated at 50 amps across 125/250 volts, it meets NEMA 14-50R configuration requirements. The lay-in terminal design accepts conductors up to No. 4 AWG and is compatible with both copper and aluminum wiring, making it a practical choice for retrofit and new construction work alike. The outlet measures 2.15 inches in diameter and is finished in black. UL listed. Licensed electricians install this device as part of dedicated range circuits.

This outlet is used in dedicated 50-amp range circuits in residential kitchens and light commercial kitchenette installations. It serves as the receptacle end of a NEMA 14-50 circuit, providing a code-compliant connection point for electric ranges, ovens, and high-draw cooking equipment. The lay-in terminals simplify field wiring, reducing installation time when working with heavier-gauge conductors in tight junction boxes or flush-mount applications.

Key Features

• 3-pole, 4-wire grounding configuration for NEMA 14-50R circuit compliance
• Lay-in terminals accept conductors up to No. 4 AWG
• Compatible with both copper and aluminum wiring
• 50-amp rating at 125/250 volts for high-draw cooking appliance circuits
• Flush-mount design suited for standard range outlet boxes
• UL listed for safety compliance

Compatibility

Designed as an OEM-style replacement and new-installation receptacle for NEMA 14-50R flush-mount range outlet applications in residential and light commercial 50-amp dedicated circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the panel and verify the absence of voltage with a meter before beginning any wiring work. No. 4 AWG or smaller conductors are required to match the lay-in terminal capacity; do not exceed the rated conductor size. Confirm the service panel supplies a proper 2-pole, 50-amp breaker on a dedicated circuit before terminating the outlet.
