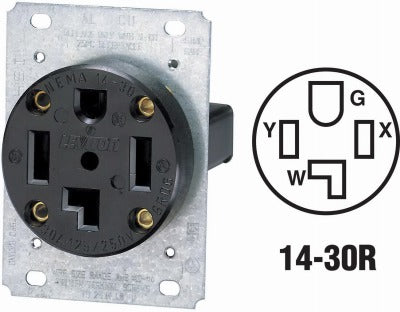

Leviton Mfg Co R10-00278-S00 Flush Dryer Outlet Nema 14-30R

Product Description

The LEVITON MFG CO R10-00278-S00 is a flush-mount dryer outlet rated at 30 amps and 125/250 volts, configured as a 3-pole, 4-wire grounding receptacle. It carries a NEMA 14-30R designation, making it the standard outlet type for residential electric dryer installations. Lay-in terminals accept conductors up to No. 4 gauge and are compatible with both copper and aluminum wiring. The outlet measures 2.15 inches in diameter and is finished in black. It is UL listed and designed for straightforward wall-box installation by a licensed electrician.

This outlet is suited for residential and light commercial applications where a dedicated 30-amp, 240-volt circuit is required for an electric dryer. It installs in a standard flush-mount wall box on a dedicated branch circuit protected by a double-pole 30-amp breaker. The NEMA 14-30R configuration provides the 4-wire connection required by current NEC standards, incorporating separate ground and neutral conductors for safe dryer operation.

Key Features

• NEMA 14-30R 3-pole, 4-wire grounding configuration meets current NEC requirements for dryer circuits
• Lay-in terminals accept conductors up to No. 4 gauge for ease of termination
• Compatible with both copper and aluminum wiring
• 30-amp, 125/250-volt rating suits dedicated electric dryer branch circuits
• 2.15-inch diameter flush-mount design fits standard wall boxes
• UL listed for safety and code compliance

Compatibility

Designed as an OEM-style replacement or new-installation flush dryer outlet for residential and light commercial electric dryer circuits requiring a NEMA 14-30R receptacle.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Shut off and lock out the dedicated 30-amp double-pole breaker at the panel before beginning any wiring work. Verify conductor gauge and material compatibility with the lay-in terminals before making connections. Do not exceed the 30-amp circuit rating or substitute a larger breaker on this circuit.
