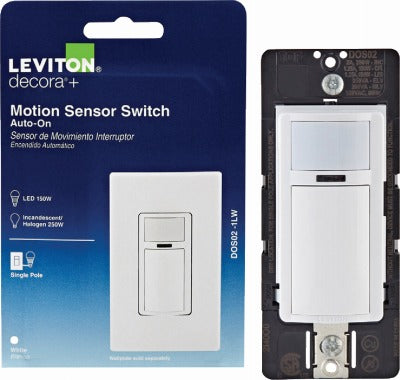

Leviton Mfg Co R02-DOS02-1LW Motion Sensor Switch 2A

Product Description

The LEVITON MFG CO R02-DOS02-1LW is a Decora-style passive infrared motion sensor light switch rated at 2 amps that replaces a standard single-pole wall switch. It uses passive infrared (PIR) technology to detect occupancy across a 180-degree field of view covering up to 900 square feet. The switch automatically turns lights on when motion is detected and turns them off after the space is vacated. The shallow, compact design fits into a standard wall box without modification. User-adjustable settings allow the installer to configure time-out duration, sensitivity, and ambient light threshold — all without tools and without removing the wallplate.

This switch is suited for residential and light commercial spaces where hands-free lighting control improves convenience and reduces energy use. Typical installations include laundry rooms, basements, storage areas, pantries, and garages — any location where occupants frequently enter with hands full or where lights are commonly left on unattended. The R02-DOS02-1LW can also be used to satisfy 2019 and 2022 California Title 24, Part 6 Vacancy Control Device Requirements, making it a compliant choice for applicable California projects. This SKU is packaged in a quantity of 3 units.

Key Features

• Passive infrared (PIR) detection with 180-degree field of view and 900 square feet of coverage
• Auto-on function activates lighting automatically upon occupancy
• Adjustable time-out duration, sensitivity, and ambient light settings
• No-tool adjustment — settings accessible without removing wallplate or faceplate
• Shallow, compact form factor fits standard wall boxes
• Compatible with 2019 and 2022 California Title 24, Part 6 Vacancy Control Device Requirements

Compatibility

Designed as a direct replacement for standard single-pole wall switches in residential and light commercial lighting circuits. Fits standard wall boxes in Decora-style configurations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Turn off the circuit breaker controlling the switch circuit and verify the circuit is de-energized with a voltage tester before beginning work. The device mounts in a standard wall box and connects to the existing switch wiring. Do not exceed the 2-amp load rating for the circuit being controlled.
