Leviton Mfg Co R02-66741-00W Sureslide Dimmer 150W

Product Description

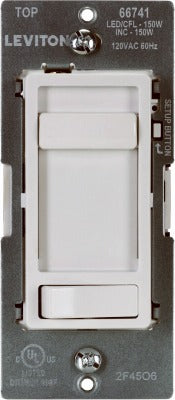

The LEVITON MFG CO R02-66741-00W is a SureSlide universal slide-bar dimmer designed for LED and CFL lighting loads up to 150 watts. It operates as either a single-pole or 3-way switch, making it adaptable to single-location or multi-location dimming installations. The slide-bar control provides smooth, linear adjustment of light levels. This dimmer ships in a package of 6 units and is finished in white to match standard decor wallplates. Licensed electricians and experienced installers handle this device in residential and light commercial wiring projects.

This dimmer is suited for residential rooms, hallways, and stairwells where LED or CFL fixtures require dimmable control. The 3-way capability allows installation in rooms with two switch locations, such as a room with entry switches at both ends. The 150W rating accommodates typical residential fixture loads using modern energy-efficient bulbs. Its universal design supports a wide range of dimmable LED and CFL lamp types commonly found in residential retrofit and new-construction applications.

Key Features

• Slide-bar control for smooth, continuous dimming of LED and CFL loads
• 150W maximum load rating for LED and CFL fixtures
• Functions as single-pole or 3-way dimmer for flexible installation
• White finish compatible with standard decorator-style wallplates
• Packaged 6 units per package for multi-unit jobs

Compatibility

Designed as an OEM-style replacement or new-installation dimmer for single-pole and 3-way residential lighting circuits using dimmable LED and CFL lamps rated within 150W total load.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage before wiring. In a 3-way application, a compatible 3-way dimmer or switch must be used at the second location. Do not exceed the 150W load rating or use with non-dimmable lamps.
