Leviton Mfg Co 065-02310-000 Locking Outlet 20A

Product Description

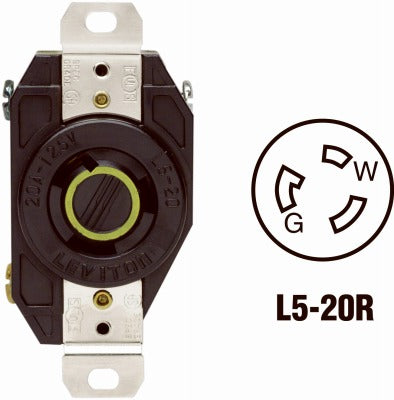

The LEVITON MFG CO 065-02310-000 is an industrial specification grade single locking flush outlet rated at 20 amps. It is designed for demanding electrical installations where a secure, locked plug connection is required. The outlet features a nickel-plated brass strap, brass ground contacts, and brass line contacts for reliable conductivity and corrosion resistance. It accepts both polarized and non-polarized plugs, adding installation flexibility. This outlet is UL listed and CSA approved, meeting North American safety standards. Licensed electricians install this device in commercial, industrial, and heavy-duty residential applications.

This locking outlet suits commercial and industrial environments where standard duplex receptacles are insufficient for load demands or where plug retention is required to prevent accidental disconnection. Typical applications include factory floors, mechanical rooms, data centers, and other facilities running continuous or high-demand electrical loads. The single flush configuration keeps the outlet low-profile and compatible with standard outlet boxes. It requires a 1.60 inch diameter wall plate for proper installation.

Key Features

• 20-amp rating suitable for industrial and commercial circuits
• Nickel-plated brass strap for durability and corrosion resistance
• Brass ground contacts and brass line contacts for reliable electrical connection
• Accepts both polarized and non-polarized locking plugs
• UL listed and CSA approved for North American code compliance
• Limited lifetime warranty

Compatibility

Designed for use with a 1.60 inch diameter wall plate. Intended as an industrial specification grade single locking flush outlet for commercial and industrial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify the circuit is dead with a voltage tester before beginning work. Ensure the wall plate used matches the 1.60 inch diameter specification. Do not exceed the 20-amp circuit rating for connected loads.
