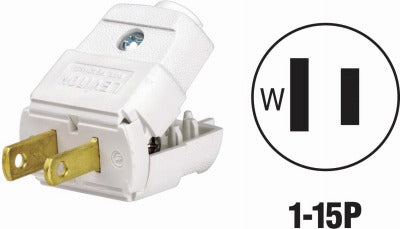

Leviton Mfg Co 036-00101-2WP Cord Plug 15A 125V Nema 1-15P

Product Description

The LEVITON MFG CO 036-00101-2WP is a white thermoplastic cord plug rated at 15 amps and 125 volts with a NEMA 1-15P configuration. It features a built-in clamp-tight strain relief that secures the cord without additional tools, reducing stress at the connection point during repeated plug and unplug cycles. Designed for appliances that see frequent connect and disconnect use, this plug is compatible with No. 20, 18, and 16 AWG flat SPT cord and can also be used on 2-wire round cord up to 0.25 inches in diameter, including No. 18 SV and SVT cord types. UL listed. Comes in a package of 10.

This cord plug is suited for light-duty residential and commercial electrical applications where a reliable, field-replaceable plug end is needed on a line cord. Typical uses include lamps, small appliances, power tools, and other 125-volt devices that require a non-grounded NEMA 1-15P plug. The built-in strain relief makes it a practical choice for repair shops, facilities maintenance staff, and electricians replacing damaged or missing plug ends on flat or small-diameter round cords.

Key Features

• Built-in clamp-tight strain relief secures cord without additional hardware
• Compatible with No. 20, 18, and 16 AWG flat SPT cord types
• Also fits 2-wire round cord up to 0.25 inches in diameter, including No. 18 SV and SVT
• NEMA 1-15P non-grounded 2-blade configuration rated 15 amps at 125 volts
• Thermoplastic construction for durability under frequent use
• UL listed; 2-year limited warranty
• Sold in a package of 10 units

Compatibility

Designed for use with No. 20, 18, and 16 AWG flat SPT cord, and 2-wire round cord up to 0.25 inches in diameter including No. 18 SV and SVT cord. Fits NEMA 1-15P non-grounded receptacle configurations at 125 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines. Disconnect power at the source before attaching or replacing any cord plug. Ensure the cord gauge and type fall within the rated AWG range before assembly, and verify the clamp-tight strain relief is fully tightened to prevent cord pull-out.
