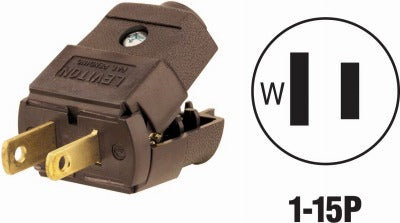

Leviton Mfg Co 035-00101-2BP Cord Plug 15A 125V Nema 1-15P

Product Description

The LEVITON MFG CO 035-00101-2BP is a thermoplastic cord plug rated at 15 amps and 125 volts with a NEMA 1-15P blade configuration. It features a built-in clamp-tight strain relief that secures the cord during repeated connect and disconnect cycles, reducing stress on the conductor terminations. Designed for appliances and equipment that see frequent plugging and unplugging, this plug is suitable for use with No. 20, 18, and 16 AWG flat SPT cord. It may also be used on 2-wire round cord up to 0.25 inches in diameter, including No. 18 SV and SVT cord types. The unit is UL listed and carries a 2-year limited warranty.

This cord plug is suited for residential and light commercial wiring applications where a reliable field-replaceable plug end is needed on small appliances, lamps, or portable equipment. Its compatibility with both flat SPT cord and select round cord types gives electricians and maintenance technicians flexibility when servicing or replacing damaged plug ends on common household and commercial appliances. The package quantity of 10 units makes it practical for service vans and maintenance stock.

Key Features

• Built-in clamp-tight strain relief protects conductor terminations during frequent plugging and unplugging
• Rated 15 amps at 125 volts for standard North American branch circuit use
• NEMA 1-15P non-grounding blade configuration
• Compatible with No. 20, 18, and 16 AWG flat SPT cord
• Also fits 2-wire round cord up to 0.25 inches in diameter including No. 18 SV and SVT
• UL listed construction with thermoplastic body

Compatibility

Designed for use with No. 20, 18, and 16 AWG flat SPT cord and 2-wire round cord up to 0.25 inches in diameter, including No. 18 SV and SVT cord types. Suitable as a field-replacement plug end on small appliances and portable equipment using NEMA 1-15P non-grounding circuits.

Installation Notes

Installation should be performed by a licensed electrician or qualified technician in accordance with NEC guidelines for cord and plug-connected equipment. De-energize and disconnect the cord from any power source before disassembling or terminating the plug. Ensure the correct AWG cord is used and that the strain relief clamp is fully secured before use to prevent conductor pull-out.
