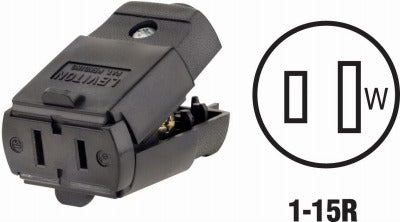

Leviton Mfg Co 017-00102-0EP 15A Cord Connector Nema 1-15R

Product Description

The LEVITON MFG CO 017-00102-0EP is a polarized thermoplastic cord connector rated at 15 amps and 125 volts, conforming to the NEMA 1-15R standard. It features a built-in hinged, clamp-tight strain relief that secures the cord without additional hardware. Designed for use with 20 AWG, 18 AWG, and 16 AWG flat SPT cord, it can also accommodate 2-wire round cord up to 0.25 inches in diameter, including No. 18 SV and SVT types. Electricians and maintenance technicians use this connector for quick, reliable cord terminations on light-duty applications. It carries a 2-year limited warranty and is UL listed.

This connector is suited for residential and light commercial electrical work where flat SPT cord or small-diameter round cord terminations are required. Typical applications include lamp cord repairs, appliance cord replacements, and general-purpose wiring tasks. The polarized design ensures correct plug orientation, making it appropriate for grounded and polarized circuits operating at standard 125-volt service. The package quantity is 10 units per package, making it practical for service technicians who perform multiple cord-end replacements on a single job.

Key Features

• Built-in hinged, clamp-tight strain relief — no separate strain relief hardware required
• Polarized design ensures correct cord orientation on NEMA 1-15R receptacles
• Accepts 20 AWG, 18 AWG, and 16 AWG flat SPT cord
• Compatible with 2-wire round cord up to 0.25 inches in diameter, including No. 18 SV and SVT
• UL listed for safety compliance
• 2-year limited warranty

Compatibility

Designed as an OEM-style replacement connector for light-duty cord applications using flat SPT cord or 2-wire round cord up to 0.25 inches in diameter on NEMA 1-15R polarized circuits.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC). De-energize the circuit completely before attaching or removing any cord connector. Insert the cord into the connector body, engage the hinged strain relief clamp, and tighten securely to prevent conductor pullout. Do not exceed the 15-amp or 125-volt ratings for this connector.
