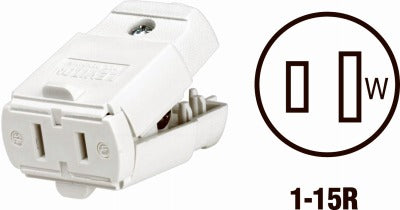

Leviton Mfg Co 016-00102-0WP White Cord Connector 15A

Product Description

The LEVITON MFG CO 016-00102-0WP is a white thermoplastic cord connector designed for use with polarized flat SPT cord in residential and light commercial electrical applications. It features a built-in hinged, clamp-tight strain relief that secures the cord at the point of connection, reducing stress on the internal terminations. Rated at 15 amps and 125 volts, it meets NEMA 1-15R configuration requirements. Compatible with 20 AWG, 18 AWG, and 16 AWG flat SPT cord, this connector is sized and listed for installation by licensed electricians and qualified electrical contractors.

This connector is suited for wiring replacement projects, cord repair, and new cord-end assembly in residential settings. It accommodates flat SPT cord in three common wire gauges and can also be used on 2-wire round cord up to 0.25 inches in diameter, including No. 18 SV and SVT cord types. It is sold in packages of 10 units, making it appropriate for stock-and-service applications where cord-end replacements are performed routinely.

Key Features

• Built-in hinged, clamp-tight strain relief for secure cord retention
• Polarized design for correct polarity orientation at connection
• Accepts 20 AWG, 18 AWG, and 16 AWG flat SPT cord
• Compatible with 2-wire round cord up to 0.25 inches in diameter (No. 18 SV and SVT)
• NEMA 1-15R configuration, rated 15A at 125V
• UL listed thermoplastic construction

Compatibility

Designed for use with polarized flat SPT cord in 20 AWG, 18 AWG, and 16 AWG gauges, and with 2-wire round cord up to 0.25 inches in diameter including No. 18 SV and SVT types. Meets NEMA 1-15R requirements for 15A/125V cord connector applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit completely before assembling or disassembling any cord connector. Ensure the correct AWG cord is used for the connected load and that the polarized blades are oriented correctly per NEMA 1-15R requirements. Do not exceed the 15A/125V rating of this connector.
