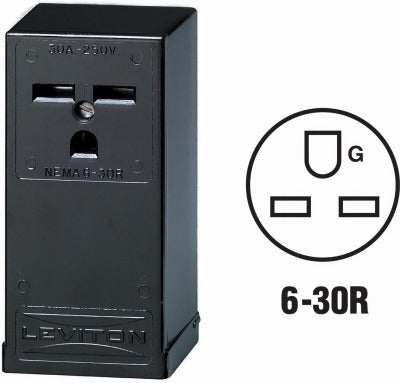

Leviton Mfg Co 010-05376-P00 Surface Outlet 30A 250V Nema 6-30R

Product Description

The LEVITON MFG CO 010-05376-P00 is a surface-mount power grounding outlet rated at 30 amps and 250 volts. It uses a 2-pole, 3-wire configuration and meets the NEMA 6-30R receptacle standard, making it a common choice for heavy-duty single-phase equipment. The outlet is UL listed and accepts both aluminum and copper conductors up to 4 AWG, which broadens its use in commercial and industrial service work. The round body measures 2.15 inches in diameter and is finished in black. Licensed electricians install this outlet in applications where standard 125-volt receptacles are insufficient for the load.

This outlet is suited for commercial and light industrial environments where 250-volt, 30-amp circuits are required. Typical installations include dedicated circuits for welder power supplies, large air compressors, industrial shop equipment, and similar high-draw single-phase loads. The NEMA 6-30R configuration is also found in some EV charging setups and commercial kitchen equipment circuits. The package quantity is 10 units per order, making it practical for multi-outlet rough-in jobs or stocking service vehicles.

Key Features

• NEMA 6-30R configuration — 2-pole, 3-wire, 30A at 250V
• UL listed for use with aluminum or copper conductors
• Accepts wire up to 4 AWG for high-current branch circuit terminations
• Surface-mount design for exposed conduit or surface-raceway installations
• Compact round body at 2.15 inches in diameter
• Black finish for visual identification of 250-volt circuits

Compatibility

Designed as an OEM-style replacement or new-installation surface grounding outlet for 30-amp, 250-volt branch circuits wired to the NEMA 6-30R standard in commercial, industrial, and heavy-duty residential applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit at the panel and verify zero voltage with a meter before making any connections. Torque conductor terminations per the terminal markings on the device and per NEC requirements for the conductor gauge used. Surface-mount boxes or covers rated for the application must be used with this outlet to maintain code compliance.
