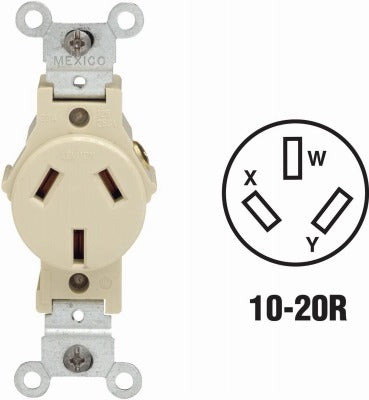

Leviton Mfg Co 003-05032-00I 20A Single Outlet Nema 10-20R

Product Description

The LEVITON MFG CO 003-05032-00I is a 20-amp single outlet rated for commercial specification grade service. Built to the NEMA 10-20R configuration, it operates at 20 amps across 125 volts or 250 volts. The outlet features a non-grounding, 3-pole, 3-wire design with side-wired terminations. It carries UL listing for safety compliance. This outlet is intended for licensed electricians installing receptacle circuits in commercial and institutional environments where heavy-duty, specification-grade components are required.

This outlet is suited for commercial and institutional settings including hotels, schools, hospitals, and office buildings. Its specification-grade construction supports the higher-demand service requirements found in these environments. The NEMA 10-20R configuration is commonly found on dedicated branch circuits where 20-amp capacity and dual-voltage compatibility are needed. Side-wiring allows for straightforward installation in standard commercial outlet boxes.

Key Features

• Commercial specification grade construction for demanding institutional applications
• NEMA 10-20R configuration supporting 125-volt and 250-volt service
• Non-grounding, 3-pole, 3-wire design
• Side-wired terminations for standard commercial box installation
• UL listed for safety and code compliance
• Sold in a package quantity of 10 units

Compatibility

Designed as a specification-grade replacement or new-installation outlet for NEMA 10-20R receptacle applications in commercial and institutional branch circuit wiring.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the branch circuit at the panel before beginning work. This is a non-grounding outlet and should only be installed on circuits that do not provide an equipment ground wire. Verify that the circuit ampacity and conductor sizing are compatible with the 20-amp rating before completing the installation.
