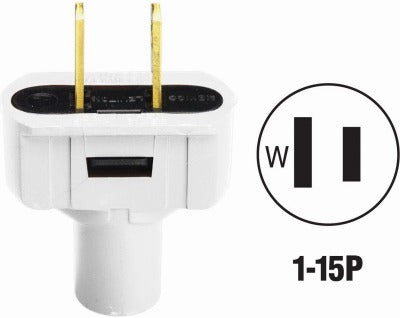

Leviton Mfg Co 001-48643-00W Cord Plug 15A 125V Nema 1-15P

Product Description

The LEVITON MFG CO 001-48643-00W is a white vinyl easy-grip replacement cord plug rated at 15 amps and 125 volts with a NEMA 1-15P non-grounding configuration. It accepts conductors up to No. 14 AWG and accommodates a maximum cord diameter of 0.375 inches. The easy-grip body allows for secure hand-tightening during termination. This plug is UL listed and suited for light-duty residential and commercial cord repair or replacement. Electricians and maintenance technicians install this plug when a damaged or missing end connector needs to be replaced on a two-wire cord set.

This plug fits standard two-wire, non-grounding cord applications found in residential settings, light commercial environments, and maintenance facilities. Typical uses include replacing worn or damaged plugs on lamps, small appliances, and extension cords using No. 14 AWG or smaller conductors. It is sold in a package quantity of 25 units, making it a practical stock item for electrical contractors and facility maintenance teams who perform frequent cord repairs.

Key Features

• NEMA 1-15P non-grounding two-blade configuration for standard 125-volt cord sets
• Rated 15 amps at 125 volts for light-duty applications
• Accepts conductors up to No. 14 AWG
• Maximum cord diameter of 0.375 inches
• Vinyl easy-grip body for secure hand-tightening during installation
• UL listed for safety compliance

Compatibility

Designed as a replacement cord plug for two-wire, non-grounding cord sets using No. 14 AWG or smaller conductors in residential and light commercial applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC). De-energize and unplug the cord set completely before terminating any connections. Strip conductors to the appropriate length per the terminal requirements and ensure no bare copper is exposed beyond the terminal point. Do not use this non-grounding plug as a substitute for a grounding-type NEMA 5-15P plug where a ground is required by code.
