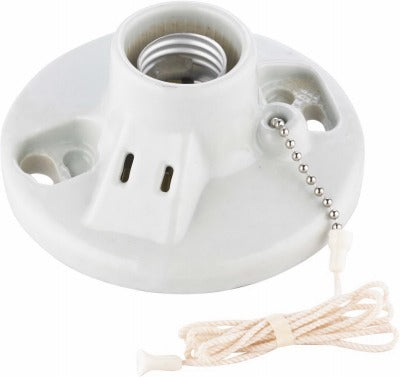

Leviton Mfg Co 000-09716-00C Porcelain Lampholder 250W

Product Description

The LEVITON MFG CO 000-09716-00C is a glazed porcelain lampholder designed for light fixture installations in residential and commercial settings. It features a built-in 2-wire outlet with NEMA 1-15R configuration, rated at 15 amps and 125 volts. The lampholder itself is rated for 250 watts at 125 volts. Two screw terminals with a removable interior simplify wiring during installation. Mounting screws, a short chain, a 3-foot braided cord, and a bell are included in the package. The unit measures 4.5 inches in outside diameter and is UL listed, confirming it meets established safety standards for electrical components.

This lampholder is suited for use in utility, storage, basement, garage, and workshop lighting applications where a durable porcelain fixture is preferred over plastic alternatives. The integrated 2-wire outlet adds a convenience plug-in point directly at the fixture. It fits standard 3.25-inch or 4-inch outlet boxes, making it compatible with common residential and light commercial electrical rough-in configurations. Electricians and maintenance technicians install this type of fixture in locations requiring a simple, reliable incandescent or compatible lamp socket with an added outlet.

Key Features

• Glazed porcelain construction for durability and heat resistance
• Integrated NEMA 1-15R 2-wire outlet rated 15 amps at 125 volts
• Lampholder rated 250 watts at 125 volts
• Removable interior with 2 screw terminals for straightforward wiring
• Includes mounting screws, short chain, 3-foot braided cord, and bell
• UL listed for electrical safety compliance

Compatibility

Designed for installation in standard 3.25-inch or 4-inch outlet boxes, typical of residential and light commercial wiring applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Always shut off and lock out the circuit breaker supplying power to the outlet box before beginning work. Secure the lampholder to the outlet box using the provided mounting screws and make wiring connections at the screw terminals according to local code requirements. Do not exceed the rated wattage or voltage for the lampholder or the outlet.
