Product Description

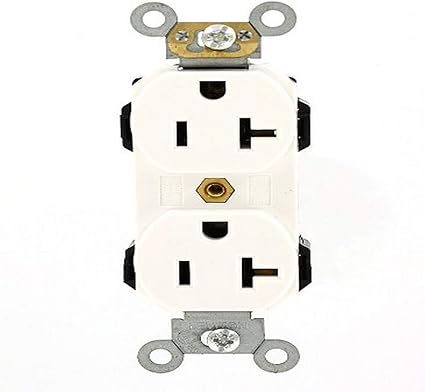

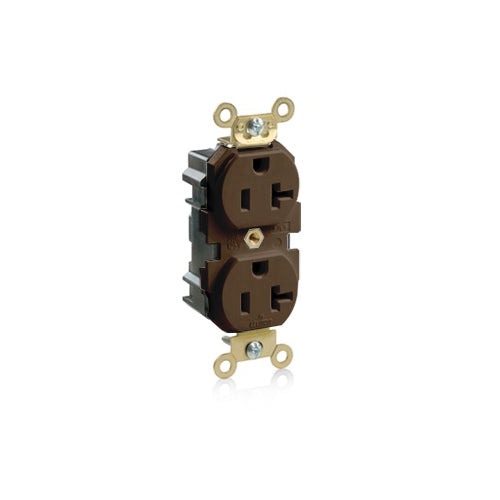

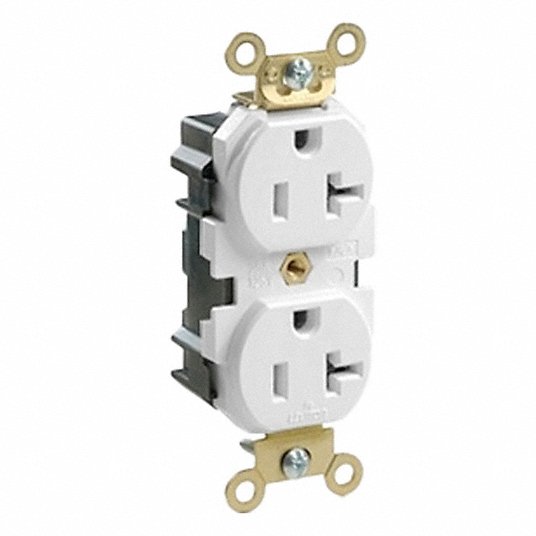

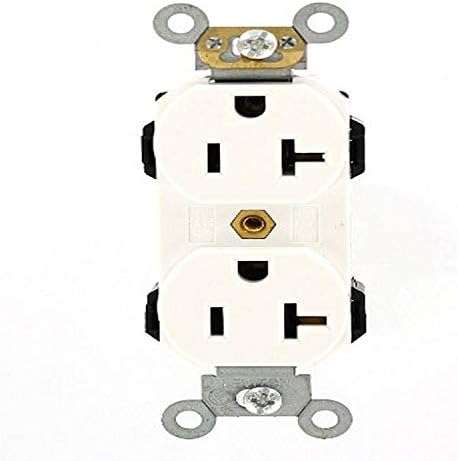

The LEVITON M5362-W Lev-Lok Duplex Receptacle Outlet is an extra heavy-duty industrial specification grade receptacle. Rated for 20 Amp and 125 Volt, it features a smooth face and self-grounding design. Mating Lev-Lok Wiring Module Required for Use.
- Smooth Face
- Extra Heavy-Duty Industrial Specification Grade
- Self-Grounding
Product Highlights
This receptacle is designed for standard installations where electrical performance and durability are required.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: M5362-W
-
Country of Origin: Mexico
Technical Specifications
-
UPC: 078477362891
-
Nema: 5-20R
-
Horsepower Rating: 1 HP
-
Amperage: 20 A
-
Current Interrupting: Certified for current interrupting at full rated current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Grounding: Self-Grounding
-
Maximum Working Voltage: 125V as rated
-
Pole: 2
-
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
Voltage: 125 VAC
-
Wire: 3
-
Flammability: Rated V-2 per UL94
-
Operating Temperature: -40 C to 60 C
-
Base Material: Nylon
-
Bushing: Solid Brass
-
Cover Material: Nylon
-
Ground Clips: Brass
-
Line Contacts: 0.040” Thick Solid Brass
-
Locking Pins: Solid Brass
-
Mounting Screws: Triple Combination Head, Steel
-
Mounting Strap: Brass with integral ground contact
-
Product ID: Ratings are permanently marked on device
-
Termination: Modular
-
Brand: Lev-Lok
-
Device Type: Duplex Receptacle Outlet
-
Grade: Extra Heavy-Duty Industrial Specification Grade
-
ANSI: C-73
-
NOM Certified: 057
-
cULus: Listed
-
Current Limiting: Full Rated Current
-
Strap Material: Brass
-
Yoke: One Piece Brass
-
Standards and Certifications: C-UL-US
-
CSA C22.2 No. 42: File 152105
-
NEMA : WD-1 & WD-6
-
NOM: 057
-
UL Fed Spec WC-596: File E13399
-
UL498: File E13399
-
Compatible Devices: All
-
Material: Thermoplastic
-
Power Plug Type: Type A - 2 pin (North American)
-
Connector Type: Plug-In
-
Total Power Outlets: 2
-
Manufacturer Part Number: M5362-W
-
AFCI: No
-
Connection Orientation: Straight
-
Contact Material: Brass
-
Cover Type: No
-
Number of Gangs: 1
-
Housing Material: Nylon
-
Mount Type: Flush
-
NEMA Enclosure Rating: Not Rated
-
NEMA Receptacle Configuration: 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Phase: Single
-
Polarized: Yes
-
Receptacle Type: Duplex
-
Shrouded: No
-
Standards: CSA; FULS Marking; UL
-
Surge Protection: No
-
Wire Connection Type: Snap-In Module
-
Wiring Method: Back
-
Terminal Type: Modular
-
Type: 1-Phase Duplex Extra Heavy Duty Wide Body
-
UNSPSC: 39121406
-
UPC #: 78477362891
-
For Environment: Food and Beverage; Oily/Greasy
-
Includes Mounting Hardware: Yes
-
Market: Industrial
-
Maximum Operating Temperature: 60 C
-
Mount Hole Center-to-Center Height: 3.3 in
