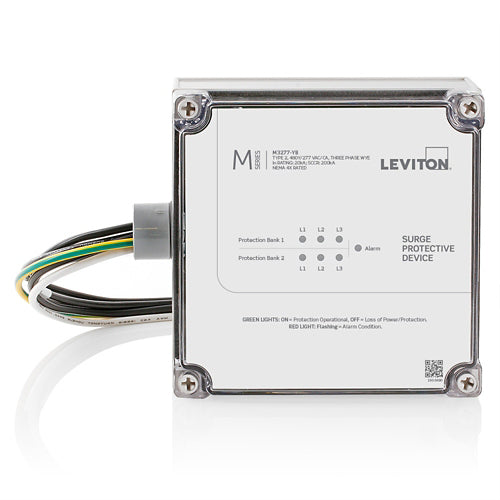

Leviton M3277-YB M Series Type 2 Surge Protective Device, 50/60 Hz, 3 Phase, 10 AWG Wire

Product Description

The Leviton M3277-YB is a type 2 surge protective device designed for 50/60 Hz operation with three-phase capabilities. It manages surge protection for a system rated for 277 volts alternating current, with a wire gauge of ten AWG.

• Phase configuration: 3 Phase
• Enclosure rating: NEMA 4X
• Max surge current rating: 200 kA

Product Highlights

This device protects electrical equipment by diverting excess voltage and providing a stable operation environment. It features multiple modes of protection across circuits for comprehensive safety.

Product Information

Standard Information

• Brand: Leviton
• MPN: M3277-YB

Technical Specifications

• Frequency rating: 50/60 Hz
• Color: Gray
• Maximum continuous operating voltage (MCOV): 277 VAC
• Surge current rating: 200 kA
• Protection modes: L-N, L-G, N-G, L-L
• Operating temperature: -40 to 60 degrees Celsius
• Humidity tolerance: 0 to 95% non-condensing
• Dimensions: Six point eight nine inches high x Seven point six nine inches wide x Two point nine nine inches deep
