Leviton M1221-E Lev-Lok Tgl Sw Sp 20A120/277Vac

Product Description

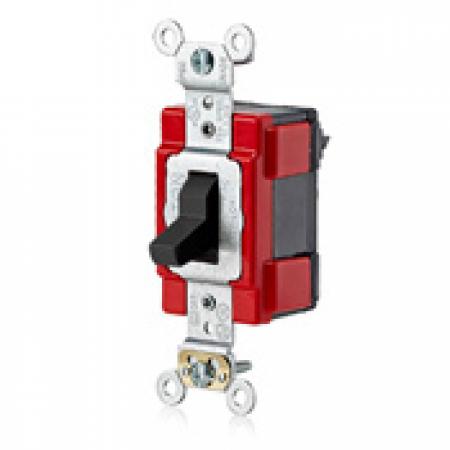

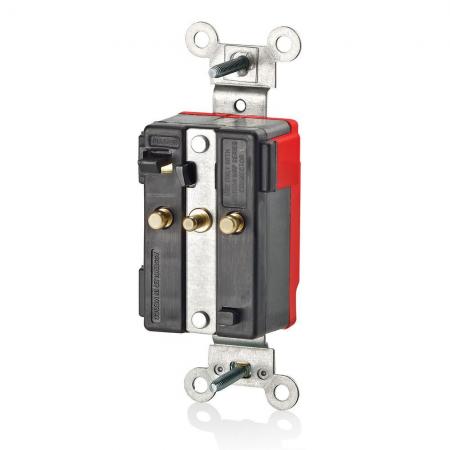

The LEVITON M1221-E Lev-Lok toggle switch is an extra heavy-duty switch operating at 120/277 VAC with a 20 A current rating. This single pole switch features a modular terminal and is designed for surface mounting. Constructed with a polybutylene terephthalate body, it is suitable for commercial applications and withstands temperatures from -40 to 65 deg C.

• Self-grounding design
• Withstands 1500 V for 1 min dielectric voltage
• Rated for 50000 operating cycles

Product Highlights

Extra heavy-duty toggle switch with modular design for commercial applications. Features self-grounding and high dielectric voltage withstand.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: M1221-E

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 20 A
• Contact Configuration: SP
• Contact Rating: 1 hp at 120 VAC, 2 hp at 240 VAC
• Enclosure: NEMA WD-1/WD-6
• Environmental Conditions: -40 to 65 deg C Operating Temperature
• Material: Polybutylene Terephthalate
• Mounting: Surface
• Number of Poles: 1
• Operating Cycles: 50000 Cycles
• Terminal Type: Modular
• Type: Extra Heavy Duty
• Voltage Rating: 120/277 VAC
• Manufacturer: LEVITON
• Current Rating: 20A
• Input Voltage: 120V, 277V AC
• Certifications & Standards: cULus, RoHS
