Leviton LU107-DNW LuminaRF Phase 0-10V Dimmer PP

Product Description

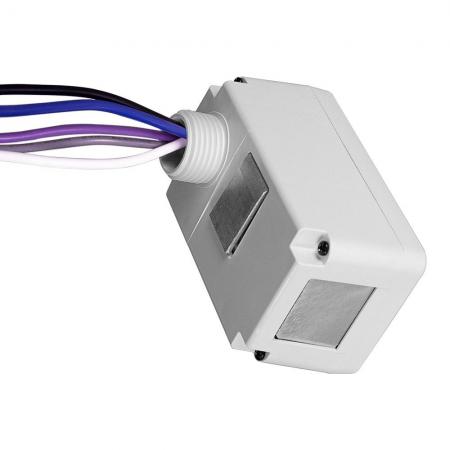

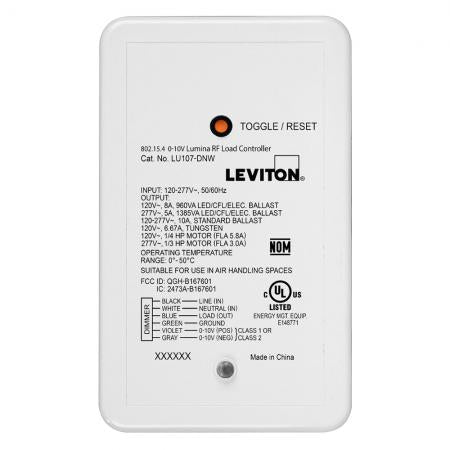

The LEVITON LU107-DNW is a dimming power pack operating between 120 to 277 V at 50/60 Hz. Suitable for use with the Leviton Wireless Room Controller, it measures 1.92 in width, 2.09 in depth, and 3-1/4 in height. It is designed for dimming any 0 to10 V controlled load.

• Features a wireless mesh network with self-healing capabilities, eliminating the need for a hardwired backbone.
• Includes a mechanically held latching relay suitable for high inrush (LED) and large commercial loads.
• Compatible with multiple load types including LED, HID, inductive, and fluorescent.

Product Highlights

This power pack features a robust wireless mesh network and is compatible with various load types, making it suitable for diverse dimming applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LU107-DNW

Technical Specifications

• Amperage Rating: 10 A
• Frequency Rating: 50/60 Hz
• Suitable For Use With: Leviton Wireless Room Controller
• Type: Dimming
• Voltage Rating: 120 to 277 V
• Width: 1.92 in
• Depth: 2.09 in
• Height: 3.25 in
• Manufacturer: LEVITON
• Brand: LEVITON
