Product Description

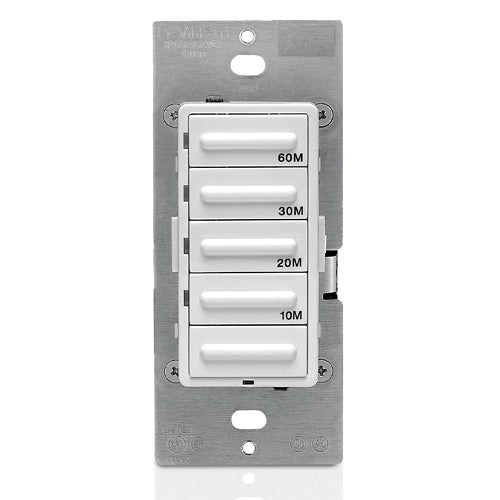

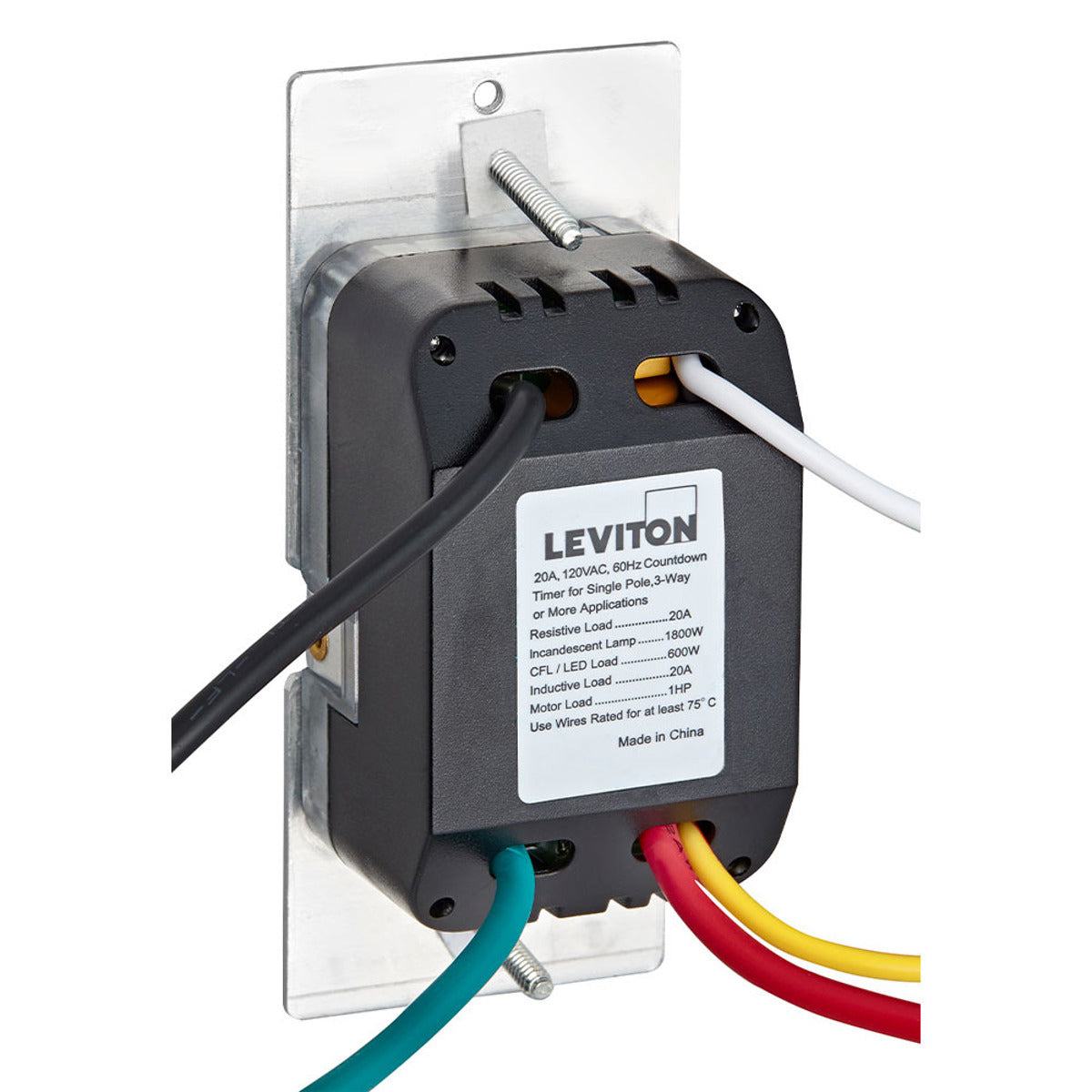

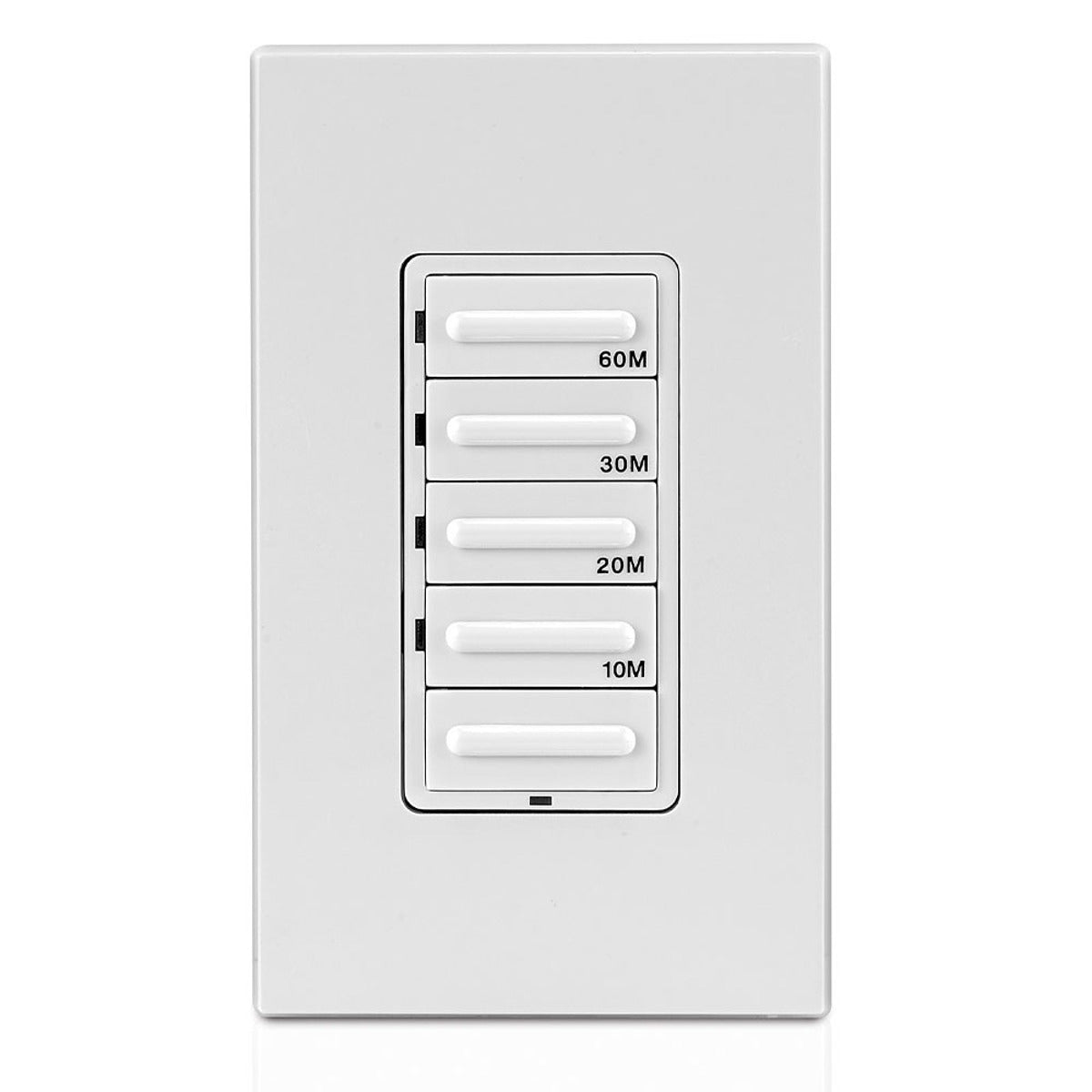

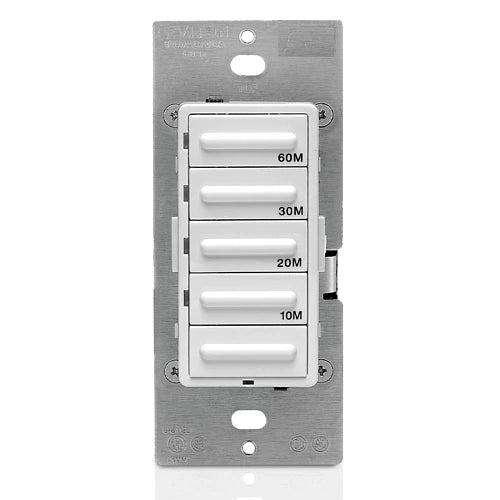

The LEVITON LTB60-1LZ Decora timer switch offers advanced features and contemporary aesthetics. It provides timed control of lighting and motor loads in homes, offices, and commercial applications. Ideal for automating control of heat lamps, hot tubs, and exhaust fans. The timer has preset buttons for 10, 20, 30, and 60-minute countdowns.
- Neutral Required
- Contemporary Style to Any Home
- Preset Timers provide a Long Lasting and Reliable Service Life
Product Highlights
The Leviton Decora timer switch provides convenient timed control of lighting and motor loads with preset countdown options.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: LTB60-1LZ
-
Country of Origin: China
Technical Specifications
-
IGCC: 5185
-
Size: 10/20/30/60 Minute Timer
-
Type: 3-Way
-
Action: SP
-
Wattage: 600/1;800 W
-
Mounting: Wall
-
Standard: UL Listed (E-328809); CSA Certified (MC-152105); NOM Certified; ASHRAE Standard
-
Sub Brand: Decora
-
Brand Name: Leviton
-
Application: Branch Circuit
-
Family group: ENERGY MANAGEMENT
-
Manufacturer: LEVITON
-
Timing Range: 0-60 min
-
Voltage Rating: 120 VAC
-
Amperage Rating: 20 A
-
Number Of Poles: 1
-
Operating Temperature: 0 to +40 DEG C
-
Environmental Conditions: Flammability (Rated UL94 V-2)
-
Amps: 20
-
Item: Decora Preset Countdown Timer
-
Depth: 1-3/8"
-
Watts: 1800
-
Width: 1-3/4"
-
Length: 4-1/8"
-
Features: Wallplate Sold Separately, Single-Pole and 3-Way with a Vizia + Switch Remote, Preset
-
HP @ 120V: 1
-
Standards: Ul,CSA,NOM
-
Switch Type: 1
-
Max. Time Setting: 60 min.
-
Min. Time Setting: 10 min.
-
Catalog Number: LTB60-1LZ
-
UPC: 078477459485
-
GTIN: 00078477459485
-
Item Type: Electronic
-
Horsepower: 1 hp
-
Coil Voltage: 120 VAC
-
Contact Form: SP
-
Time Setting: 60 min
-
Part Number: LTB60-1LZ
-
MPN: LTB60-1LZ
-
Switch Style: Push Button/Retractive
-
Suitable For: Ceiling
-
Item Package Quantity: 1
-
Current Type: AC
-
Batteries Required?: No
-
Style: 10/20/30/60 Minute Timer
-
Heavy Duty: Heavy Duty
-
Box Shape: Square
-
Finish: Ceramic
-
Batteries Included?: No
-
Material: Aluminized Steel
-
Operation Method: Occupancy Sensor
-
Model: Leviton LTB60-1LZ Decora
-
Number Of Holes: 1
-
Preset: Yes
-
RoHS Compliant: Yes
-
Product Group: Timers
-
Department: Electrical
-
Product Subgroup: Decora Devices
-
Feature: Single-Pole and 3-Way with a Vizia + Switch Remote
-
Product Voltage: 120 VAC
-
Product Details: Decora Preset Countdown Timer
-
Temperature Rating: 0 to 40 deg C
