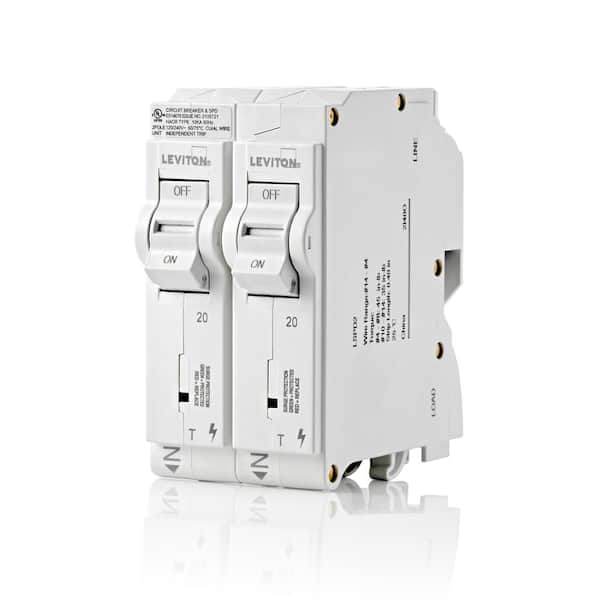

Leviton lspd2 plug-on surge protection device 20A

Product Description

The Leviton LSPD2 is a plug-on surge protection device with a 20A electrical rating. This Type 1 surge protective device safeguards critical circuits from surge events. It features an all plug-on design for easy installation, similar to a circuit breaker. The LED indicator provides operational status at a glance.

• Simple plug-on design for easy installation
• Protects critical circuits from surge events
• LED indicators for operational status

Product Highlights

Provides Type-1 whole home surge protection at the panel. Line-side power ensures surge protection continues, even if the breaker is off, or tripped

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LSPD2
• Country of Origin: China

Technical Specifications

• Catalog Number: LSPD2
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: China
• Made in USA: No
• UPC: 078477270004
• GTIN: 00078477270004
• Clamping Voltage: 600/1200 V
• Electrical Ratings: 120/240 VAC, 20 A
• Frequency Rating: 50/60 Hz
• Indicator Type: LED
• Modes of Protection: L-N/L-L
• Number of Poles: 2
• Peak Surge Current: 25 kA
• Short Circuit Current Rating: 10 kA
• Terminal Type: Plug-On
• Type: Type 1
• Amperage: 20 A
• Breaker Technology: Thermal Magnetic
• Maximum Surge Current: 25KA
• Voltage: 120 VAC
• Nominal Discharge Current Rating: 10kA
• Surge Protection: Type 1
• Wiring: All Plug-On
• UL 1449 3rd Edition: Yes
• UL 489: Yes
• Current Rating: 20 Amps
• Circuit Breaker Type: Thermal Magnetic
• Mounting Type: Plug-In Mount
• Maximum Amperage (A): 40 A
• Interruption Type: Surge Protection
• Maximum Amperage: 20 A
• Protection Properties: Surge Protection
