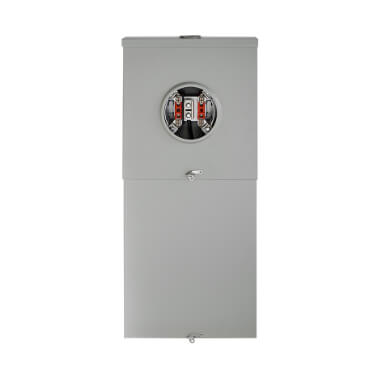

Leviton LS820-BHD MM RINGLESS HORN BYPASS 8SP 200A

Product Description

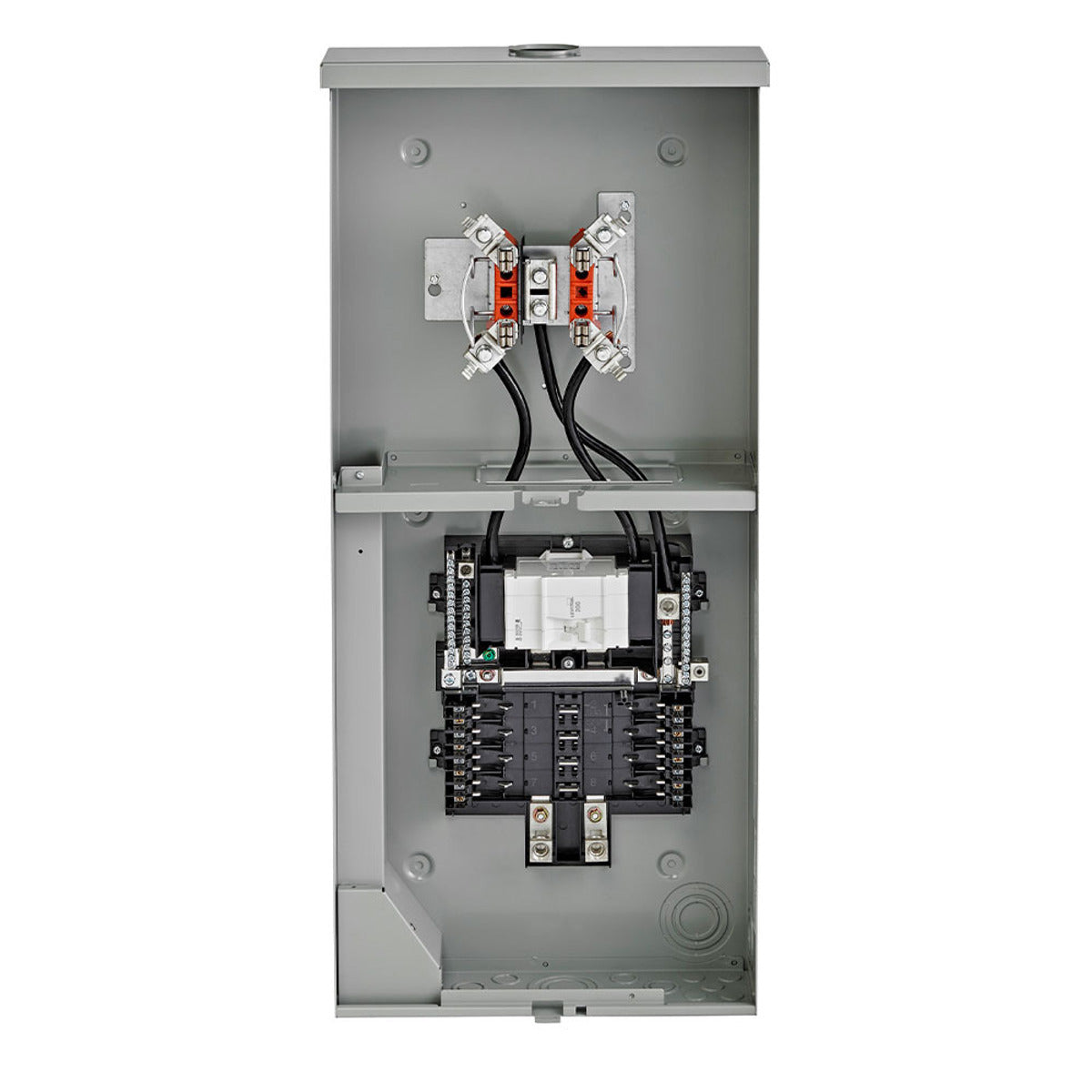

The Leviton LS820-BHD is a ringless meter main combo breaker rated at 200 amps. This outdoor unit features eight spaces and includes necessary elements like a ringless door and feed-thru lugs. It is designed for reliable performance and safety in power distribution systems.

• Includes enclosure, ringless door, and horn bypass
• Provides eight circuit capacities
• NEMA 3R Rated for outdoor applications

Product Highlights

This model simplifies wiring during installation and ensures superior conductivity with its tin-plated copper busing. It is ideal for both residential and commercial applications.

Product Information

Standard Information

• Brand: Leviton
• MPN: LS820-BHD

Technical Specifications

• Amperage: 200
• Voltage: 120/240V
• Spaces: 8
• Type: Meter Main
• Busbar Material: Copper, Bright Tin-Plated
• Enclosure Material: Galvanized Steel, Gray Baked Enamel
• Dimensions: 36 H x 16.6 W x 5.2 D inches
• Country of Origin: Mexico
• Warranty: 10 yr Limited
