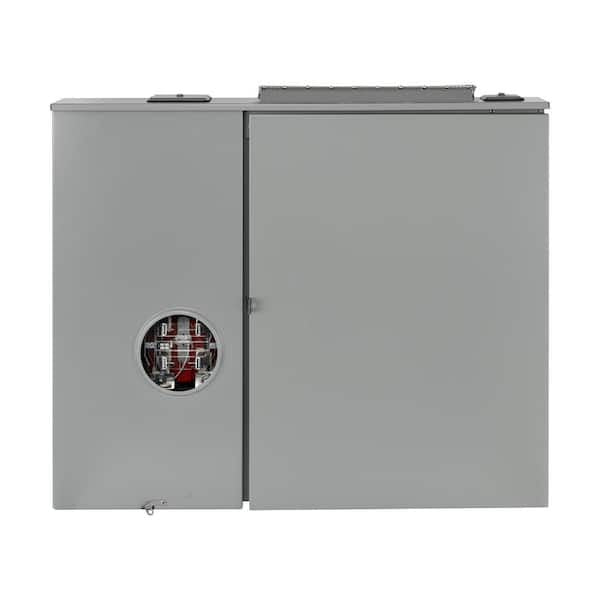

Leviton LS140-S5D Outdoor Meter Main 400A 12 Spaces

Product Description

The LEVITON LS140-S5D is an outdoor meter main with a 200A main circuit breaker factory installed, featuring 12 spaces and a NEMA 3R rating. It includes an enclosure, ringless door, UG/OH service entrance with distribution section and feed-through lugs. The load center can be wired at rough-in without any circuit breakers present.

• Features 225A rated bussing for maximum PV backfeed capabilities
• Equipped with tin plated copper bussing
• Designed to withstand the elements

Product Highlights

Ideal for large-scale residential applications and fully electrified homes.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LS140-S5D
• Country of Origin: Mexico

Technical Specifications

• NEMA Enclosure Type: NEMA 3R
• Amperage: 400A / 400A
• Short Circuit Current Rating: 22kA
• Spaces / Circuits: 12
• Type: Meter-Main
• Voltage: 120/240 VAC
• UL50: Yes
• UL50E: Yes
• UL67: Yes
• UL869A: Yes
• Busbar Material: Copper, Bright Tin-Plated
• Busbar Rating: 225A
• Ground Connection: 6AWG – 250 MCM
• Material: Galvanized Steel, Gray Powder Coated
• Supply Connections: 3/8” studs for service lugs
• Meter Configuration: Class 320
• Maximum Amperage (A): 400 A
• Load Center Type: Main breaker
• Material Quality: Galvanized steel
• Voltage Compatibility: 120/240 V
• Number of Circuits: 12 circuits
• Catalog Number: LS140-S5D
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• UPC: 078477333709
• GTIN: 00078477333709
