Leviton LR220-BDD Outdoor Load Center 200A 20-Space

Brand: LEVITON
SKU: LR220-BDD
Availability: In Stock

Ships same day if ordered by 12 pm
$263.49
$263.49
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

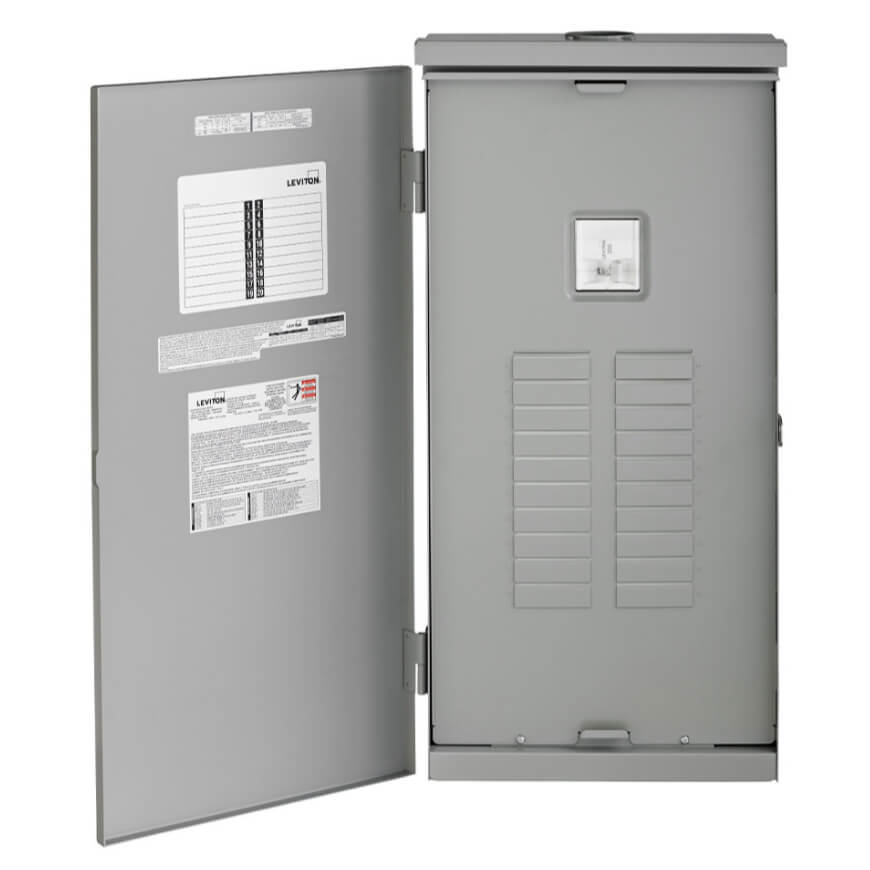

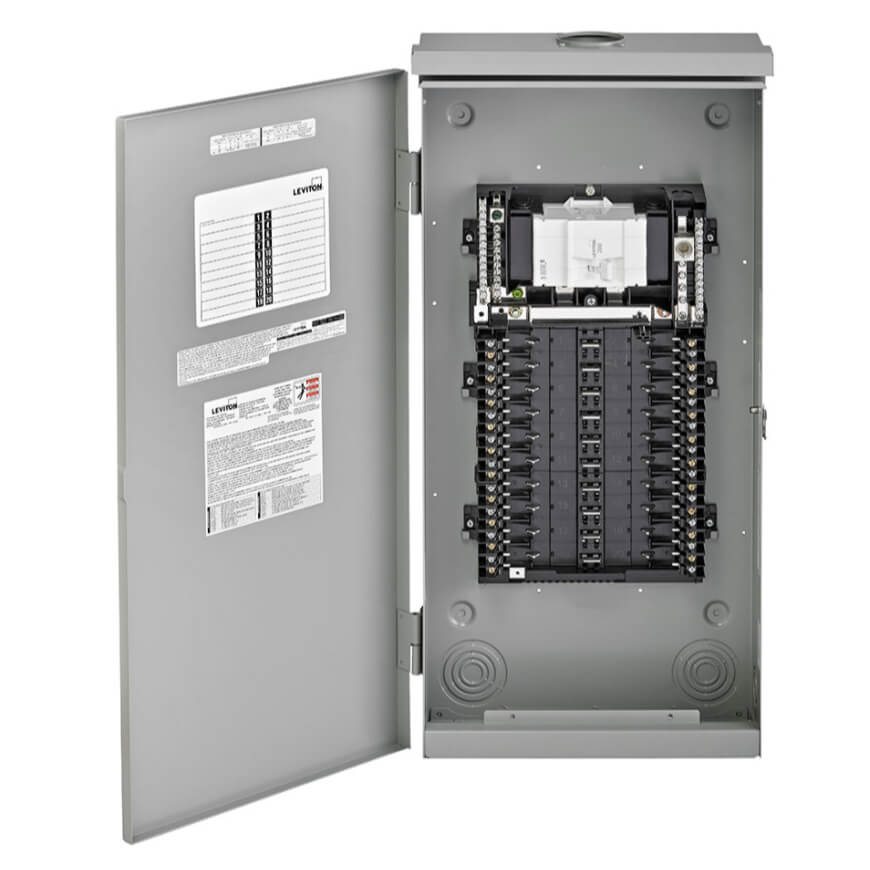

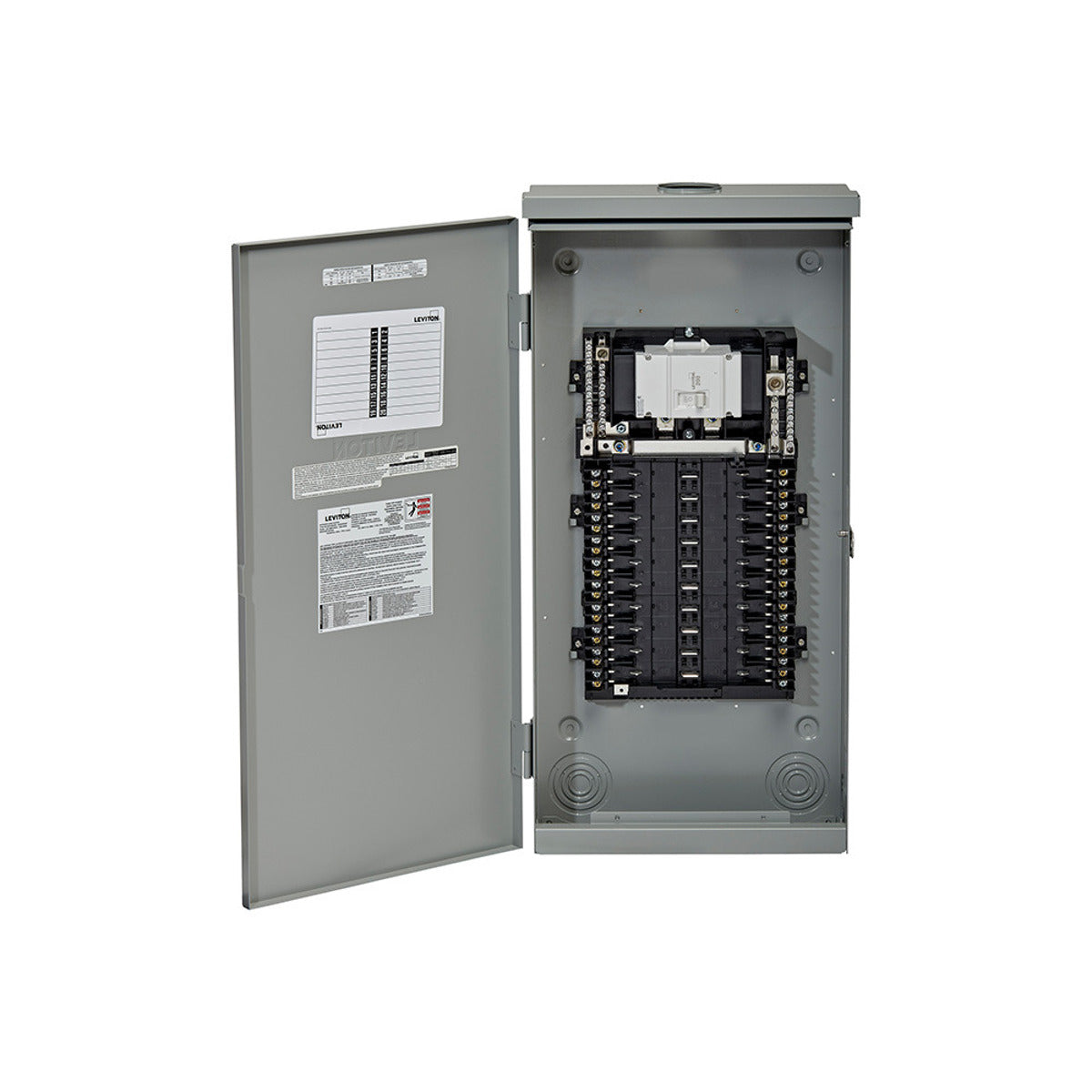

The Leviton LR220-BDD Outdoor Load Center is a 200A main circuit breaker with 20 spaces for circuits. Designed for outdoor use with NEMA 3R rating, it includes an enclosure and door. Leviton's design allows wiring at rough-in without circuit breakers. All Leviton Load Centers have tin plated copper bussing.

  • Easy wiring at rough-in without circuit breakers
  • Tin plated copper bussing for superior conductivity
  • Notches for cable ties promote neat wiring

Product Highlights

The Leviton LR220-BDD is a reliable outdoor load center with a 200A main circuit breaker and 20 spaces.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: LR220-BDD
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
LR220-BDD
Manufacturer
Leviton
Brand
Leviton
Country of Origin
Mexico
Made in USA
No
UPC
078477996454
GTIN
00078477996454
Cross Reference Products
LP220-3B
Amperage
200 A
Short Circuit Current Rating
22 KA
Spaces
20
Circuits
20
Type of Load Center
Main Breaker
Voltage
120/240V
Busbar Material
Copper, Bright Tin-Plated
Enclosure Material
Galvanized Steel, Gray Baked Enamel
Ground Connection
4 AWG - 2/0 AWG Cu/Al
Supply Connections
3 AWG - 300 MCM Cu/Al
NEMA Enclosure Type
NEMA 3R Outdoor
Standards & Certifications
UL 50, UL 50E, UL 67, UL 869A
Product Type
Load Center
Enclosure Type
NEMA-3R
Installation Type
Outdoor Only
Operating Temp Range
-40 to 158
Operating Temperature
-40C to +70C
Voltage AC
120/240 VAC
Busbar Rating
225A
UL 50
Yes
UL 50E
Yes
UL 67
Yes
UL 869A
Yes
Product Name
Leviton 20 Space Outdoor Load Center With 200A Main Circuit Breaker (LR220-BDD)
SKU
LR220-BDD
Mfr. Part Number
LR220-BDD
UPC Code
#078477996454
AC Adapter Current
200 Amps
Material
Copper
Number Of Circuits
20
Phase Type
Single Phase
Maximum Current
200 A
MPN
LR220BDD
Suitable For
Interior, Exterior, Wall
Current Type
AC
Features
Waterproof
Box Shape
Rectangular
Finish
Stainless Steel
Mounting Style
Flush, Panel
Number of Gangs
20
Current Rating
151-200 A
Number of Phases
1
Model
LR220-BDD
Brand Name
Leviton
Depth
4.4"
Height
30"
Input Voltage
120V, 240V AC
Color
Gray
