LEVITON LP820-RMC CIRCUIT BREAKERS
LEVITON LP820-RMC CIRCUIT BREAKERS

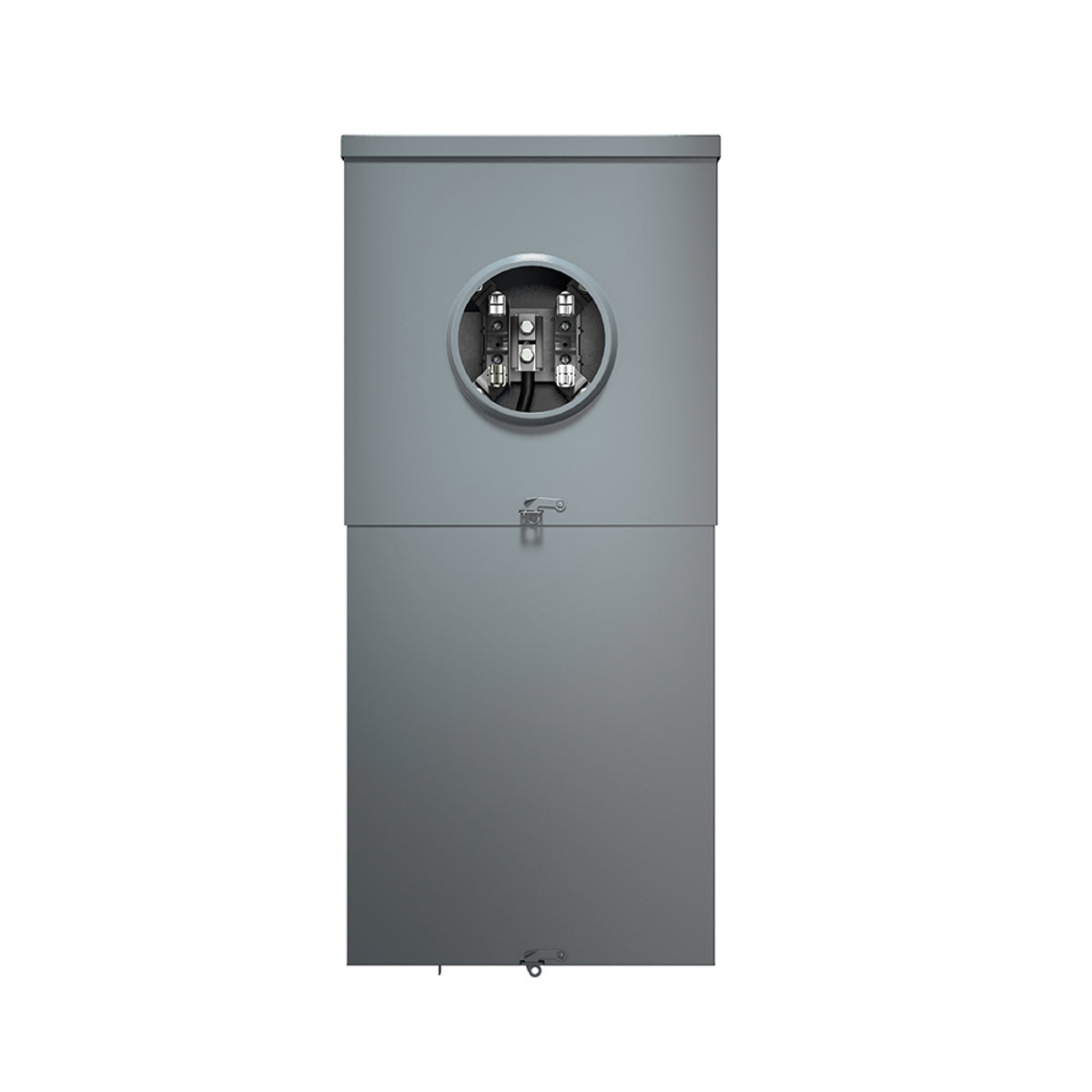

Leviton LP820-RMC Outdoor Load Center Meter Combo Ring Type NEMA 3R with Main Breaker and Feed-Thru Lugs 200 Amp 8 Spaces 22KA Interrupt Rating

Brand: LEVITON
SKU: LP820-RMC
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton LP820-RMC is an Outdoor Load Center Meter Combo. It is designed for both residential and commercial applications. This unit is rated for 200 amps with eight spaces. It features a ring-type cover and feed-thru lugs to accommodate both overhead and underground feeds.

  • NEMA Type 3R enclosure for outdoor use
  • 10-Year limited warranty
  • Operates in temperatures from zero degrees Celsius to forty degrees Celsius

Product Highlights

This load center is suitable for various applications, including outdoor environments. It includes eight knockouts to facilitate installation. The design promotes neat wiring and reliable connections in all weather conditions.

Product Information

Standard Information

  • Manufacturer: Leviton
  • Catalog Number: LP820-RMC
Technical Specifications
Length
36 inches
Width
16.6 inches
Depth
5.2 inches
Amperage Rating
200 A
Voltage Rating
120/240 VAC
Wire Size
4 to 2/0 AWG Ground / 6 AWG to 350 kcmil Supply
Enclosure Type
NEMA 3R
Operating Temperature
0 to 40 degrees Celsius
Feed Type
Overhead/Underground
Mounting Type
Surface
Terminal Type
Feed-Through Lug
