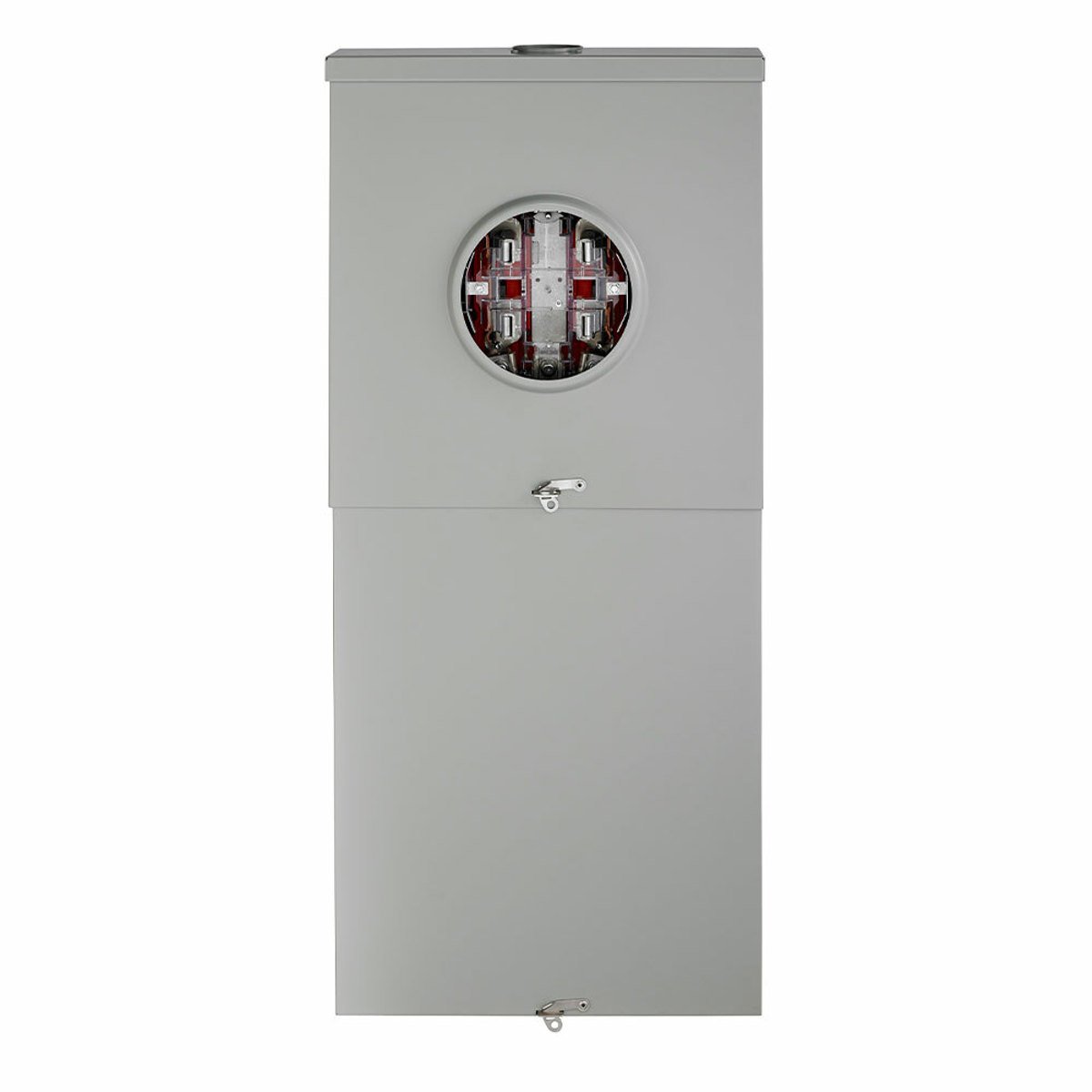

Leviton LP815-LMC Load Center Meter Combo Ringless Lever Bypass NEMA 3R Outdoor w/ Main Breaker and Feed-Thru Lugs 150A 8 Spaces

Product Description

The Leviton Load Center Meter Combo with MPN LP815-LMC is designed for outdoor use. This model features a main breaker and feed-thru lugs, suitable for both commercial and residential applications. It operates at 150 amperes and provides eight spaces for circuit breakers. The load center is designed to meet NEMA 3R standards, ensuring durability against the elements.

• 150 ampere capacity
• NEMA 3R enclosure suitable for outdoor installation
• Ringless cover for secure operation

Product Highlights

This load center is ideal for new installations or upgrades in outdoor settings. It is built to accommodate overhead and underground feed types, making it versatile in various environments.

Product Information

Standard Information

• Manufacturer: Leviton
• Catalog Number: LP815-LMC

Technical Specifications

• Amperage Rating: 150 A
• Cover Type: Ringless
• Dimensions: 36 inches H x 16.6 inches W x 5.2 inches D
• Enclosure Type: NEMA 3R
• Feed Type: Overhead/Underground
• Mounting Type: Surface
• Operating Temperature: 0 to 40 degrees C
• Phase: 1
• Terminal Type: Feed-Through Lug
• Voltage Rating: 120/240 VAC
• Wire Size: 4 to 2/0 AWG Ground/6 AWG to 350 kcmil Supply
• Country of Origin: Mexico
• Special Features: 10-Year Limited Warranty
