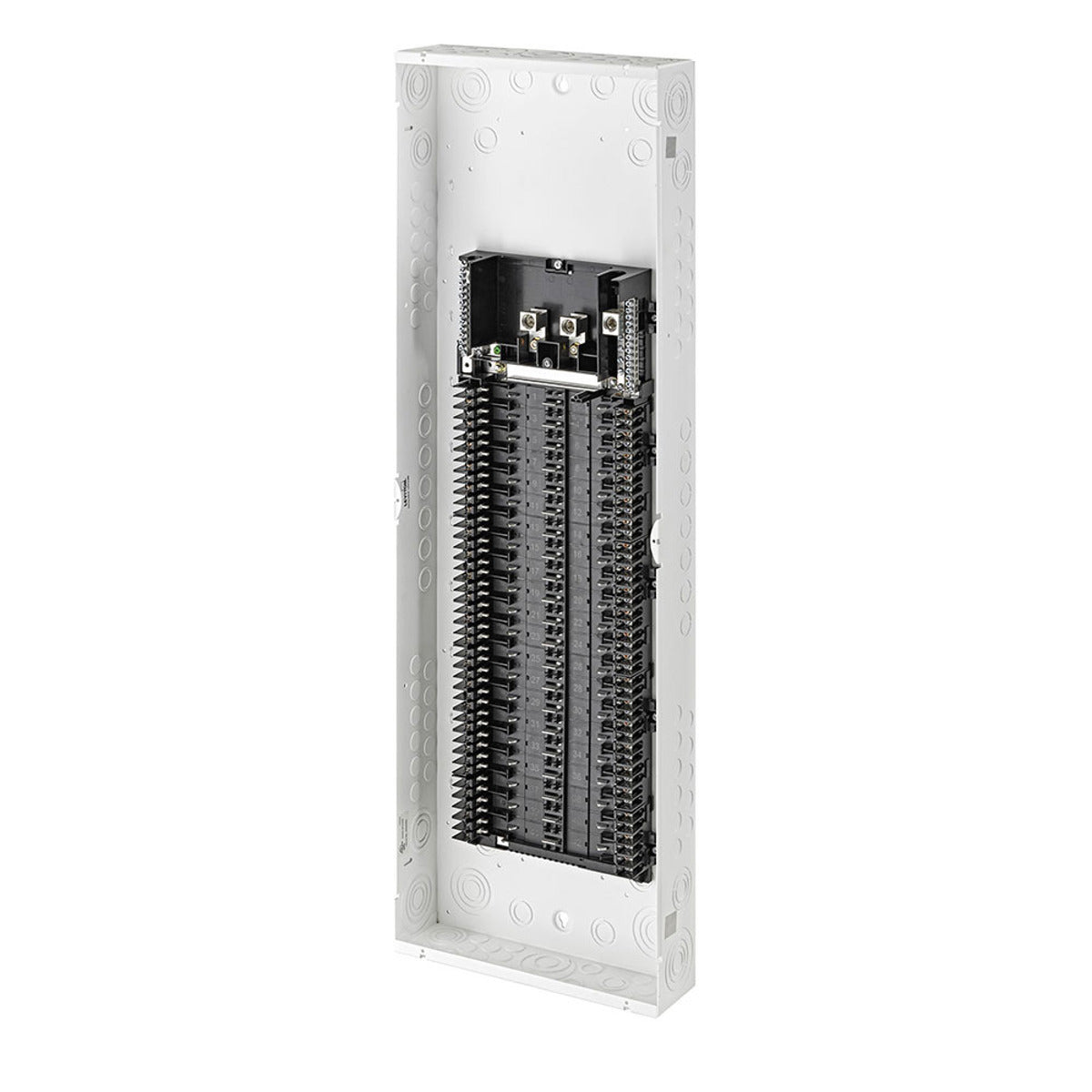

Leviton LP422-LPD Main Lug Convertible Load Center 225 Amps 42 Space

Product Description

The Leviton LP422-LPD is a Main Lug Convertible Load Center designed for indoor use. This load center operates at 120/240 VAC and provides a 225 Amp capacity. It features 42 spaces, allowing for numerous circuit installations in a single unit.

• Transformable from main lug to main breaker configuration.

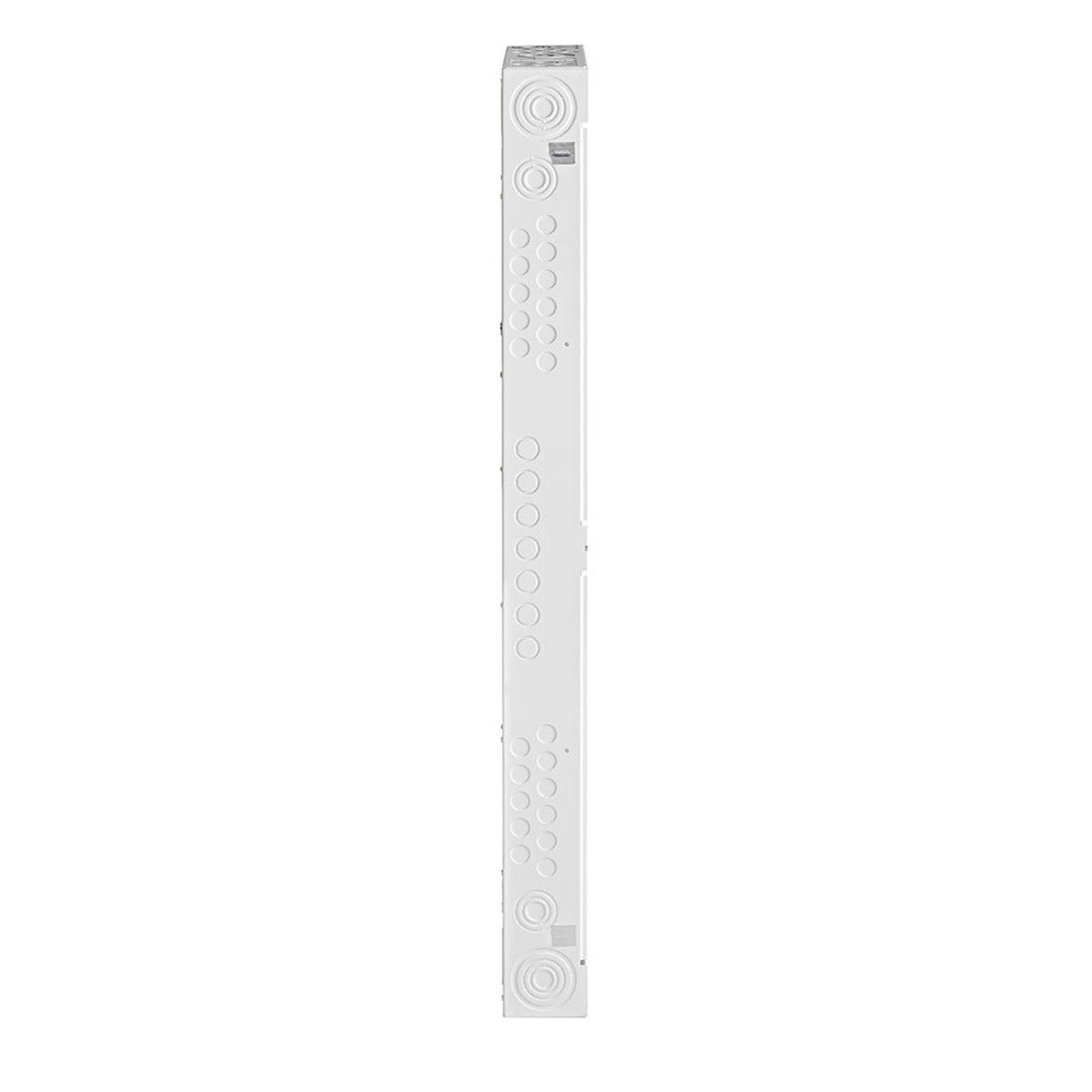

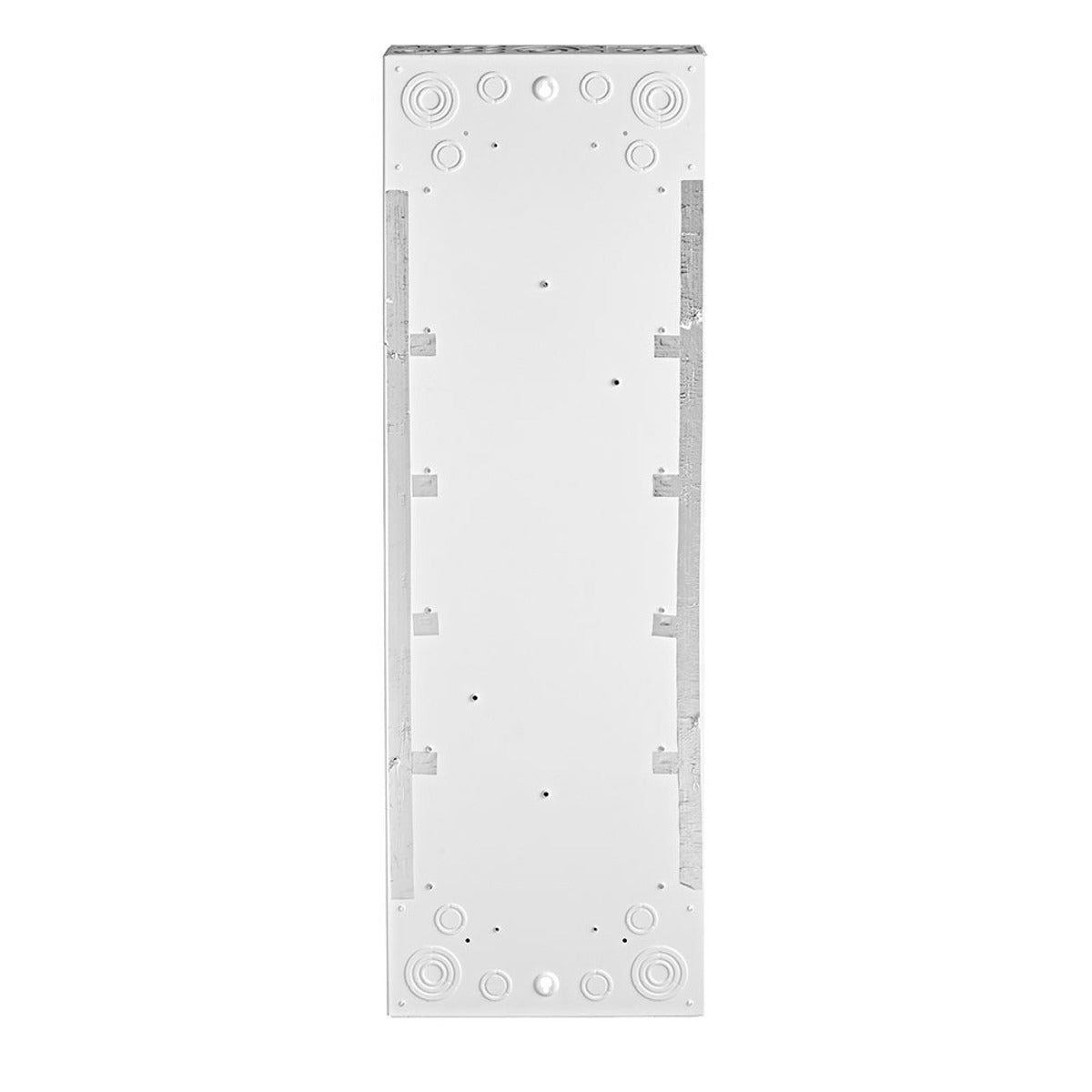

• Includes a galvanized steel enclosure with a white powder coat finish.
• Equipped with advanced safety indicators for trip conditions.

Product Highlights

This load center is suitable for residential and commercial applications where multiple circuits are required. It meets or exceeds several UL standards, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Leviton
• Color: White

Technical Specifications

• MPN: LP422-LPD
• Amperage Rating: 225 Amp
• Enclosure Type: NEMA 1
• Voltage Rating: 120/240 VAC
• Dimensions: 43 inches height x 14.25 inches width x 4 inches depth
• Weight: 33 pounds
• Interrupt Rating: 10 kA
• Ground Connection: 4 AWG - 2/0 AWG Copper or Aluminum
• Supply Connections: 3 AWG - 300 MCM Copper or Aluminum
• Standards & Certifications: UL 50; UL 50E; UL 67; UL 869A
• Warranty: 10 years limited
