Leviton LP420-BPD Load Center with Main Breaker 200 Amp 42 Spaces

Product Description

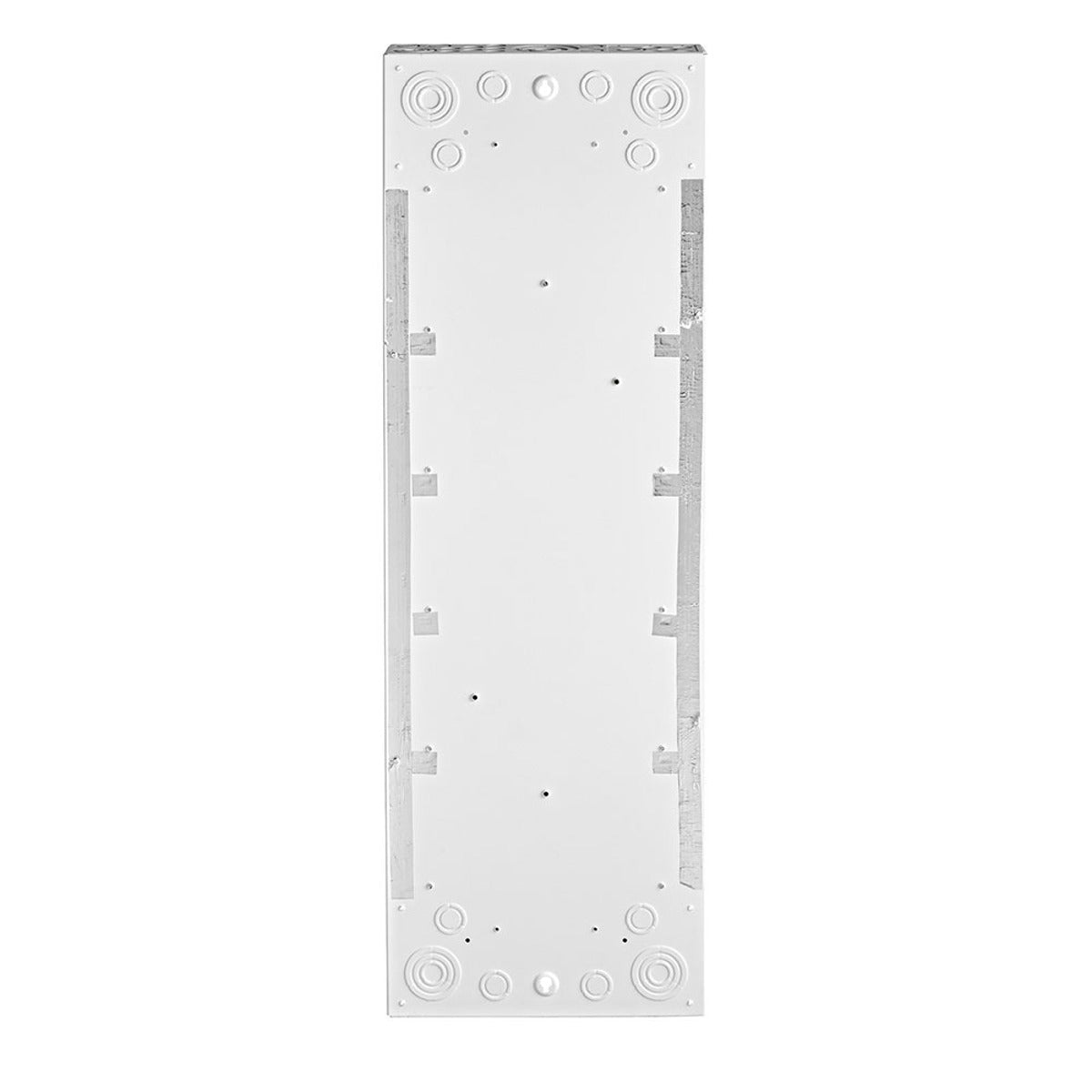

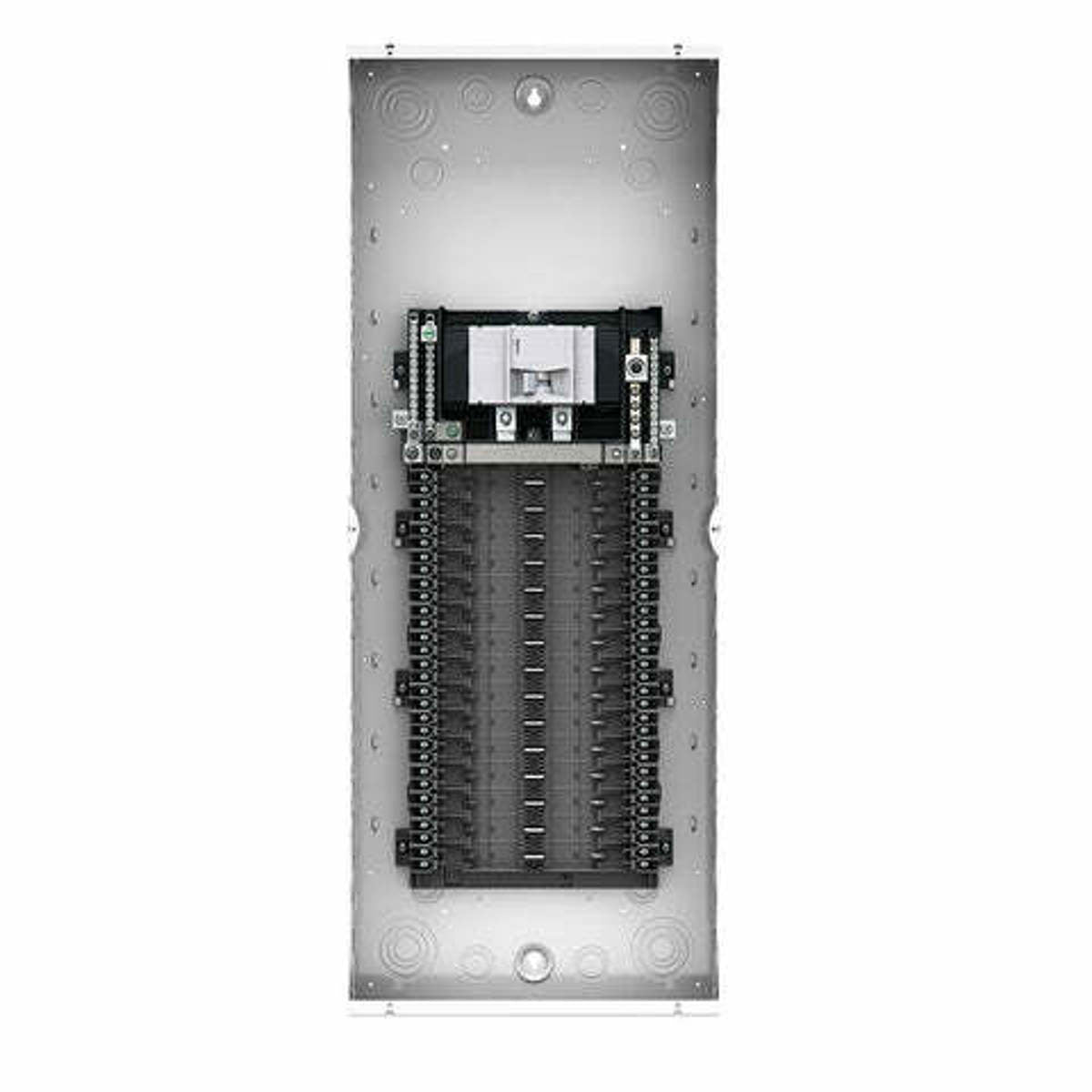

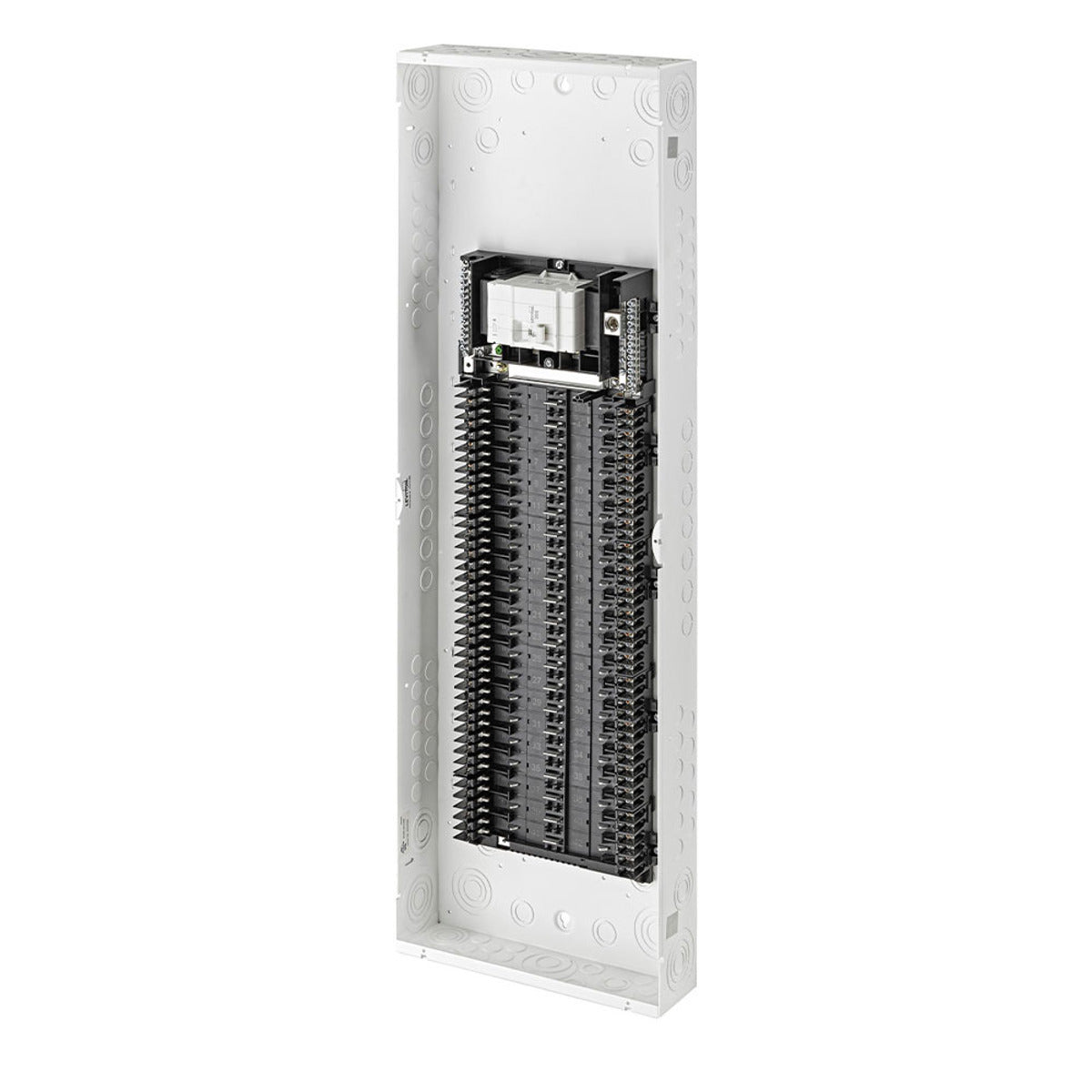

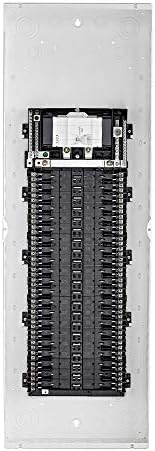

The Leviton LP420-BPD is an indoor load center with a main breaker, operating at 120/240 VAC with a 200 Amp capacity and 42 spaces. It features a NEMA 1 enclosure suitable for flush or surface mounting. The load center is designed for easy installation and a modern appearance. Includes enclosure and interior only; door sold separately.

• Terminate all hot and neutral wires at custom lugs in the panel.
• The entire panel can be wired at rough-in without circuit breakers installed.
• Features tin plated copper bussing for superior conductivity.

Product Highlights

This Leviton load center offers a convenient and modern solution for indoor electrical distribution with easy installation and reliable performance.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LP420-BPD
• Country of Origin: Mexico

Technical Specifications

• Type: Load Center with Main Breaker
• Bus Rating: 225 Amp
• Manufacturer: LEVITON
• Mounting Type: Flush/Surface
• Enclosure Type: NEMA 1 Indoor
• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 Amp
• Breaker Mounting: Plug-On
• Housing Material: Galvanized Steel, White Powder Coat
• Interrupt Rating: 22 kA
• Number of Spaces: 42
• Number of Circuits: 42
• Country of Origin: Mexico
• Made in USA: No
• UPC: 078477996256
• GTIN: 00078477996256
• Temperature Rating: -40 to 70 deg C
• Conductor Size: 4-2/0 AWG Cu/Al Ground, 3 AWG-300 MCM Cu/Al Supply
• Construction: Galvanized Steel
• Finish: White Powder Coated
• Includes: Enclosure And Interior Only
• Standards: UL 67, UL 50, UL 50E, UL 869A Listed
• UNSPSC: 39121101
• Phase: 1-Phase
• Wiring: 3-Wire
• Material: Copper
• Phase Type: Single Phase
• Item model number: LP420-BPD
• Operating Temperature: -40°C to 70°C
• Limited Warranty: 10-Year
