Leviton LP320-BPD Load Center with Main Breaker 120/240 VAC 200 Amp 30 Spaces NEMA 1

Product Description

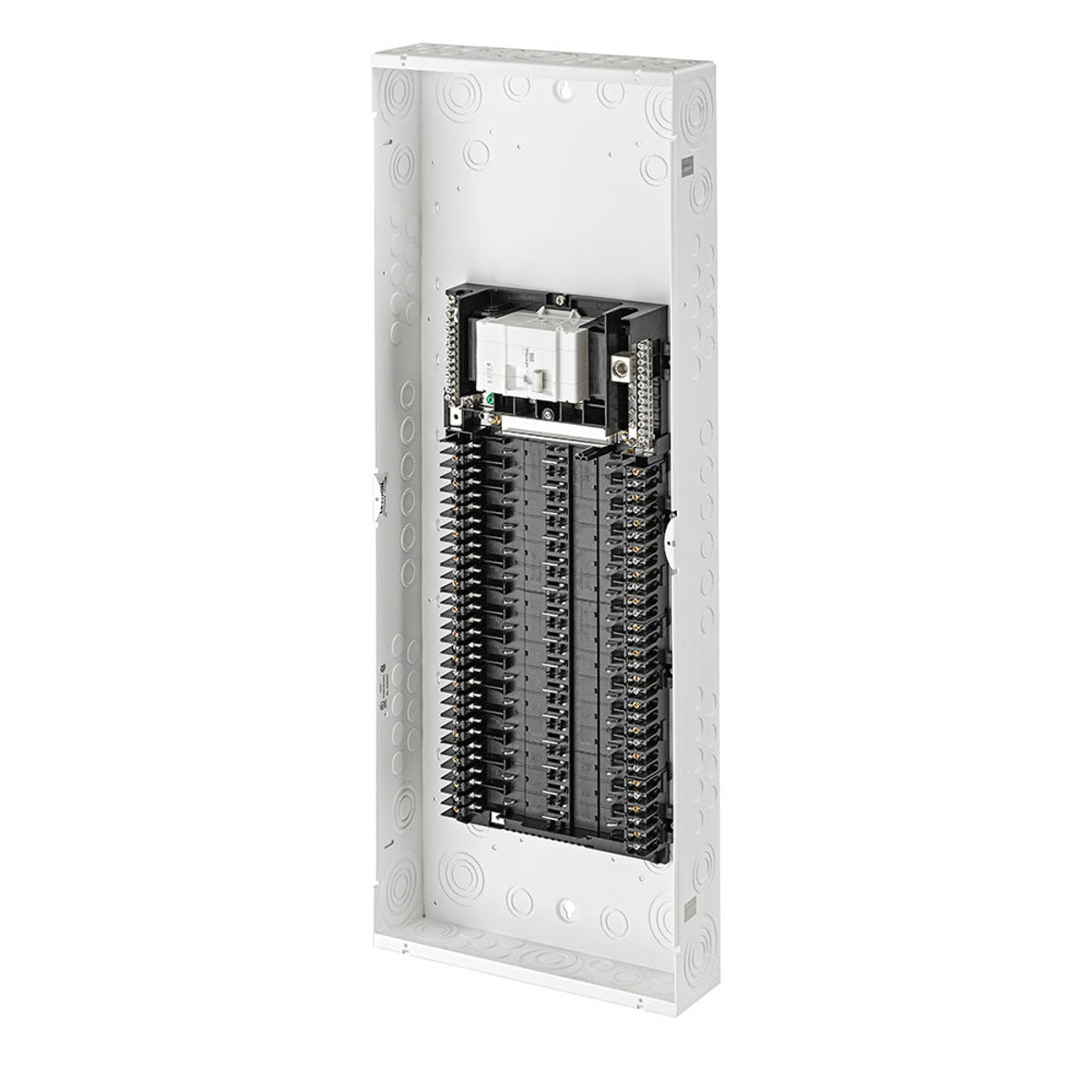

The Leviton LP320-BPD is a load center designed for indoor use with a main breaker. It operates at 120/240 VAC and has a capacity of two hundred amps. This load center is equipped with thirty spaces and is rated NEMA 1 for standard indoor applications. The unit supports a variety of wiring needs with a focus on safety and functionality.

• Rated for two hundred amps.
• Includes thirty spaces for circuit breakers.
• Enclosure is made of galvanized steel with a powder coat finish.

Product Highlights

The Leviton LP320-BPD integrates modern features for ease of installation and maintenance. It includes an observation window for monitoring circuit status and supports an intuitive design for wiring.

Product Information

Standard Information

• Manufacturer: Leviton
• Type: Load Center with Main Breaker

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 Amps
• Breaker Mounting: Plug-On
• Busbar Material: Copper, Bright Tin-Plated
• Enclosure Material: Galvanized Steel, White Powder Coat
• Interrupt Rating: 22 kA
• Dimensions: 37.15 inches x 14.25 inches x 3.85 inches
• Ground Connection: 4 AWG - 2/0 AWG Cu/Al
• Supply Connections: 3 AWG - 300 MCM Cu/Al
• Number of Circuits: 30
