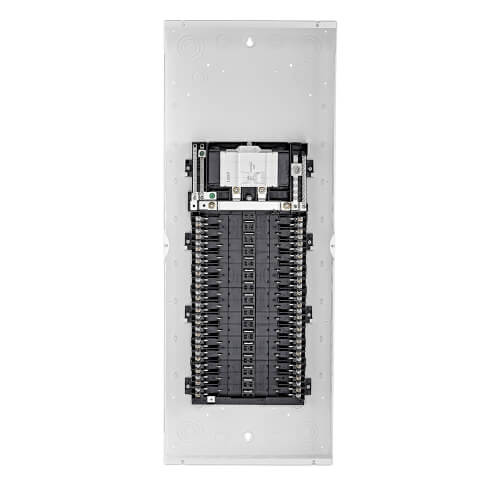

Leviton LP312-BPD Main Breaker Load Center 125 Amp 30 Space NEMA 1

Product Description

The Leviton LP312-BPD is an indoor main circuit breaker load center. It is designed for use with 120/240 VAC electrical systems and has a 125 Amp rating. The load center features 30 spaces for circuit breakers and is housed in a NEMA 1 enclosure.

• Easy installation without breakers during rough-in.
• Intuitive LED indicators for trip conditions.
• Ground connection supports multiple wire sizes.

Product Highlights

This load center is efficient and reliable, equipped with robust copper busbars for superior conductivity.

Product Information

Standard Information

• Brand: Leviton
• Type: Main Breaker, Indoor

Technical Specifications

• MPN: LP312-BPD
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 AMP
• Bus Rating: 225 Amp
• Interrupt Rating: 22 kA
• Enclosure Material: Galvanized Steel
• Dimensions: 37 Height x 14.25 Width x 4 Depth Inches
• Number of Spaces: 30
• Ground Connection: 4 AWG - 2/0 AWG Cu/Al
• Supply Connections: 3 AWG - 300 MCM Cu/Al
• Standards & Certifications: UL 50; UL 50E; UL 67; UL 869A
• Warranty: 10-Year Limited Warranty
