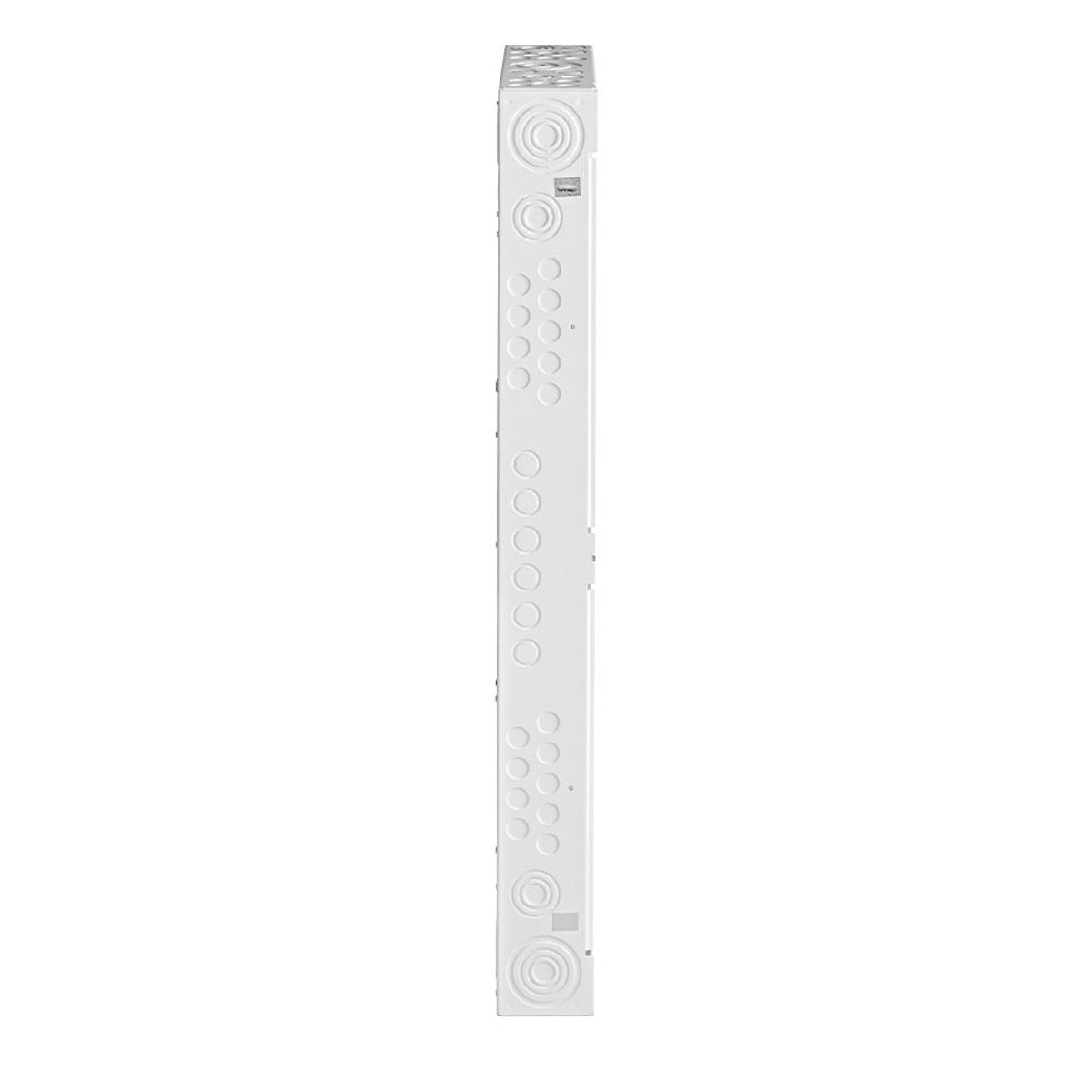

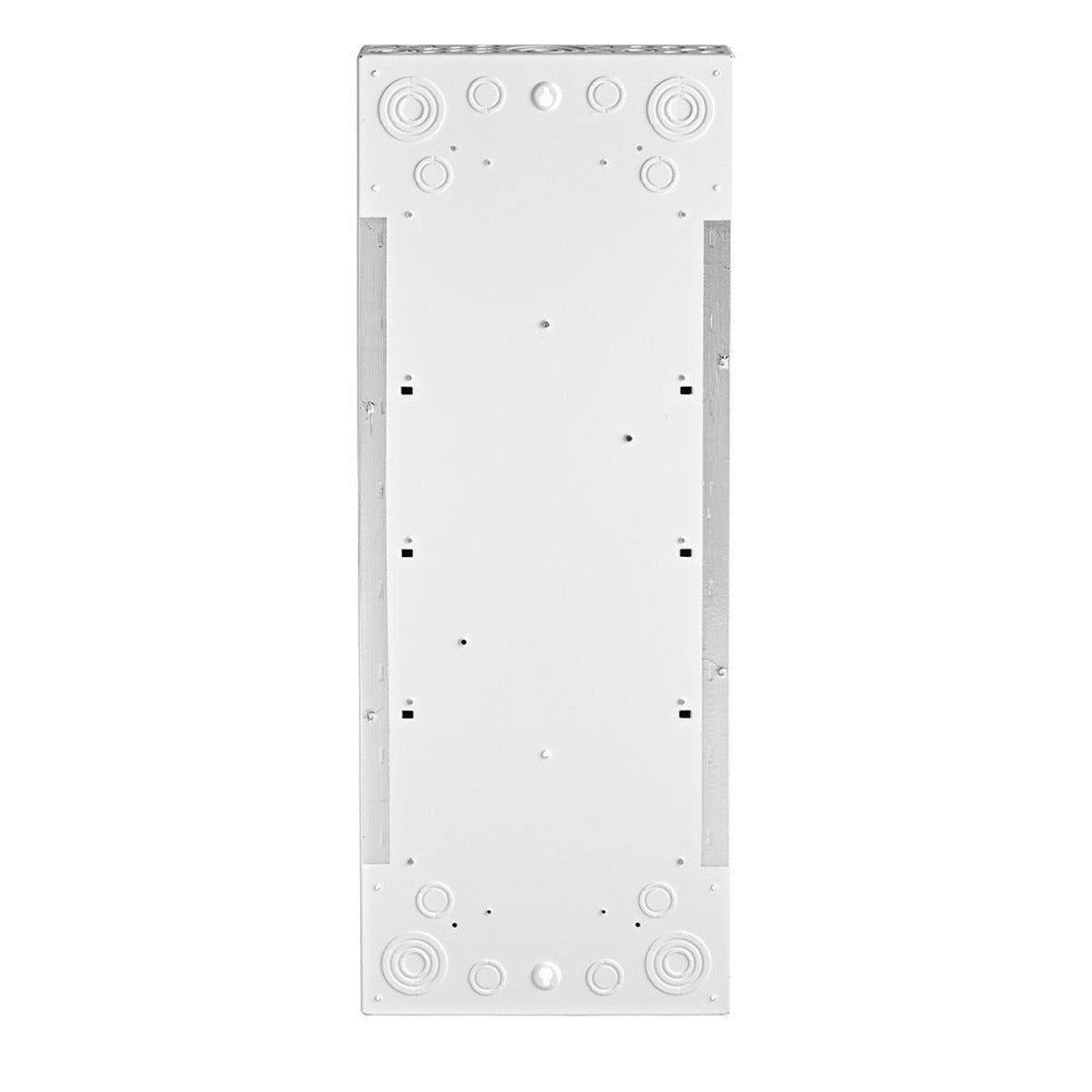

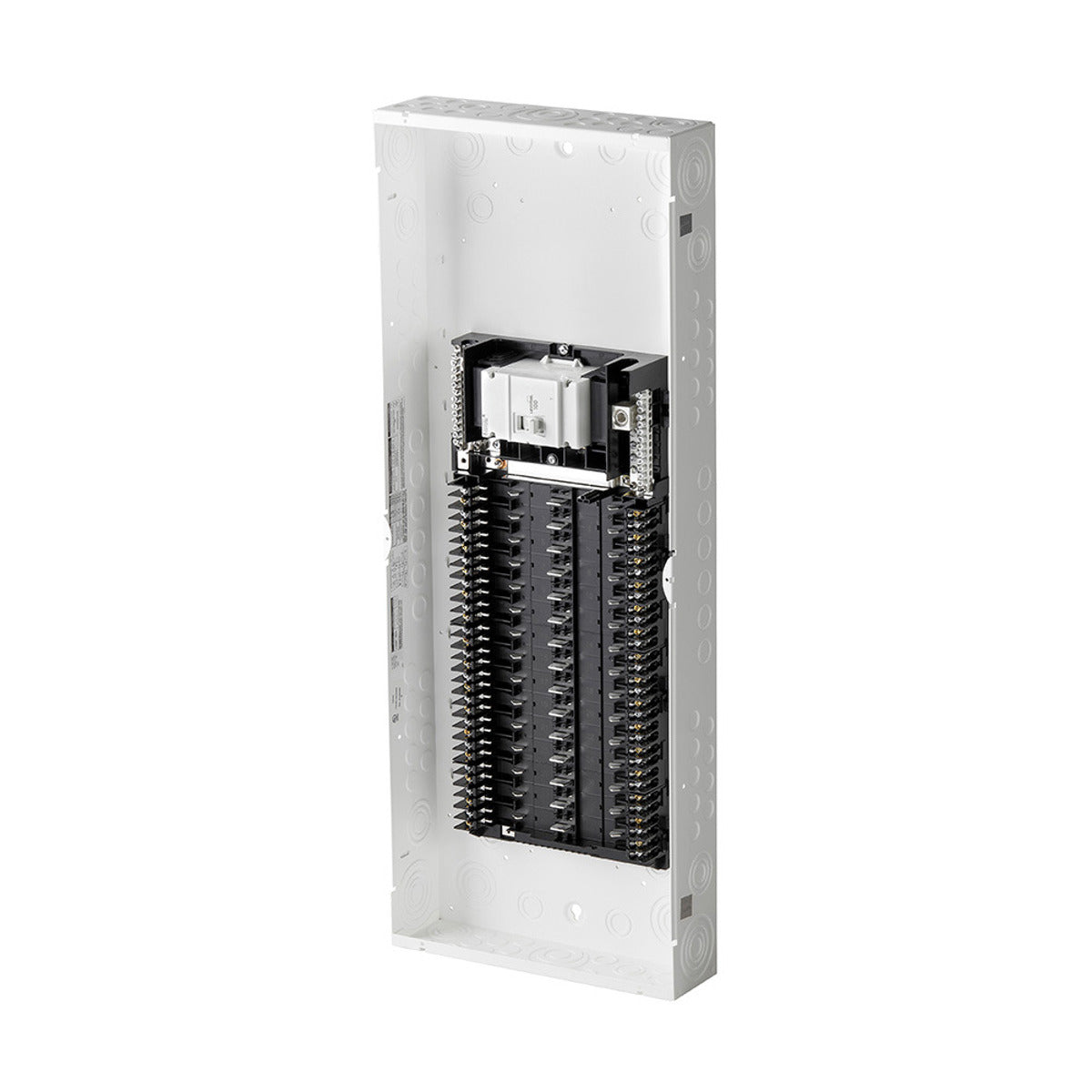

Leviton LP310-BPD Load Center with Main Breaker, 120/240 VAC, 100 Amp, 30 Spaces, NEMA 1

Product Description

The Leviton LP310-BPD is an indoor load center designed for electrical applications. It features a main breaker rated at one hundred amps at one hundred twenty to two hundred forty volts. This load center offers thirty spaces for circuit breakers, making it suitable for various residential and commercial installations. The NEMA 1 rating indicates that it is designed for indoor use only.

• Factory-installed main circuit breaker rated at 100 amps
• Thirty breaker spaces for versatility in circuit management
• Constructed with galvanized steel for durability

Product Highlights

Leviton's load centers are known for their operational efficiency and ease of installation. They are designed with features that simplify wiring and enhance safety.

Product Information

Standard Information

• Brand: Leviton
• MPN: LP310-BPD

Technical Specifications

• Type: Load Center with Main Breaker
• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 Amps
• Number of Spaces: 30
• Interrupt Rating: 22 kA
• Dimensions: 37.15 inches x 14.25 inches x 3.85 inches
• Enclosure Type: NEMA 1 Indoor
• Ground Connection Size: 4 AWG - 2/0 AWG Cu/Al
• Supply Connections: 3 AWG - 300 MCM Cu/Al
