Leviton LP310-BPD Load Center with Main Breaker 100 Amp 30 Spaces NEMA 1

Product Description

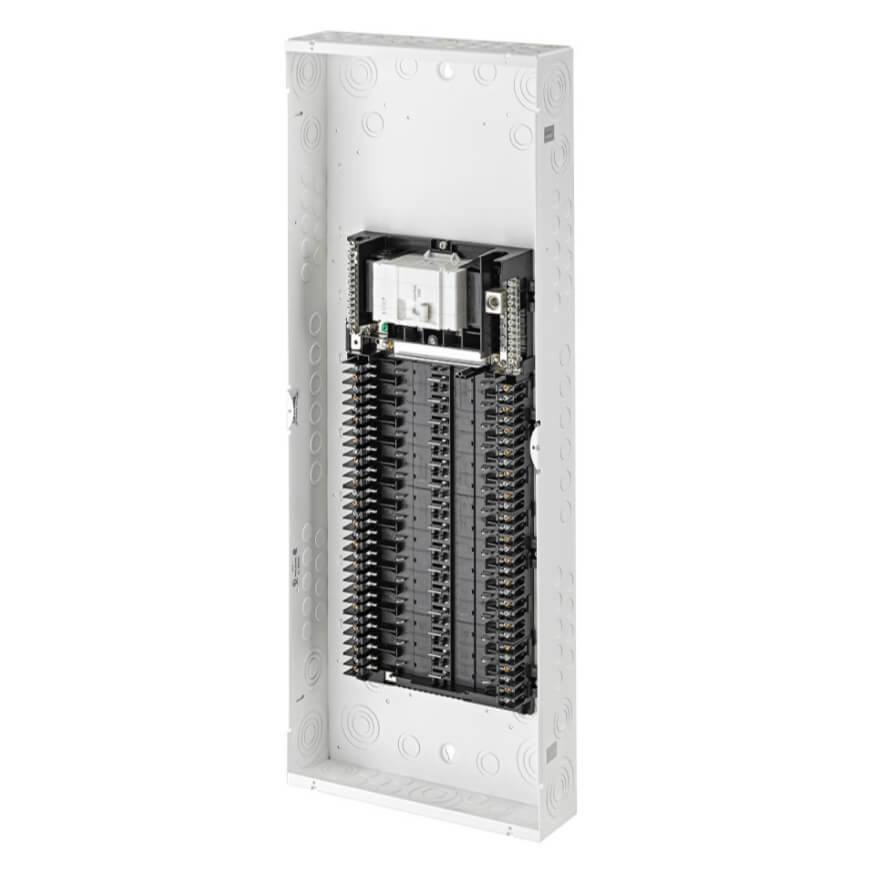

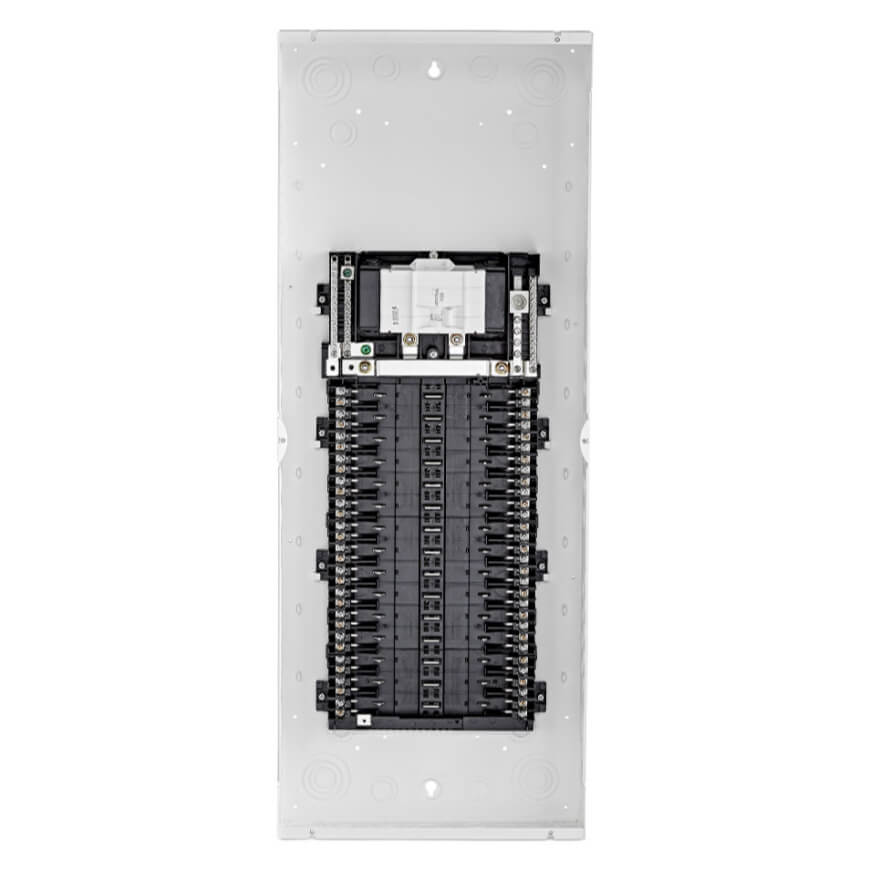

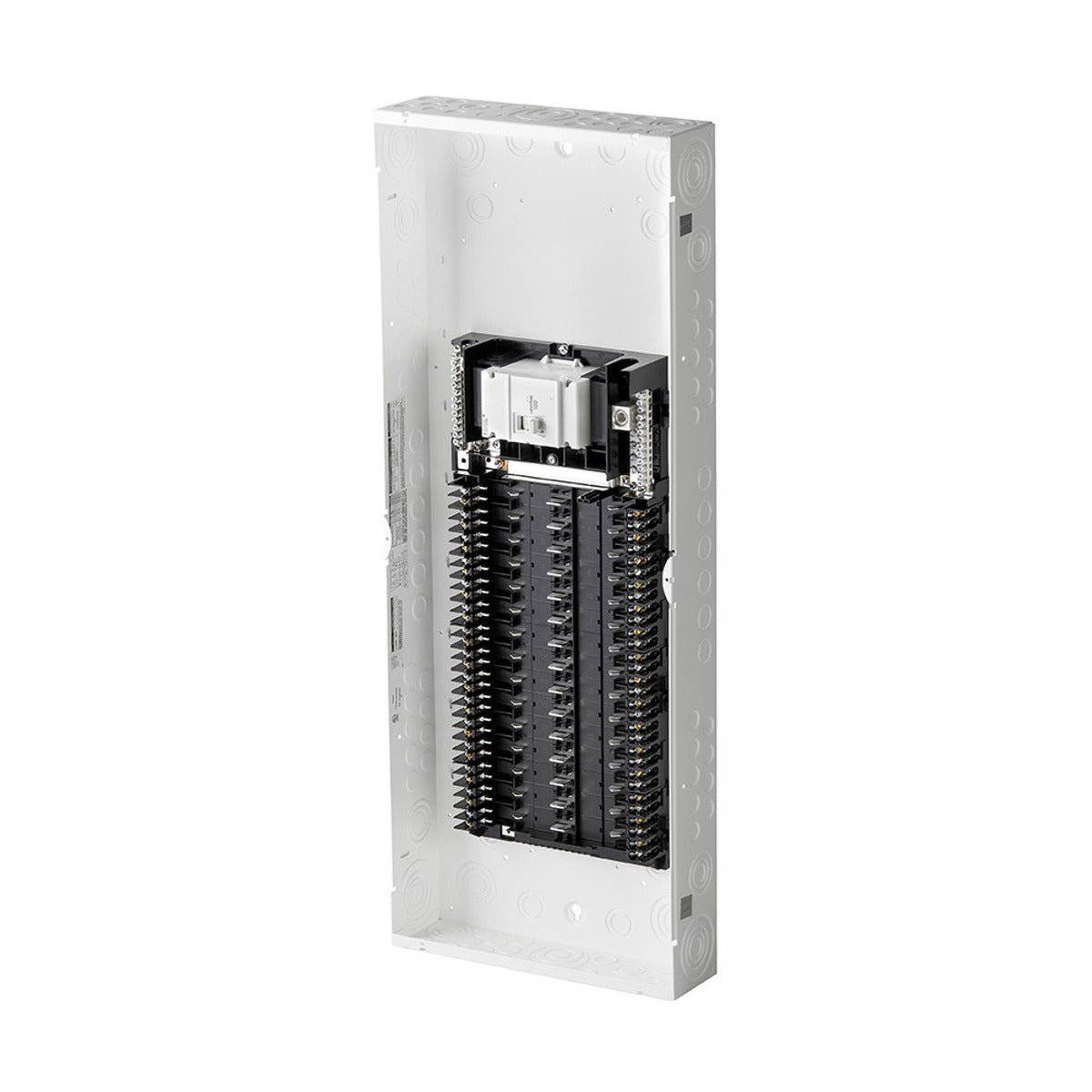

The Leviton LP310-BPD is an indoor load center with a main breaker, designed for 120/240 VAC, 100 A, and 30 spaces. It features a 22 kA interrupt rating and a NEMA 1 enclosure. It is suitable for flush or surface mounting. The load center is easy to install and has a modern, appealing unit.

• Terminate all hot and neutral wires at custom lugs in the panel.
• Intuitive LEDs help communicate trip condition and type of fault.
• The entire panel can be wired at rough-in without circuit breakers installed.

Product Highlights

Leviton indoor load centers offer easy installation and a modern design. They feature a white enclosure and optional observation window for at-a-glance operating status.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LP310-BPD
• Country of Origin: Mexico

Technical Specifications

• Type: Load Center with Main Breaker
• Bus Rating: 225 Amp
• Manufacturer: LEVITON
• Mounting Type: Flush/Surface
• Enclosure Type: NEMA 1 Indoor
• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 Amp
• Breaker Mounting: Plug-On
• Housing Material: Galvanized Steel, White Powder Coat
• Interrupt Rating: 22 kA
• Number of Spaces: 30
• Number of Circuits: 30
• Country of Origin: Mexico
• Temperature Rating: -40 to 70 deg C
• Conductor Size: 4-2/0 AWG Cu/Al Ground, 3 AWG-300 MCM Cu/Al Supply
• Construction: Galvanized Steel
• Standards & Certifications: UL 67, UL 50, UL 50E, UL 869A Listed
• Manufacturer Part Number: LP310-BPD
• Brand Name: Leviton
• Operating Temperature: -40 C to 85 C
• Short Circuit Current Rating: 22 KA
• Busbar Material: Copper, Bright Tin-Plated
• Ground Connection: 4 AWG - 2/0 AWG Cu/Al
• Supply Connections: 3 AWG - 300 MCM Cu/Al
• Material: Copper
• Maximum Current: 100 Amps
• Phase Type: Three Phase
• Material Type: Copper
