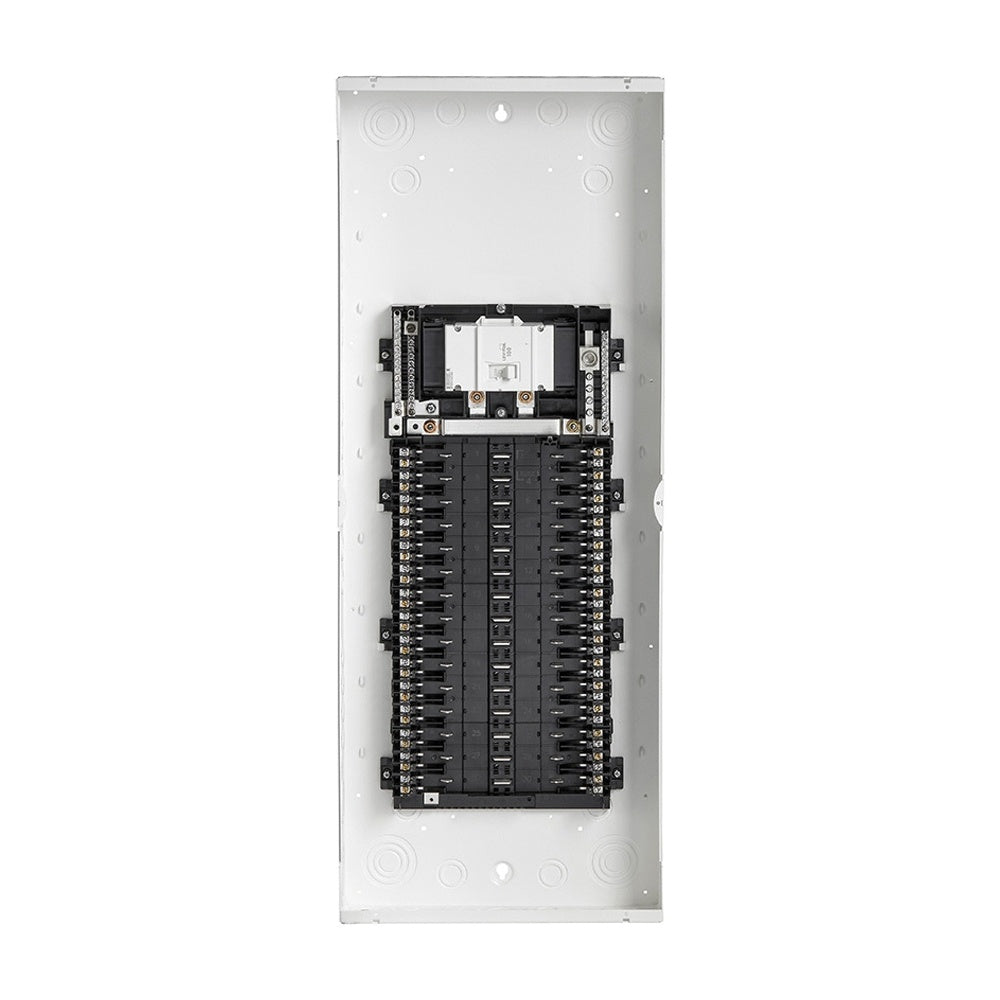

Leviton LP310-BPD Load Center with Main Breaker, 100 Amp, 30 Spaces, NEMA 1

Product Description

Leviton LP310-BPD is a load center with a main circuit breaker designed for indoor use. It operates on a voltage of 120/240 VAC and provides a capacity of 100 amps. The load center has 30 spaces for circuit breakers, ensuring ample room for electrical circuits. This model is suitable for residential and commercial applications.

• Easy installation without circuit breakers prior to wiring.
• Standard with copper bus for superior conductivity.
• UL listed for safety and reliability.

Product Highlights

The Leviton LP310-BPD load center features a sleek white powder-coated finish, encapsulating cutting-edge design and functionality. It allows for bottom feed and includes an NEMA 1 rated enclosure.

Product Information

Standard Information

• Manufacturer: Leviton
• MPN: LP310-BPD

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 Amps
• Bus Rating: 225 Amps
• Number of Spaces: 30
• Dimensions: 37 inches x 14.25 inches x 4 inches
• Material: Galvanized Steel
• Operation Temperature: -40 degrees Celsius to 70 degrees Celsius
• Interrupt Rating: 22 kA
• Enclosure Type: NEMA 1 Indoor
