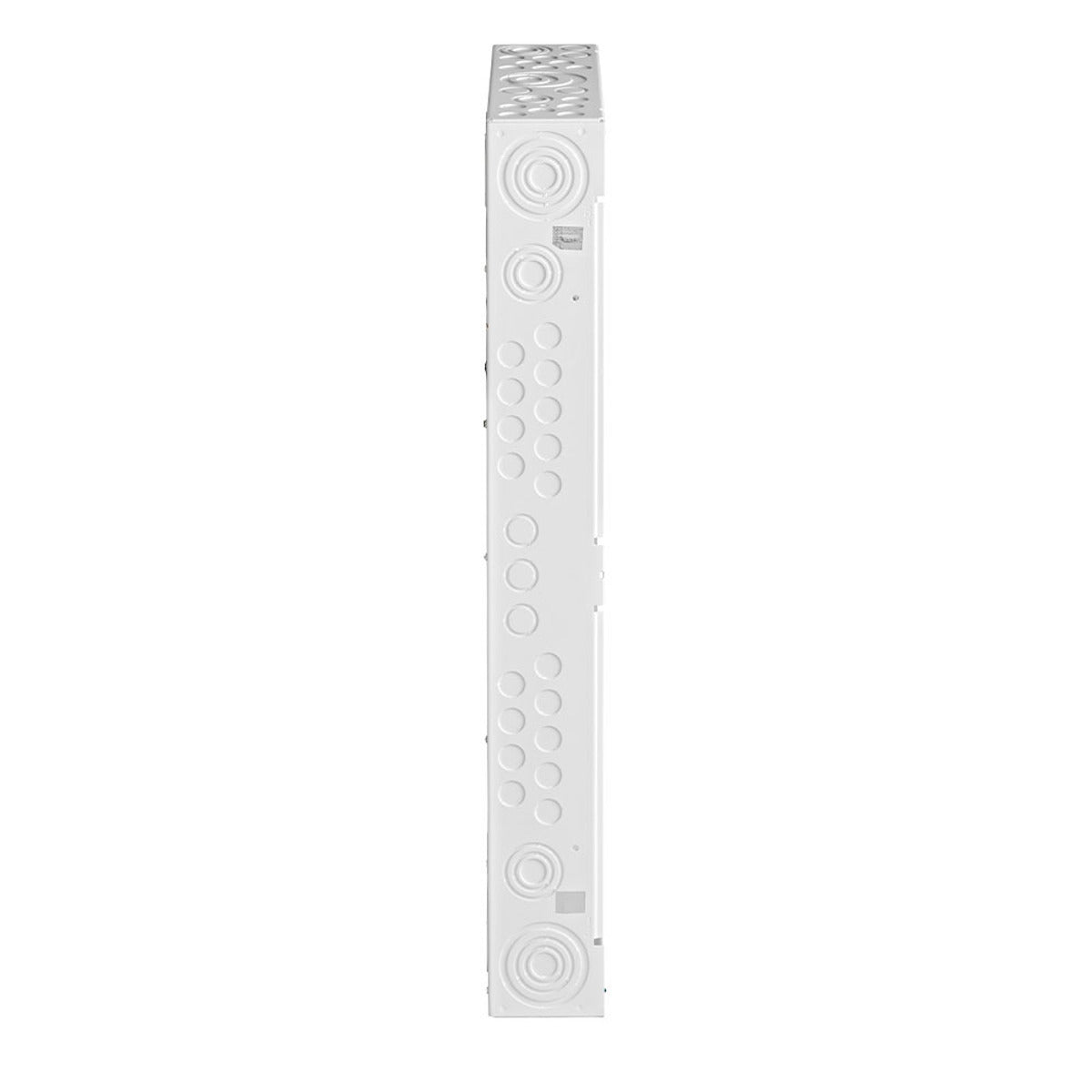

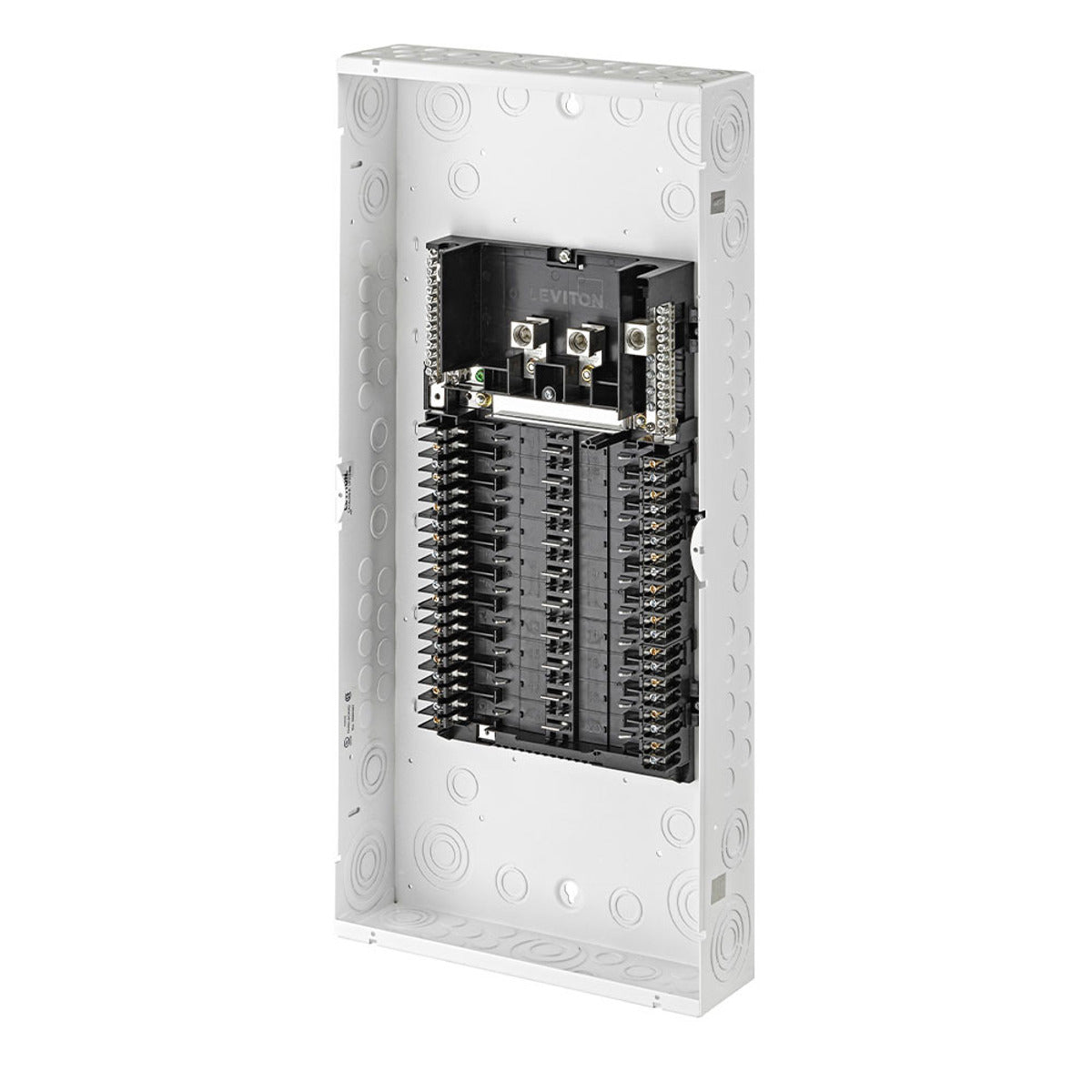

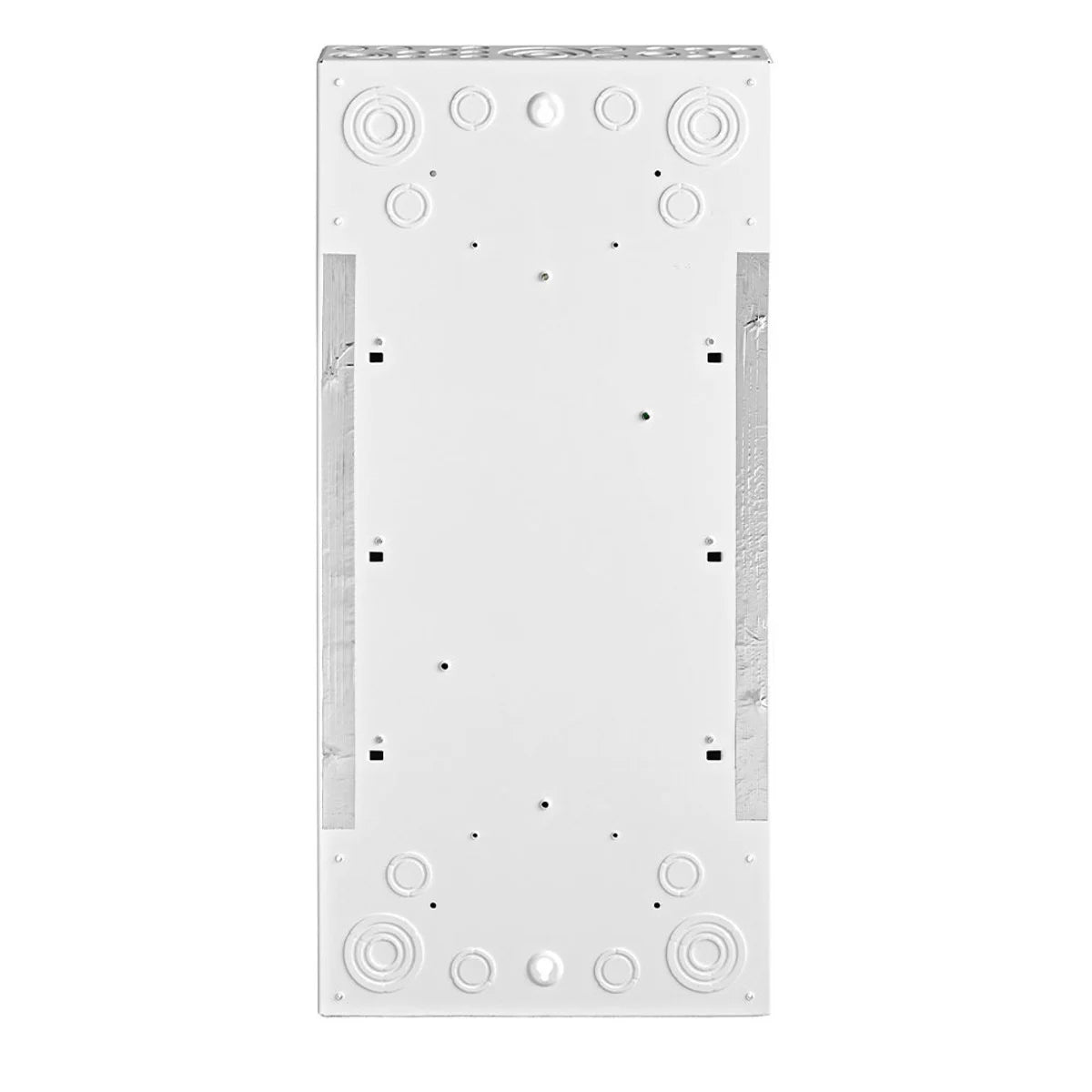

Leviton LP222-LPD Load Center with Main Lugs 225A 20 Spaces

Product Description

The Leviton LP222-LPD is a Load Center with Main Lugs, designed for indoor use with a rating of 225 Amps and a voltage of 120/240 VAC. This model features a white powder-coated finish and is equipped for 20 circuit spaces. It can be easily converted to a main breaker unit. The load center is suitable for various electrical applications within residential and commercial settings.

• Convert between main lug and main breaker configurations.
• Includes enclosure and interior; door sold separately.
• Designed for easy installation with no circuit breakers required during rough-in.

Product Highlights

The load center offers superior conductivity with tin-plated copper busbars and a compact design for efficient space utilization.

Product Information

Standard Information

• Type: Load Center with Main Lugs
• Manufacturer: Leviton

Technical Specifications

• Bus Rating: 225 Amps
• Voltage Rating: 120/240 VAC
• Dimensions: 30 inches H x 14.25 inches W x 4 inches D
• Material: Galvanized Steel with White Powder Coat
• Ground Connection: 4 AWG - 2/0 AWG Cu/Al
• Operating Temperature: -40°C to 70°C
• Interrupt Rating: 10 kA
• NEMA Rating: NEMA 1
• Number of Spaces: 20
