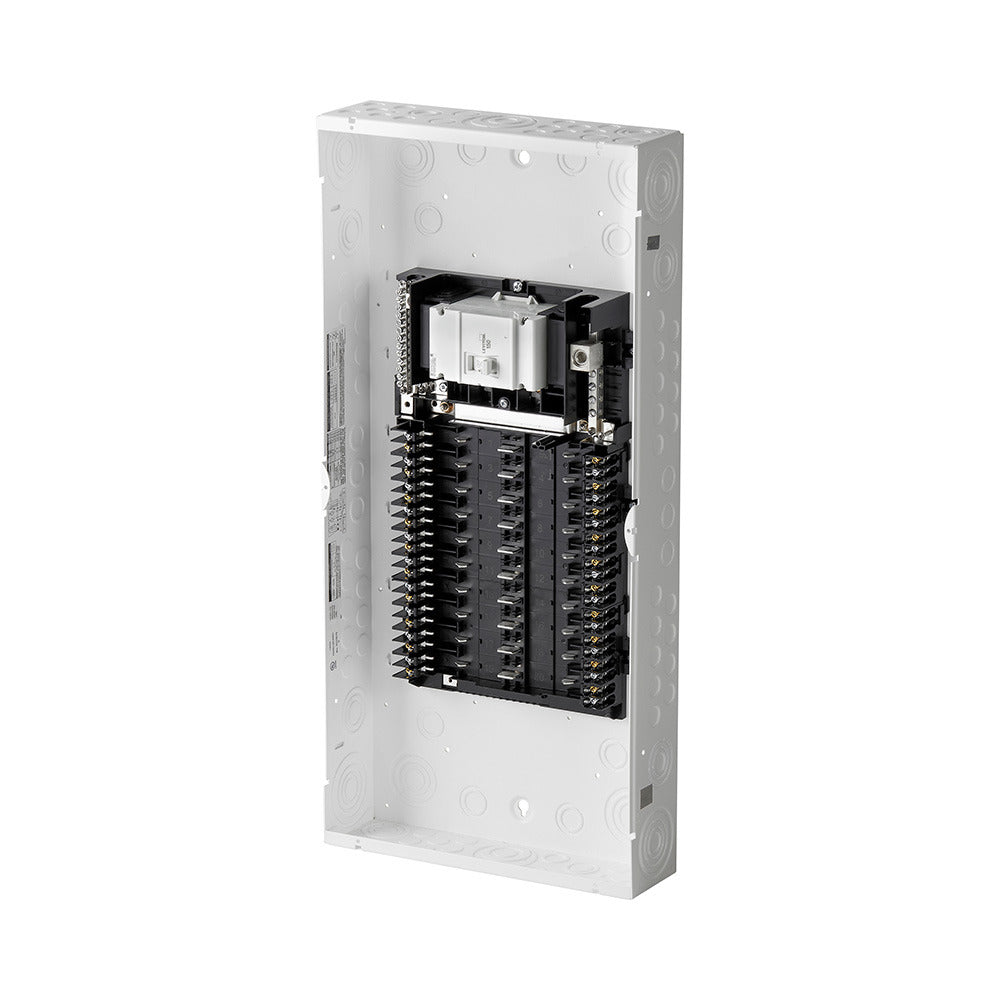

Leviton LP215-BPD Load Center with Main Breaker 150 Amp 20 Spaces NEMA 1

Product Description

Leviton LP215-BPD is a load center equipped with a main circuit breaker rated at one hundred fifty amps. It is designed for indoor use and supports both one-phase and three-wire configurations. This load center can handle up to twenty circuits, making it suitable for various electrical applications. The NEMA 1 enclosure ensures protection against dust and indirect exposure to moisture.

• Features a factory-installed main breaker for easy installation.
• Supports up to 225 amps of bus rating for reliable performance.
• Includes enclosure and interior components; door sold separately.

Product Highlights

The Leviton LP215-BPD load center is designed for easy installation and efficient operation. It can be wired during rough-in without circuit breakers present, ensuring a streamlined setup process.

Product Information

Standard Information

• Manufacturer: Leviton
• Voltage Rating: 120/240 VAC

Technical Specifications

• Amperage Rating: 150 Amps
• Spaces: 20
• Dimensions: 30.15 inches x 14.25 inches x 3.85 inches
• Interrupt Rating: 22 kA
• Enclosure Material: Galvanized Steel with White Powder Coat
• Busbar Material: Copper, Bright Tin-Plated
• Ground Connection: 4 AWG - 2/0 AWG Cu/Al
• Supply Connections: 3 AWG - 300 MCM Cu/Al
• Operating Temperature: -40°F to 185°F
