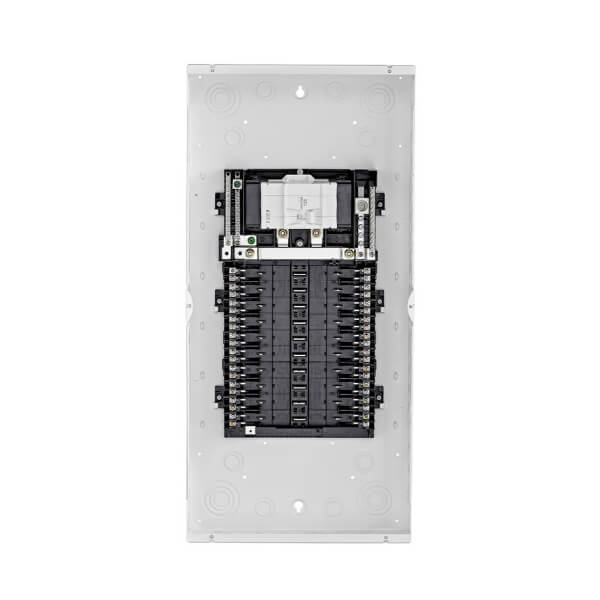

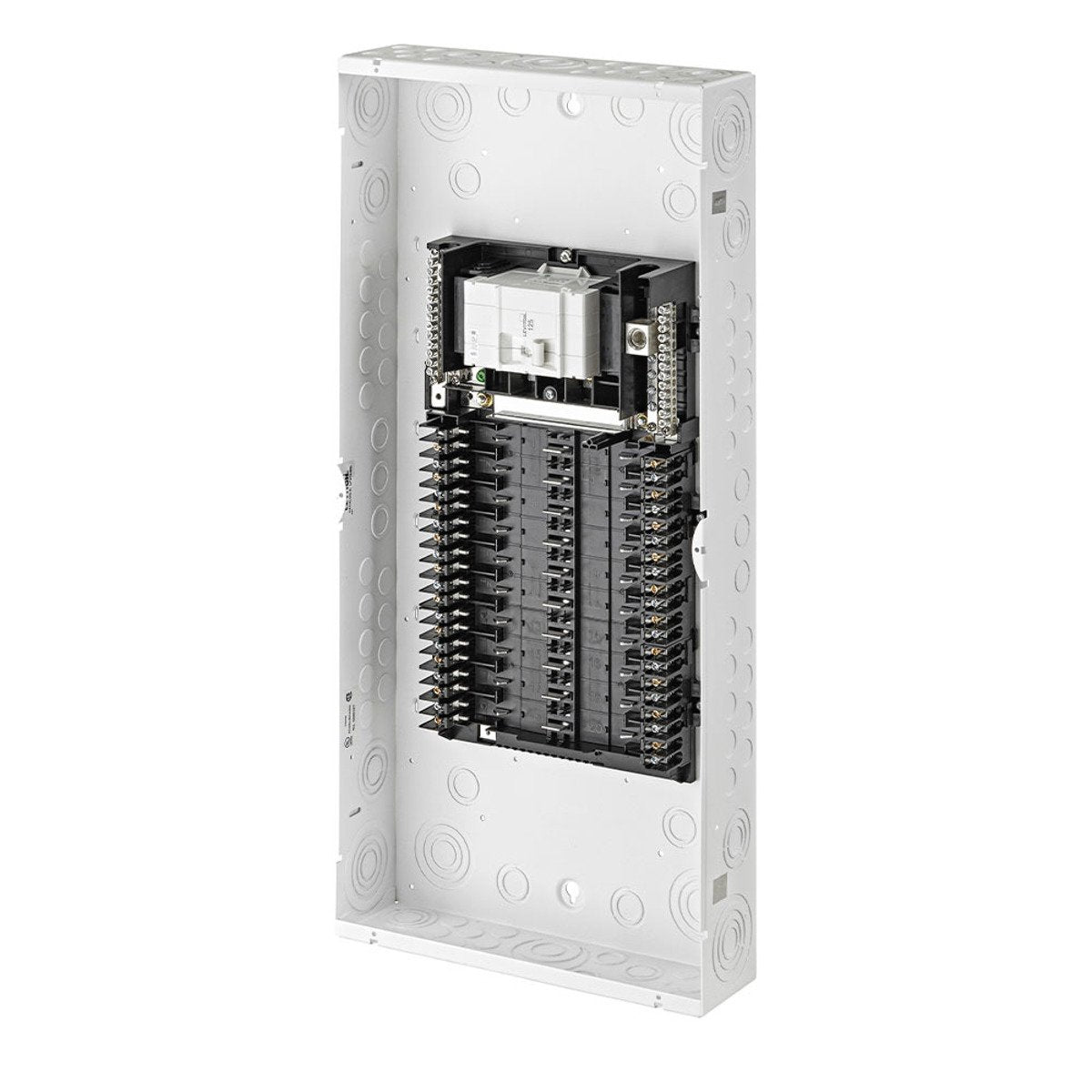

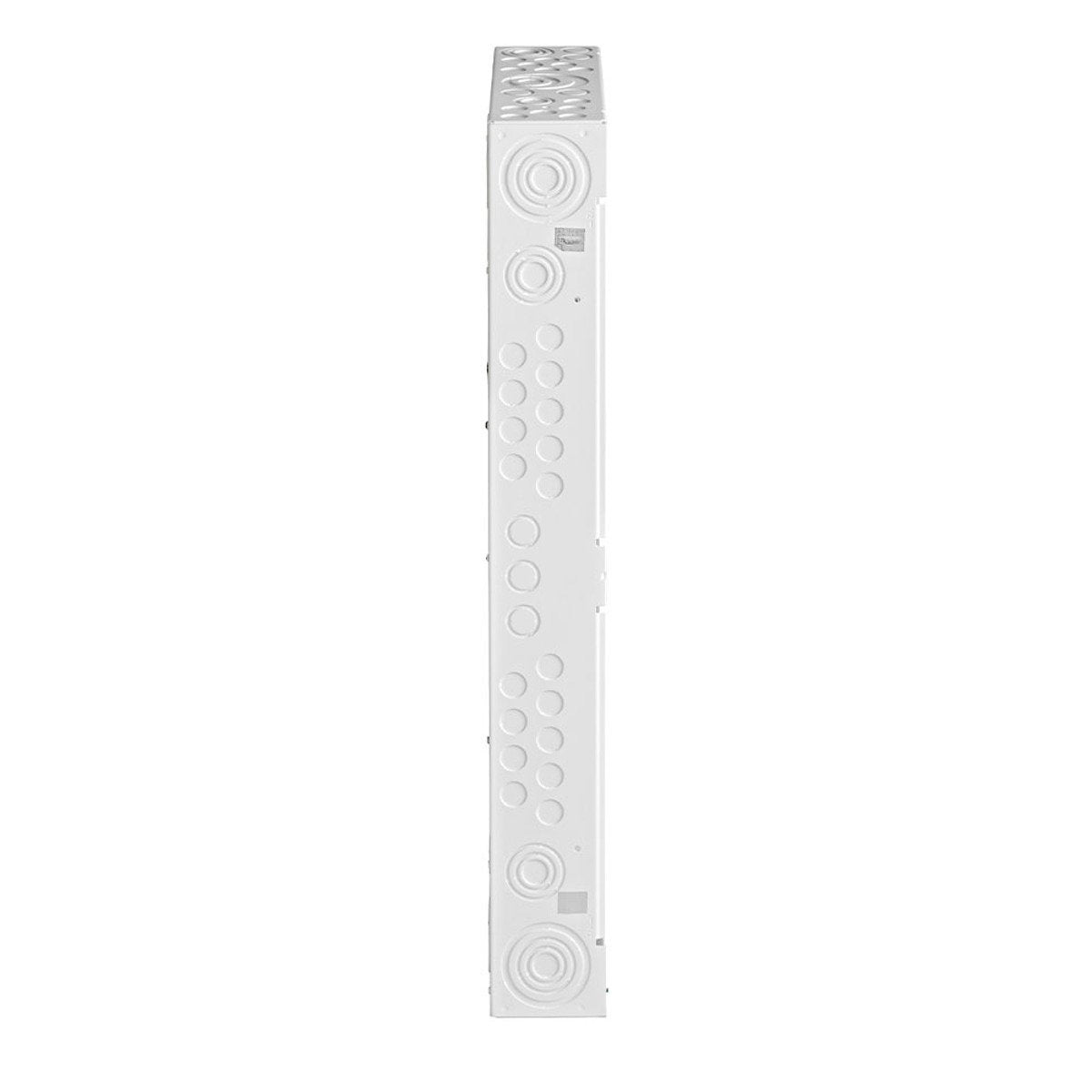

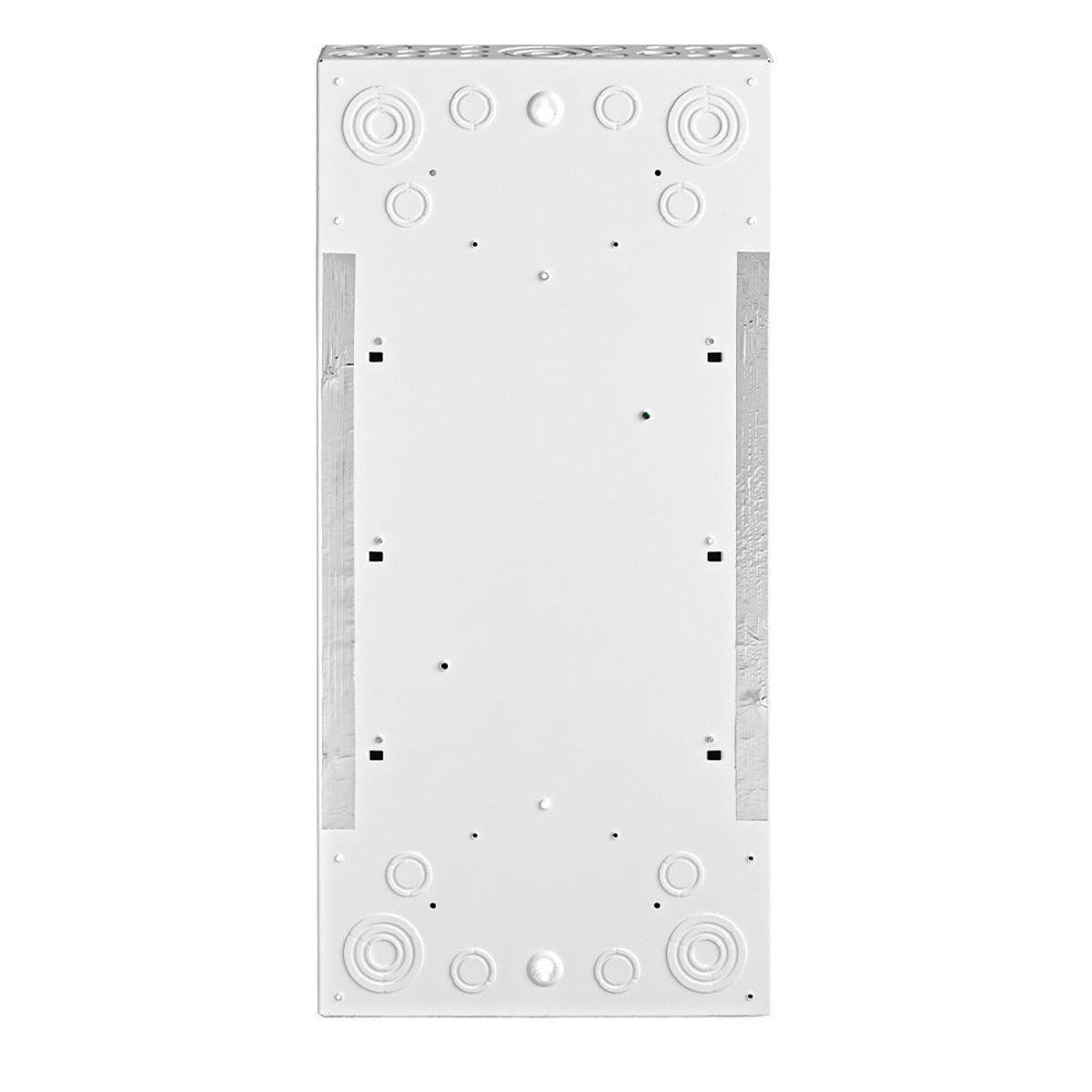

Leviton LP212-BPD Load Center with Main Breaker, 120/240 VAC, 125 Amp, 20 Spaces, NEMA 1

Brand: LEVITON
SKU: LP212-BPD
Availability: In Stock
truck-svgrepo-com

Ships in 1-2 business days

$221.85
$221.85
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Leviton LP212-BPD Load Center with Main Breaker is designed for indoor use with a voltage rating of one hundred twenty-over two hundred forty VAC. This model supports a maximum amperage of one hundred twenty-five amps and features twenty spaces for circuit breakers. It is suitable for residential or commercial applications, providing reliable power distribution.

  • Includes enclosure and interior only; door sold separately
  • Features a copper bus with a rating of two hundred twenty-five amps
  • Designed for flush or surface mounting as needed

Product Highlights

The LP212-BPD is built for easy installation and operation, ensuring organized wiring with notches for cable ties and an optional window for monitoring circuit status.

Product Information

Standard Information

  • Manufacturer: Leviton
  • Part Number: LP212-BPD

Technical Specifications

  • Amperage Rating: 125 A
  • Voltage Rating: 120/240 VAC
  • Number of Spaces: 20
  • Interrupt Rating: 22 kA
  • Dimensions: 30.15 inches x 14.25 inches x 3.85 inches
  • Enclosure Material: Galvanized Steel with White Powder Coat
  • Busbar Material: Copper, Bright Tin-Plated
  • Ground Connection: 4 AWG - 2/0 AWG Cu/Al
