Product Description

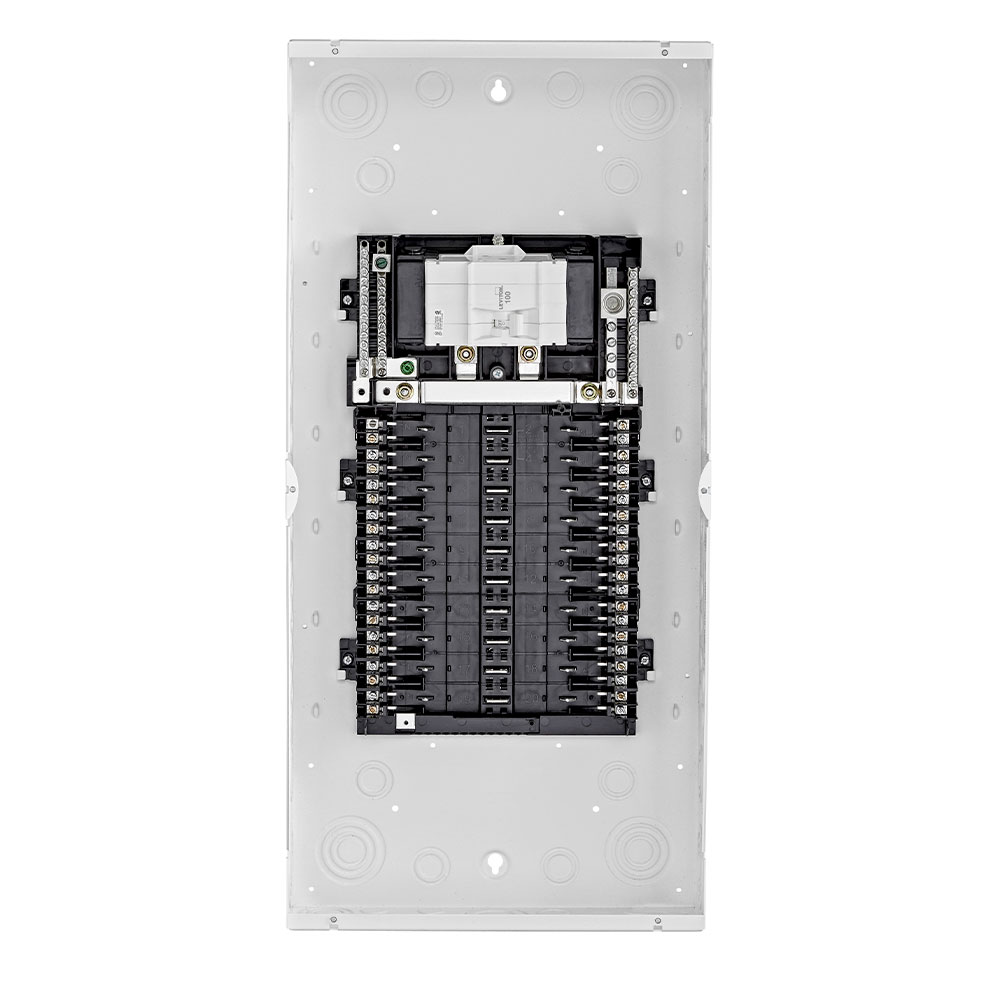

Leviton LP210-BPD Load Center is a reliable and efficient solution for electrical distribution. This indoor load center features a main circuit breaker rated for 100 amps and 20 spaces. The configuration accommodates both 120 and 240 VAC. The unit is designed for ease of installation and uses copper bus material, ensuring excellent conductivity.
- Rated for indoor use with a NEMA 1 enclosure
- Built-in LEDs indicate trip conditions
- Designed for flush or surface mounting options
Product Highlights
The Leviton LP210-BPD is perfect for residential and commercial applications requiring a robust and user-friendly load center. Its modern design, featuring a powder-coated finish, allows for a neat appearance while maintaining high performance.
Product Information
Standard Information
-
Manufacturer: Leviton
-
Model Number: LP210-BPD
Technical Specifications
-
Type: Load Center with Main Breaker
-
Amperage Rating: 100 Amp
-
Voltage Rating: 120/240 VAC
-
Number of Spaces: 20
-
Enclosure Type: NEMA 1 Indoor
-
Bus Rating: 225 Amp
-
Dimensions: 30.15 inches x 14.25 inches x 3.85 inches
-
Interrupt Rating: 22 kA
-
Operating Temperature: -40 degrees C to 70 degrees C
