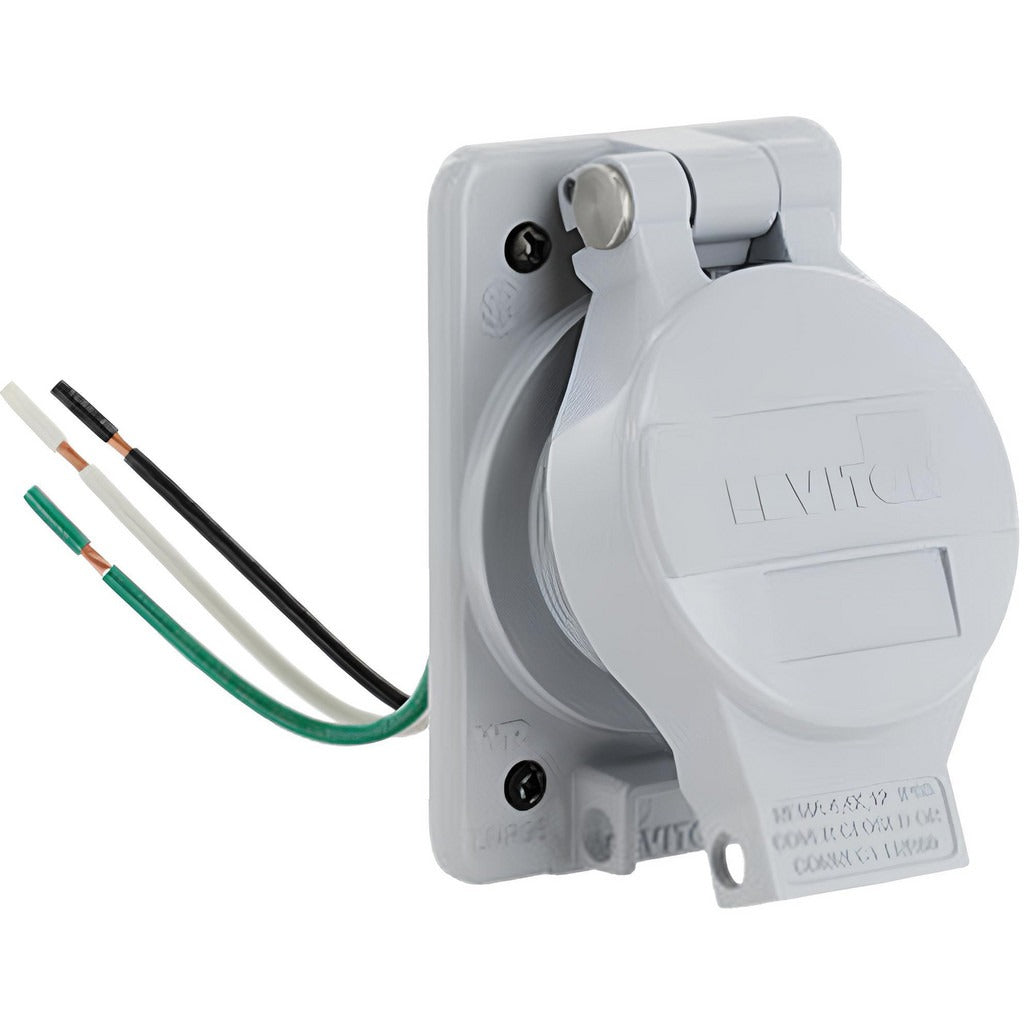

Leviton LNR96-3 Single Receptacle 20A 125V Nema 5-20R Gray

Product Description

The LEVITON LNR96-3 is a straight blade single receptacle rated at 20 amps and 125 volts AC, configured to the NEMA 5-20R standard. Built to industrial grade, this outlet features an aluminum body and gray finish designed to withstand demanding environments. It is a 2-pole, 3-wire, single-phase device intended for commercial and industrial electrical installations where a reliable, code-compliant 20-amp outlet is required. Licensed electricians install this receptacle as a direct replacement or new-installation outlet in panels, junction applications, or standard wall-box configurations.

This receptacle is suited for commercial, industrial, and heavy-duty residential applications where 20-amp, 125-volt single-phase power is required. Its NEMA 5-20R configuration accepts both standard 15-amp and 20-amp straight blade plugs, making it appropriate for equipment circuits, workshop feeds, and utility outlets. The non-flanged, back-wiring design fits standard electrical boxes and is commonly specified in facilities maintenance, industrial controls, and equipment room installations.

Key Features

• NEMA 5-20R configuration accepts 15-amp and 20-amp straight blade plugs
• Industrial grade aluminum body for durability in demanding environments
• Rated 20 amps at 125 volts AC, single phase
• 2-pole, 3-wire configuration for grounded circuit installations
• Back-wiring method for efficient installation in standard electrical boxes
• Meets ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, and UL 498 standards

Compatibility

Designed as an OEM-style replacement or new-installation outlet for industrial and commercial single-phase 20-amp, 125-volt circuits requiring a NEMA 5-20R straight blade receptacle.

Installation Notes

Installation should be performed by a licensed electrician in compliance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit at the breaker panel and verify the circuit is dead with a voltage tester before beginning work. Secure all wiring connections according to the back-wiring method before mounting the receptacle in the electrical box. Do not install on circuits exceeding the 20-amp, 125-volt rating of this device.
