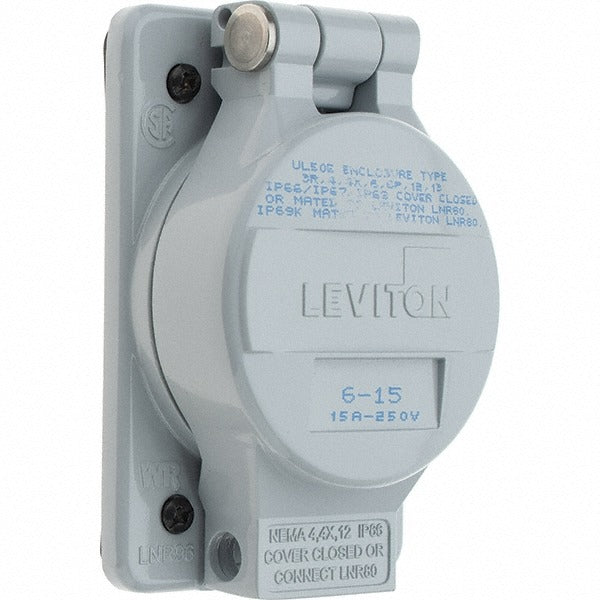

Leviton LNR96-2 Single Receptacle Nema 6-15R 15A 250V

Product Description

The LEVITON LNR96-2 is an industrial-grade straight blade single receptacle rated for 15 amps at 250 volts AC, configured to NEMA 6-15R. Built with an aluminum body, it is designed for durability in demanding electrical installations. The receptacle features a 2-pole, 3-wire, single-phase configuration and supports back wiring for clean, efficient termination. It carries a gray finish and is non-flanged. Licensed electricians install this device in industrial and commercial environments where 250-volt, 15-amp service is required for equipment such as power tools, lab instruments, and industrial machinery.

The LNR96-2 is suited for industrial and commercial applications requiring a NEMA 6-15R outlet configuration. Typical installations include workbench circuits, equipment panels, and service drops where 250-volt single-phase power is delivered to connected loads. Its compact form fits standard single-gang wiring device boxes. This receptacle is appropriate wherever a code-compliant, industrial-rated outlet is specified for 15-amp, 250-volt branch circuits.

Key Features

• NEMA 6-15R configuration: 2-pole, 3-wire, 250 volts AC, 15 amps
• Industrial grade for use in heavy-duty commercial and industrial environments
• Aluminum body construction for long service life
• Back wiring method for efficient termination
• Non-flanged single receptacle for standard box mounting
• Meets ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, and UL 498 standards

Compatibility

Designed as an OEM-style replacement or new-installation single receptacle for NEMA 6-15R applications in single-phase, 250-volt, 15-amp branch circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the branch circuit at the panel before wiring or replacing this device. Verify the circuit is rated for 250 volts AC and 15 amps before connecting. Use wire connectors and torque terminal screws per the wiring device manufacturer guidelines found on the product packaging.
