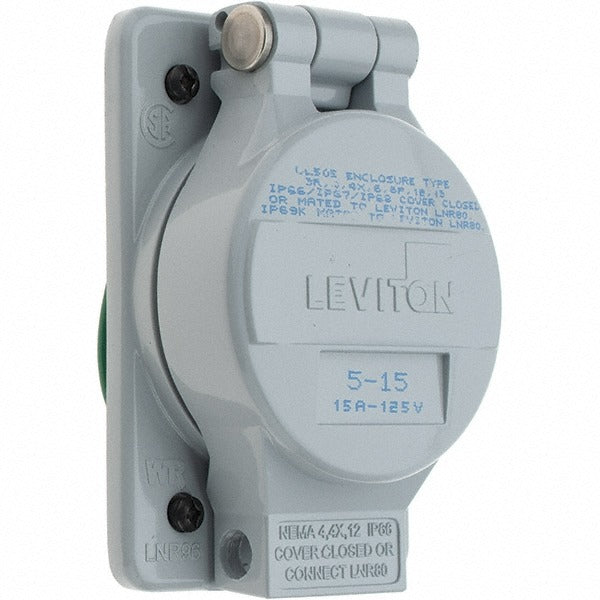

Leviton LNR96-1 Single Receptacle Nema 5-15R 15A 125V

Product Description

The LEVITON LNR96-1 is an industrial-grade straight blade single receptacle rated for 15 amps at 125 volts AC with a NEMA 5-15R configuration. Built with an aluminum body, this receptacle is designed for demanding commercial and industrial environments where durability and code compliance are required. It features a back-wiring method and a 3-wire, 2-pole, single-phase design. Licensed electricians and maintenance electricians install this device as a replacement or new-construction outlet in industrial panels, equipment drops, and facility wiring applications. Its gray finish and unflanged profile suit standard electrical box installations.

This receptacle is suited for industrial facilities, commercial buildings, and equipment installations requiring a reliable 15-amp, 125-volt single outlet. Its industrial grade rating makes it appropriate for applications where a residential-grade device would be undersized or non-compliant. The back-wiring method supports straightforward field termination in standard single-gang or multi-gang box configurations.

Key Features

• Industrial-grade aluminum body construction for durability in demanding environments
• NEMA 5-15R configuration rated at 15 amps and 125 volts AC
• Single-phase, 2-pole, 3-wire design with back-wiring termination
• Unflanged profile fits standard electrical box installations
• Meets ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, and UL 498 standards

Compatibility

Designed as an OEM-style replacement or new-installation single receptacle for industrial and commercial electrical systems requiring a NEMA 5-15R, 15-amp, 125-volt outlet.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker and verify absence of voltage with a meter before handling any wiring connections. The back-wiring method requires proper conductor preparation and secure termination to prevent arcing or loose connections. Confirm box fill calculations comply with NEC Article 314 before installation.
