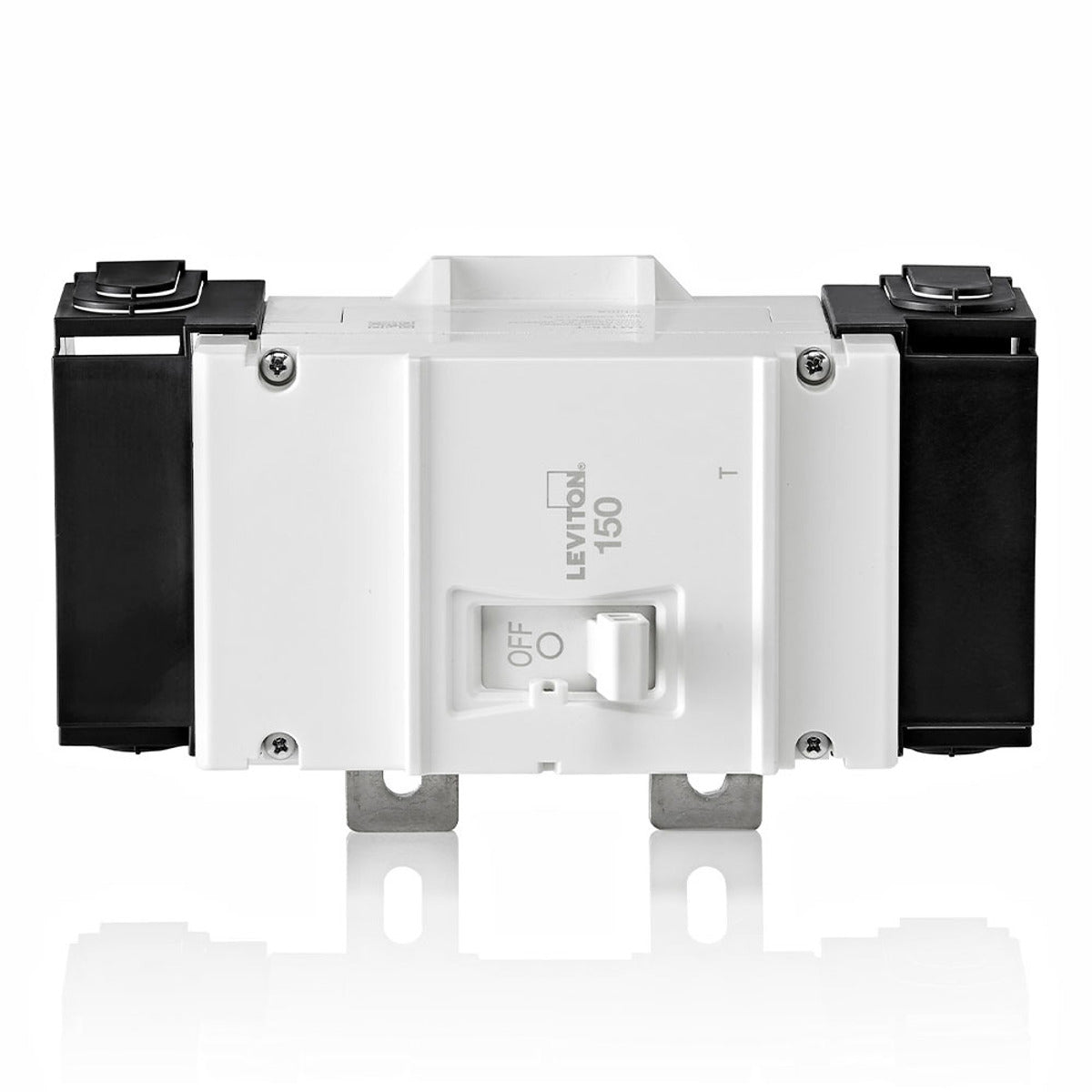

Leviton LM150-T Thermal Magnetic Main Circuit Breaker 120/240 V 150 Amp 22 kA Interrupt 2-Poles

Product Description

The Leviton LM150-T is a thermal magnetic main circuit breaker designed for 120/240 volts with a 150 amp rating. It features a 22 kA interrupt capacity and operates using thermal magnetic trip technology. This circuit breaker is suitable for various electrical applications where reliable short circuit protection is necessary.

• Rated at 150 amps for heavy-duty applications
• 22 kA interrupt rating for effective protection
• Compatible with wiring from six AWG to three hundred MCM copper or aluminum

Product Highlights

This circuit breaker ensures safety and reliability in electrical installations and conforms to various standards.

Product Information

Standard Information

• Voltage Rating: 120/240 VAC
• Amperage Rating: 150 Amp

Technical Specifications

• Catalog Number: LM150-T
• Trip Type: Thermal Magnetic
• Number of Poles: 2
• Interrupt Rating: 22 kA
• Operating Temperature: -40C to +70C
• Wire Size: 6 AWG - 300 MCM Cu/Al
• Manufacturer: Leviton
• Country of Origin: China
