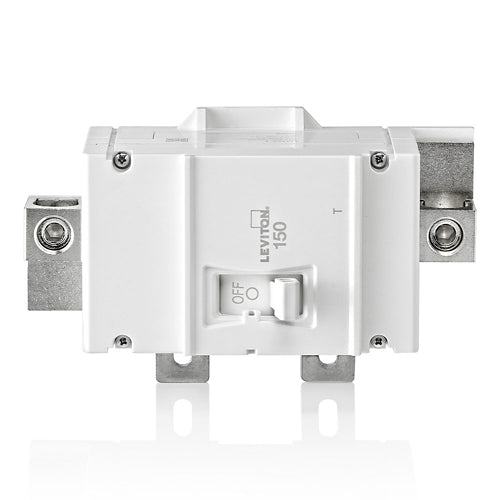

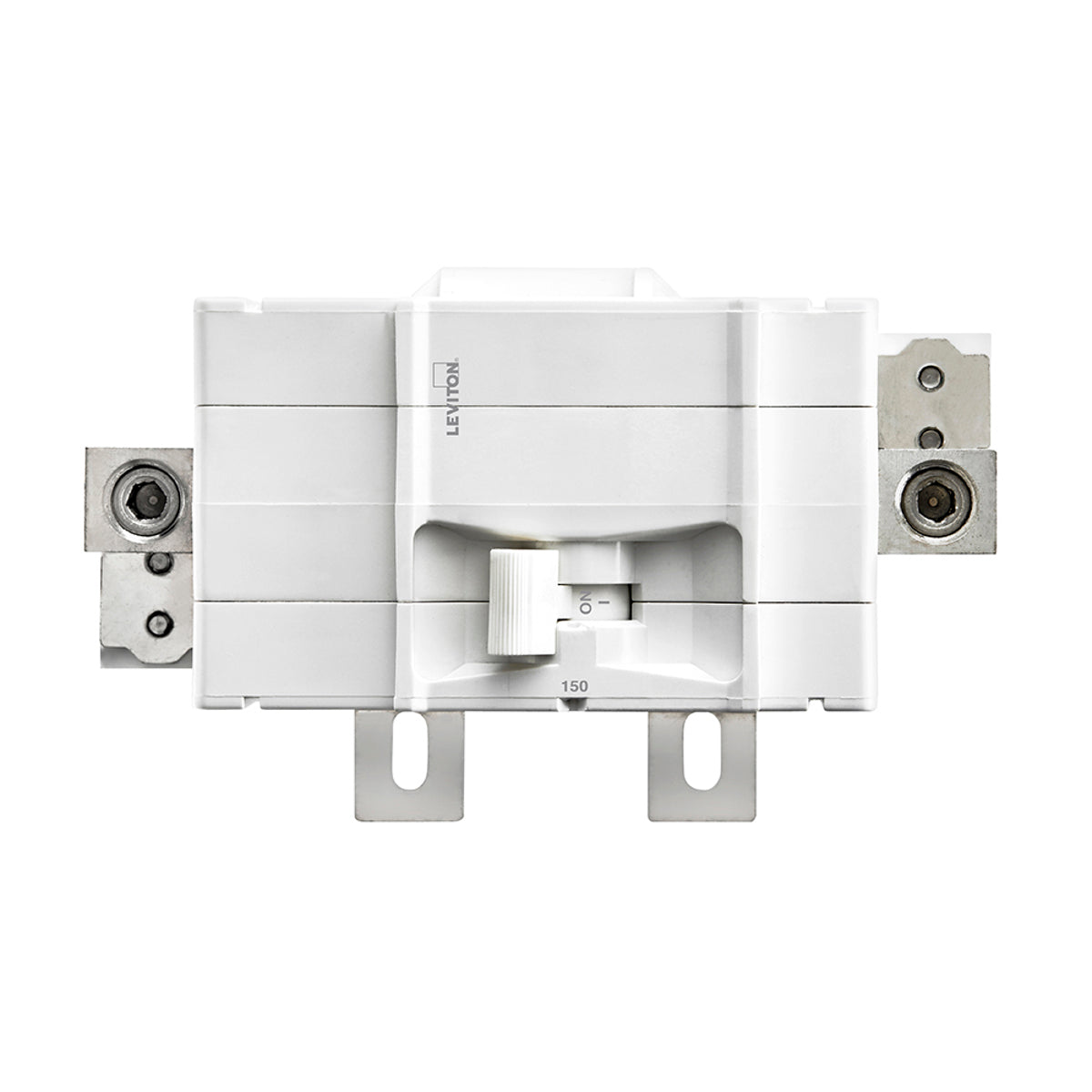

Leviton lm150 Main Breaker 150A

Product Description

The LEVITON LM150 is a 150A 2-Pole Main Circuit Breaker with Hydraulic Magnetic Trip Technology. Operating at 120/240V with a 22kA Interrupt Rating, it is designed for load center applications. Precision trip technology ensures operation from -40°C to 85°C without re-rating. Designed for Leviton Load Centers only.

• Hydraulic Magnetic trip technology ensures operation from -40°C to 85°C without re-rating.
• Suitable for applications up to 60A when using copper wire or 50A when using aluminum wire.
• Designed for Leviton Load Centers.

Product Highlights

The LEVITON LM150 is a reliable main circuit breaker for load center applications, featuring hydraulic magnetic trip technology and a wide operating temperature range.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LM150
• Country of Origin: China

Technical Specifications

• Type: Main
• Brand: Leviton
• Current: 150 Amp
• Voltage: 120/240 Volt
• Amperage: 150 A
• Product UPC: 07847781608
• 12-Digit UPC: 078477816080
• Applications: Load Centers
• Number of Poles: 2 Pole
• Country of Origin: China
• Short Circuit Current: 22 kA
• Catalog Number: LM150
• Manufacturer: LEVITON
• Made in USA: No
• Mounting: Panel Mount
• Standard: UL 489
• GTIN: 00078477816080
• Item Type: Main Circuit Breaker
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 22 kA
• Mounting Type: Bolt-On/Panel
• Temperature Rating: -40 to 85 deg C
• Trip Type: Hydraulic Magnetic
• Wire Size: 6 AWG to 300 kcmil
• Breaker Technology: Hydraulic Magnetic
• Wiring: 6 AWG - 300 MCM Cu/Al
• CSA-C22.2 No. 5-02: Yes
• EMC Compatibility: Yes
• FCC: Yes
• RoHS: Yes
• UL 489: Molded Case Circuit Breakers
• Operating Temperature: -40C to +70C
• Maximum Amperage (A): 150 A
