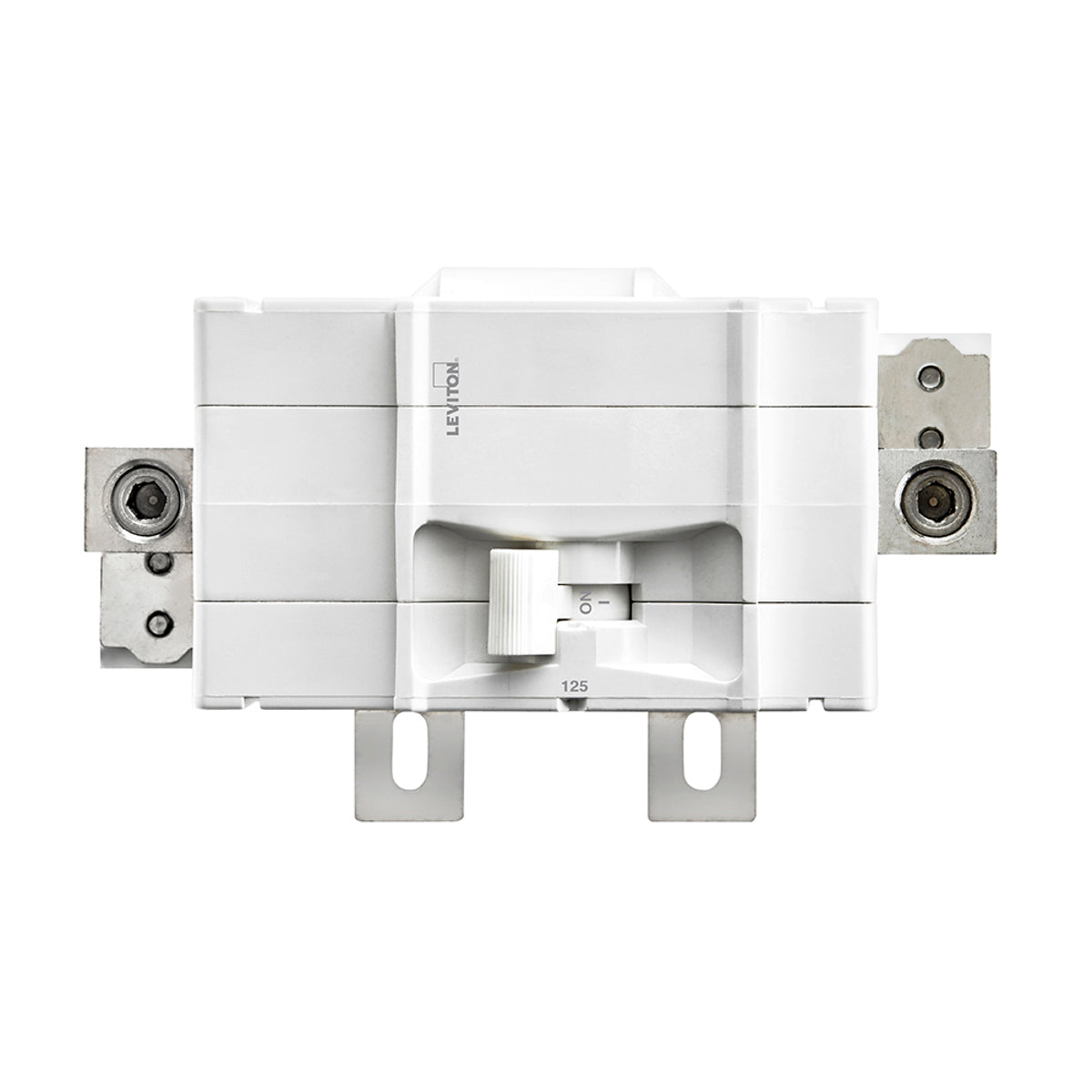

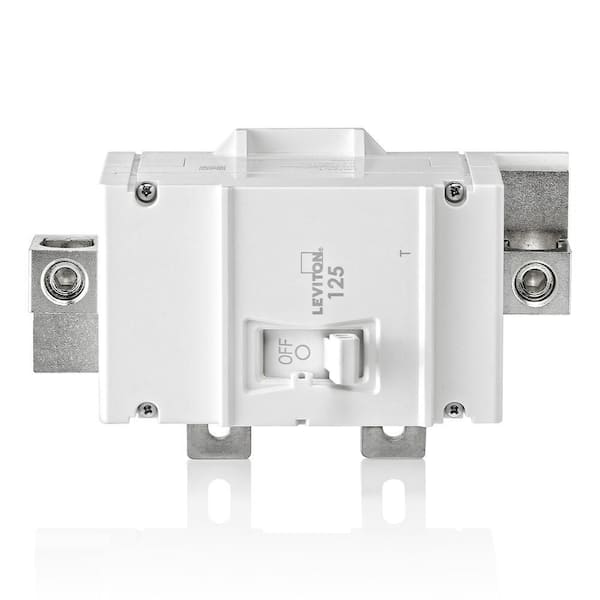

Leviton LM125 Main Circuit Breaker 2-Pole 125 Amp 120/240 VAC

Product Description

The LEVITON LM125 is a 2-pole main circuit breaker with a 125 amp current rating and a 120/240 VAC voltage rating. Designed for load center applications, it provides overload and short circuit protection for your home electrical system. It is designed for use with Leviton load centers.

• 2-Pole
• Current Rating: 125 Amps
• Voltage Rating: 120/240 VAC

Product Highlights

Main circuit breaker designed for load center applications with 125A and 120/240 VAC.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LM125
• Country of Origin: China

Technical Specifications

• Catalog Number: LM125
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: China
• Made in USA: No
• Application: Load Centers
• Current Rating: 125 AMPS
• Mounting: Panel Mount
• Number of Poles: 2
• Standard: UL 489
• UPC: 078477816073
• GTIN: 00078477816073
• Item Type: Main Circuit Breaker
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Interrupt Rating: 22 kA
• Mounting Type: Bolt-On/Panel
• Temperature Rating: -40 to 85 deg C
• Trip Type: Hydraulic Magnetic
• Wire Size: 6 AWG to 300 kcmil
• Short Circuit Current Rating: 22 KA
• Type: Main
• Wiring: 6 AWG - 300 MCM Cu/Al
• CSA-C22.2 No. 5-02: Yes
• EMC Compatibility: Yes
• FCC: Yes
• RoHS: Yes
• UL 489: Molded Case Circuit Breakers
• Maximum Amperage (A): 125 A
• Circuit Breaker Type: Standard
• Smart Home Compatibility: Not Smart Home Compatible
• Operating Temperature: -40C to +70C
• Breaker Technology: Hydraulic Magnetic
