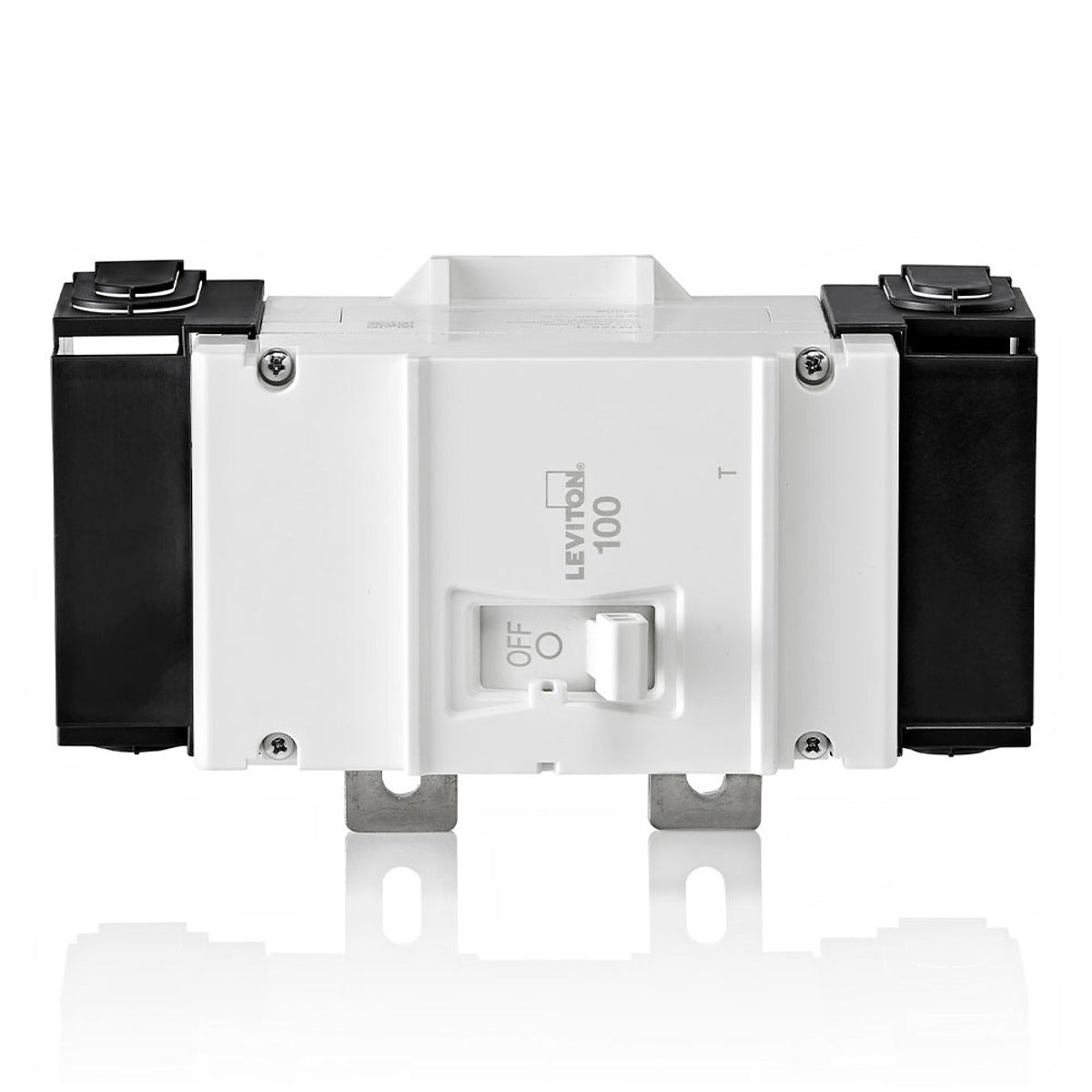

Leviton LM100-T Thermal Magnetic Main Circuit Breaker 120/240 V 100 Amp 22 kA Interrupt 2-Poles

Product Description

The Leviton LM100-T is a thermal magnetic main circuit breaker rated for 120/240 volts and 100 amps. It features a 22 kA interrupt capacity and is designed with two poles for enhanced safety and reliability. This breaker provides overload and short circuit protection, making it suitable for various applications in residential and commercial electrical systems.

• Provides overload protection for your electrical system
• Compatible with Leviton Load Centers
• Operates in a wide temperature range from -40C to +70C

Product Highlights

The LM100-T circuit breaker supports wiring sizes from six AWG to 300 MCM for copper or aluminum wires. It meets key electrical standards, including CSA and UL certifications, ensuring compliance and safety.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer Part No: LM100-T

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 Amp
• Number of Poles: 2
• Interrupt Rating: 22 kA
• Temperature Rating: -40C to +70C
• Wire Size: 6 AWG - 300 MCM Cu/Al
• Country of Origin: China
• Standards & Certifications: UL 489, CSA-C22.2 No. 5-02
