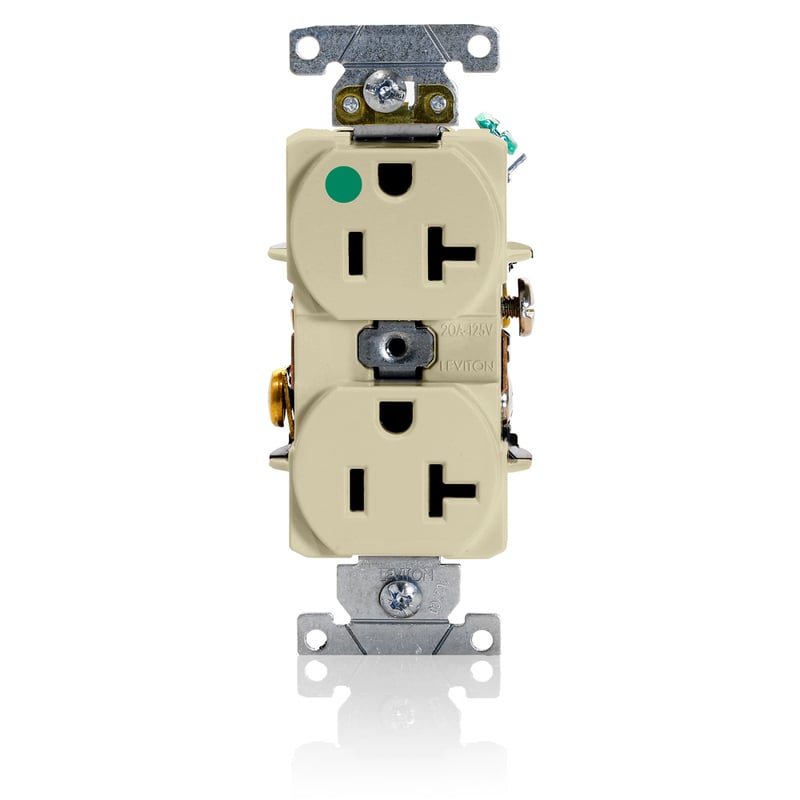

Leviton LEV 8300-HI Straight Blade Receptacle 20 Amp 125 Volt (Duplex) 8300-H

Product Description

Leviton LEV 8300-HI is a hospital-grade straight blade duplex receptacle rated 20 A and 125 V. It provides a NEMA 5-20R configuration with self-grounding design and supports back and side wiring for 14�10 AWG conductors. Constructed of a PBT polyester blend/thermoplastic body with a galvanized steel strap and phosphor bronze contacts, it is rated for -40 to 60 �C and meets UL 498, CSA C22.2, and NOM standards.

• Hospital-grade duplex receptacle, NEMA 5-20R, 2-pole 3-wire, 20 A 125 V
• Self-grounding with phosphor bronze contacts and galvanized steel strap; back and side wiring for 14�10 AWG
• PBT polyester blend/thermoplastic body, -40 to 60 �C temperature rating, UL94 V-2 flammability; UL 498, CSA C22.2, NOM approvals

Product Highlights

Hospital-grade 20 A 125 V duplex receptacle; self-grounding, back/side wired; -40 to 60 �C; UL 498/CSA C22.2/NOM.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LEV 8300-HI
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: LEV 8300-HI
• Brand: Leviton
• Product Type: Straight blade receptacle (duplex)
• Voltage Rating: 125 V
• Current Rating: 20 A
• Configuration: NEMA 5-20R
• Poles: 2
• Wires: 3
• Ground Type: Self-grounding
• Material: PBT polyester blend/thermoplastic
• Contact Material: Phosphor bronze
• Strap Material: Galvanized steel
• Wiring: Back and side wired
• Grade: Hospital (heavy duty)
• Face: Smooth face
• Temperature Rating: -40 to 60 �C
• Flammability Rating: V-2 per UL94
• Standards/Approvals: UL 498, CSA C22.2, NOM
• Applicable Standard: ANSI C73, NEMA WD-6
• Dimensions: 4.06 in H x 1.51 in W x 1.18 in D
• Wire Size: 14-10 AWG
• Dielectric Strength: 2000 V (Min.)
• Phase: 1 Phase
• Country of Origin: MEX
